Lightolier COIL CORD CLAMP-ON MONOPOINT Instructions

v
READ AND UNDERSTAND THESE INSTRUCTIONS BEFORE INSTALLING FIXTURE
INSTRUCTION SHEET NO.
Thisfixtureisintendedforinstallation inaccordance with the NationalElectrical C odeandlocalregulations.
Toassure
full compliance with local codes and regulations, check with your local electrical inspector before
installation. To prevent electrical shock, turn off electricity at fuse box before proceeding.
IS:6196
Retain these instructions for maintenance reference.
A1294
Page 1 of 2

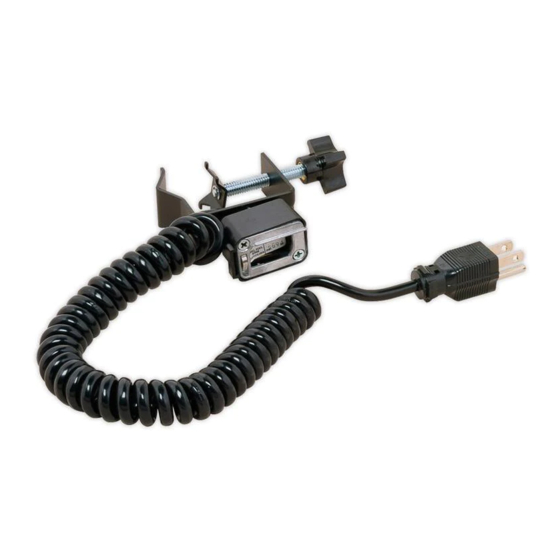

INSTRUCTIONS FOR ATTACHING COIL CORD CLAMP-ON MONOPOINT
FOR USE WITH LIGHTOLIER TRACK FIXTURES ONLY
ATTACHING COILEDCORDCLAMP-ON MONOPOINT
TIGHTENING KNOB
TO PIPE
OR PIPE STRUCTURE
This CLAMP is designed to mount on round pipe, pipe structures,
PIPE OUTSlOE
or round supports. Secure the CLAMP to structure by tightening
DIAMETER 5/8" TO 2"
the TIGHTENING KNOB and the body allowed to face downward
RECOMMENCED
CLAMP
to minimize
force required to support I_ytespots (Fig. 1). A (3)
prong 120V, 60 Hz, grounded receptacle is required to energize
the unit,
MONOPOINT
AllACHING LYTESPOTWITH "T' ADAPTORTO COIL AOAPTOR
CORD
CLAMP
FIG. 1
1. Position LEVER as shown in Fig. 2,
2. Align BEAD on MONOPOINT ADAPTOR with GROOVE in "T"
adaptor, see Fig. 2 (If BEAD is NOT aligned, a potential hazard
may result). Rotate LEVER 90 degrees to secure Lytespot.
3. To remove !_ytespot: Hold fixture and rotate LEVER 90 degrees
(Fig. 3).
CAUTION-
INJURY TO PERSONS
AND DAMAGE TO
THE LAMP AND/OR MOUNTING SURFACE MAY RESULT
IF THE LAMP IS PULLED FROM THE SURFACE. TO
co
REDUCE THE LIKELIHOOD OF SUCH INJURY OR
DAMAGE, MOUNT ONLY ON A SURFACE THAT IS
MECHANICALLY SOUND.
GAS
FIG.
2
GROUNO
,,
u
FIG. 4
FIG. 3
1-I
C3H TC> L IE R" E~~~~f~;,N~~
'T" ADAPTOR (lDIA. SHAIT)
JSEDWITHCAT.NO.S 6 435&
BOX ADAPTOR
7599
z
E
NOTE:
Not designed to work with
COIL CORD CLAMP-ON MONOPOINT
