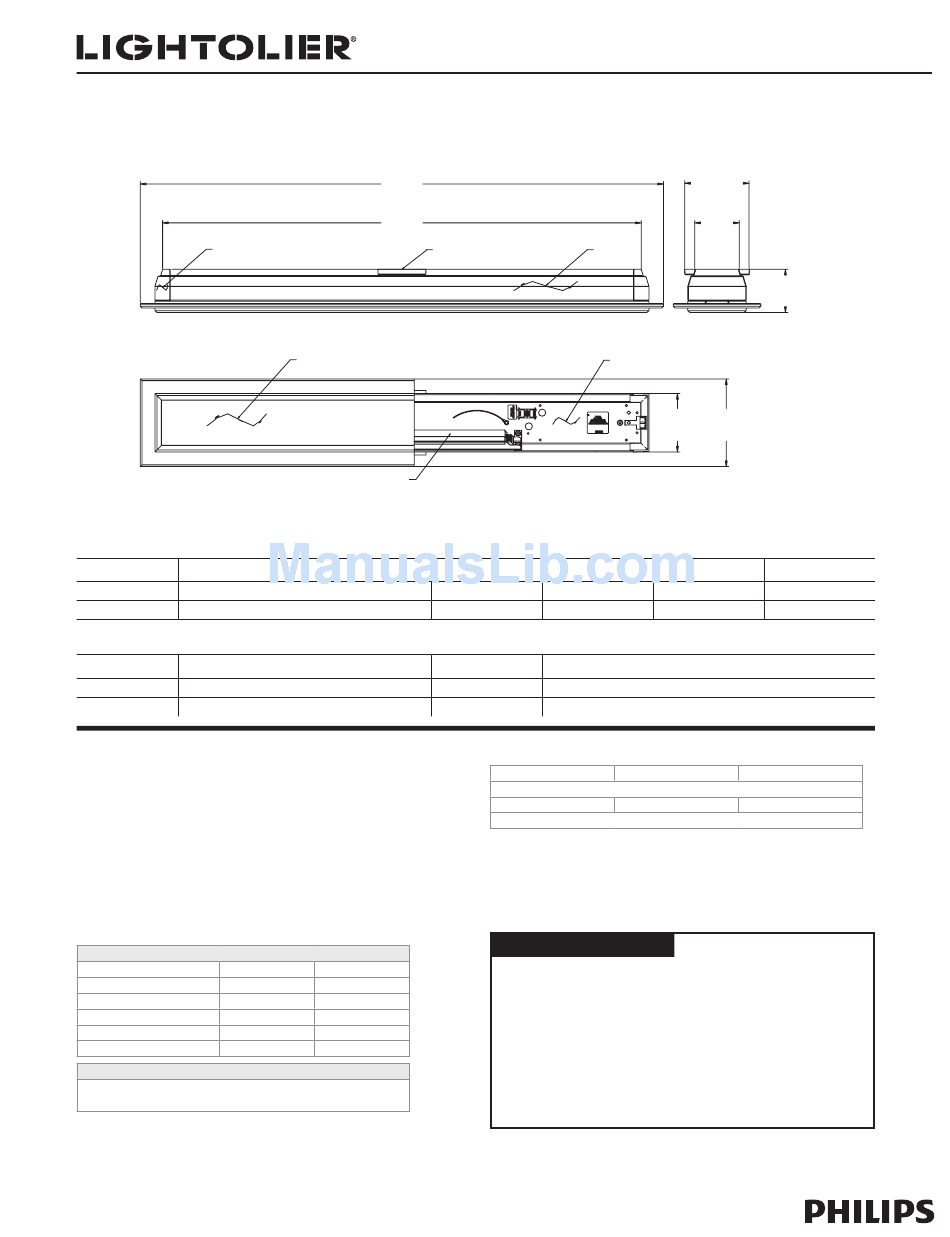

Philips Brisa FP21U Specification

Page 1 of 2
Fixture Ordering Information
Catalog No. Description
FP21U
Linear Planar Surface Mount
FP21UEM
Linear Planar Surface Mount w/Emergency
Diffuser Ordering Information
Catalog No. Description
FPA2 Acrylic Planar Diffuser
FPG2
Glass Planar Diffuser
Features
1. Housing Ends: Die-cast aluminum.
2. Housing Sides: Extruded aluminum.
3. Back Pan: Stamped 18ga. (0.048") sheet metal.
4. Diffuser: Planar clear glass with opal diffuse glass or planar clear acrylic
with opal diffuse acrylic.
5. Junction Box Cover: (2) Die-cast aluminum, easy installation
(provided with luminaire).
6. Fixture Mounting Plate: Mounts directly to a 4" octagonal J-Box
(Not Shown in Drawing).
Electrical
7. Ballast
A. Electronic 120-277V
Voltage
Total Input Watts
Max. Line Current (Amps)
Power Factor
THD
Min. Starting Temp
B. Emergency
Bodine LP550 emergency battery pack with integral tests light and
switch.
8. Luminaire-Ballast Disconnect: Meets NEC 410.130(G)
and CEC Disconnect Requirements.
Lightolier is a Philips group brand
36 11/16"
[932mm]
33 9/16"
[853mm]
1
4
120V 277V
25W 25W
0.21A 0.10A
0.98 0.90
20% 20%
0°F, -18°C 0°F, -18°C
Brisa Linear Planar Surface Mount
™
Wall/Ceiling Mounted T5 Fluorescent ADA Compliant
5
7
Finish Wattage
Satin aluminum 21W
Satin aluminum 21W
Finish Dimensions (Nominal)
Opal 5" X 36"
Opal 5" X 36"
Lamping (by others)
General Electric
F21W/T5/*/ECO
*Manufactures Color Temperature Designation
Finish
Satin Aluminum
Labels
cULus Listed. Suitable for Damp Locations.
ULus Listed, Dry Locations only for Emergency Units.
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2009 Philips Group • B0209
4 9/16"
[115mm]
3"
[76mm]
2
[76mm]
3
4 1/8" 6 1/8"
[104mm] [156mm]
Volts Lamp
120-277V (1) T5
120-277V (1) T5
Osram/Sylvania
(1) 21W T5 Linear Fluorescent
FP21/* F21T5/*/ALTO
Type:
FP21U
3"
Philips
