Philips GreenUp Wellglass BY200P Series Mounting Instruction

GreenUp Wellglass/ LED平台灯
BY200P
Mounting instruction/ 安装说明
Product Type
产品型号
BY200P LED12 B-W/CW PSU
BY200P LED12 B-W/NW PSU
BY200P LED25 B-W/CW PSU
BY200P LED25 B-W/NW PSU
BY200P LED12 L-B/CW PSU
BY200P LED12 L-B/NW PSU
BY200P LED25 L-B/CW PSU
BY200P LED25 L-B/NW PSU
BY200P LED40 L-B/CW PSU
BY200P LED40 L-B/NW PSU
1

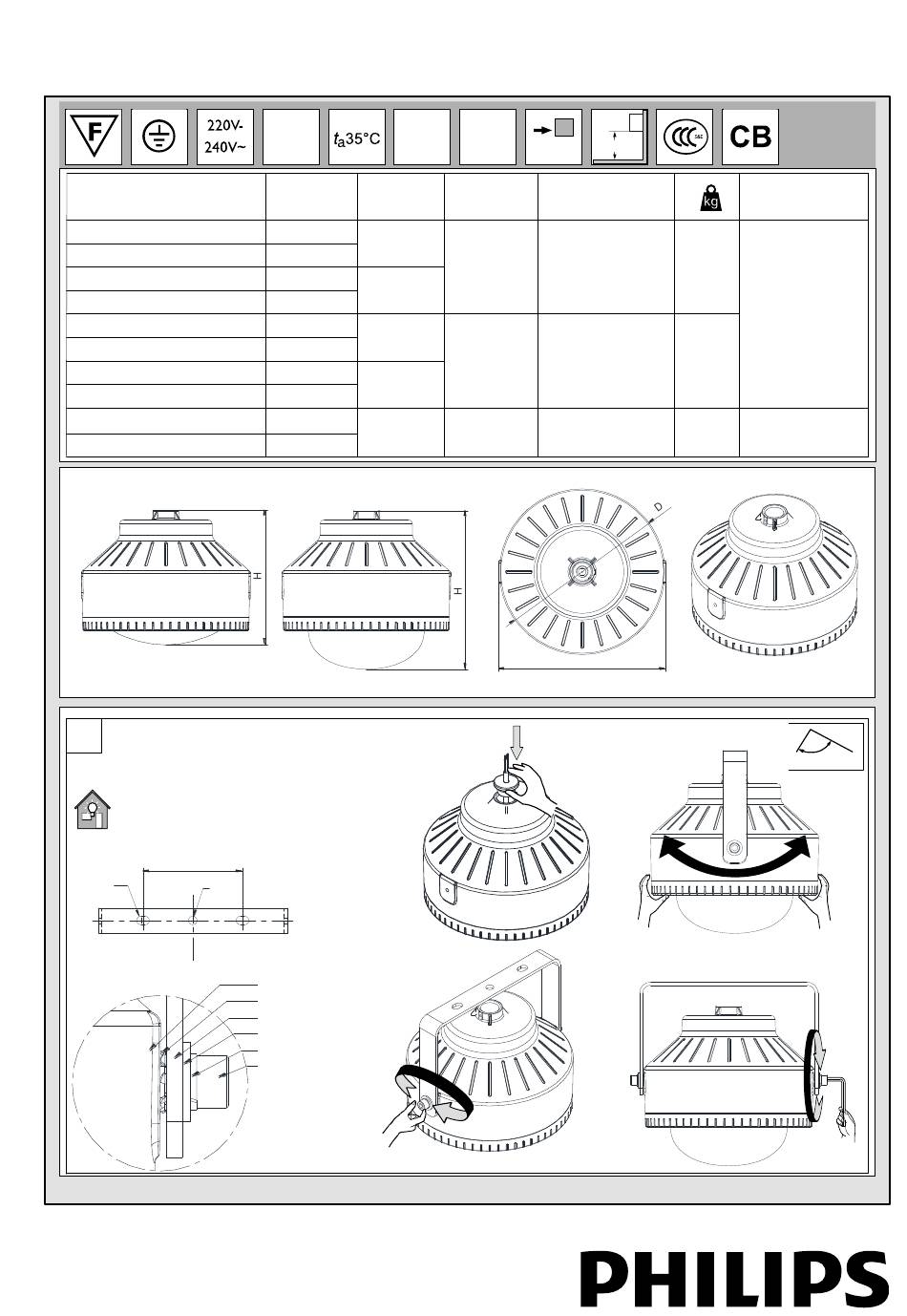

Mounting/灯具安装
Bracket Mounting/支架安装
Bracket mounting is used for indoor only
支架安装仅限室内使用
Mounting hole/安装孔位
120
Ø10.5
Ø10.5
Philips (China) Investment Co., Ltd.
Address: No. 1602-1605, No. 218 Tianmu W Rd, Shanghai
Postalcode: 200070
飞利浦（中国）投资有限公司
地址：中国上海市天目西路218号1602-1605
邮编：200070
50/60
IP65
Hz
CCT
Power
色温 系统功率
6500K
15W
4000K
6500K
27W
4000K
6500K
15W
4000K
6500K
27W
4000K
6500K
38W
4000K
1. Mounting the grommet to the
screw hole
安装橡胶塞至完全堵塞螺纹孔
2. Mounting the bracket kit
安装支架套件
Housing/壳体
Tooth washer/齿形垫圈D6
Bracket/支架
Flat washer/平垫圈D6
Spring washer/弹簧垫圈D6
Screw/内六角螺钉M6
S.Cx
WF2
3~5m
0.03㎡
Dimension
Optics
尺寸D*W*H（mm）
配光
Batwing/
ø 215× 218× 174
蝙蝠翼型
Lambertian/
ø 215× 218× 205
朗伯型
Lambertian/
ø 215× 218× 255
朗伯型
W
3. Adjust the mounting angle
调整至需要的角度
4. Lock screws with Allen key-5
用内六角扳手GB/T5356-5锁紧螺钉
444170095312
4441 700 95311
Accessory
选配件
2.5
BY200Z MB/支架组件
BY200Z WG/防护网组件
2.3
BY200Z MB/支架组件
2.7
BY200Z WG L/防护网组件
160º
8Nm
