Philips Lytespan LLACTW Specification

Page 1 of 2
7.02"
178.2mm
Catalog No.
LLACTWWH
LLACTWBK
LLACTWAL

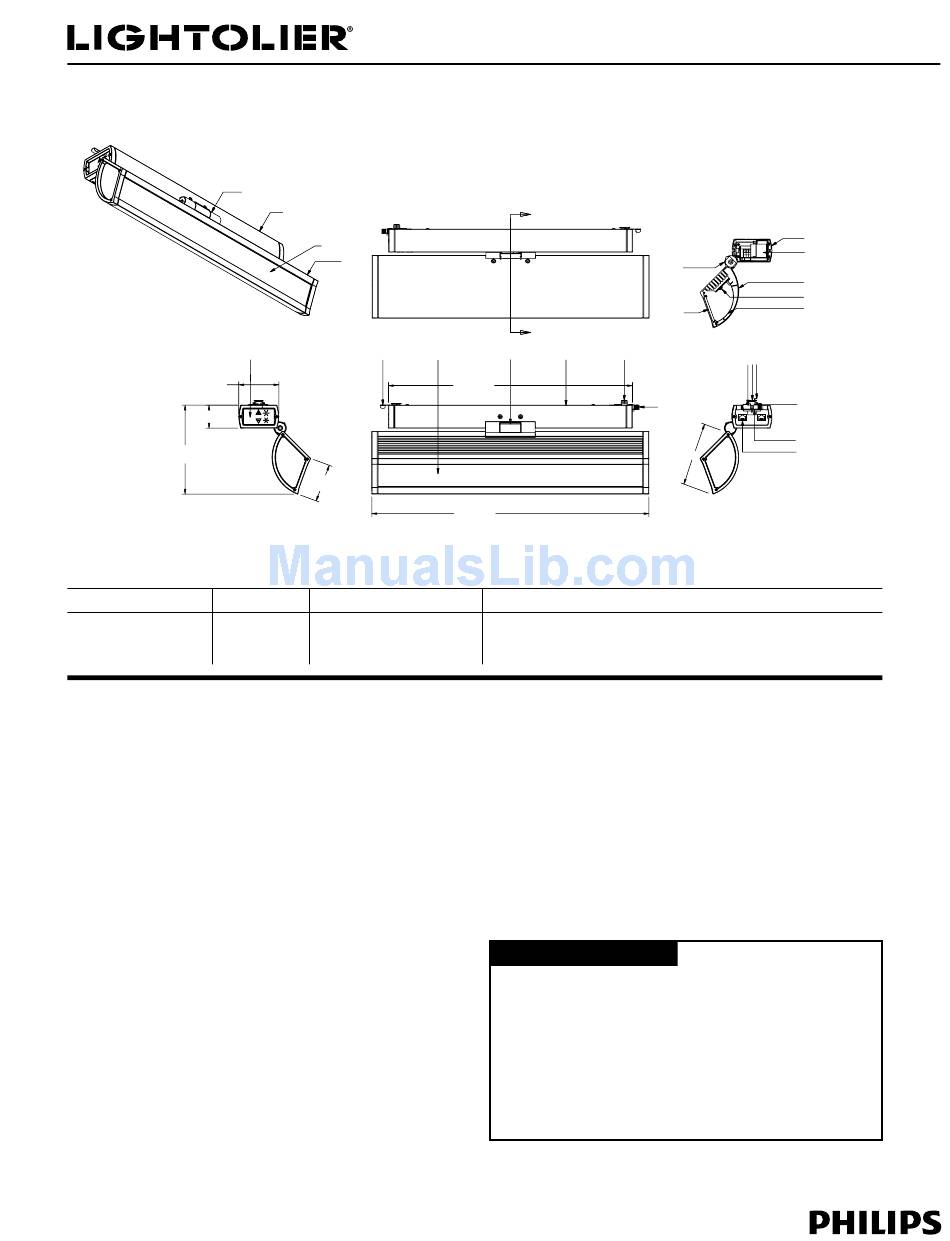

Features
1. Lytespan Attachment Fitting: Molded polycarbonate. Integral color. Fitter
twists into the track. May rotate up to 180° for alignment with track bead.
2. Movable Contact: Solid brass. Extends for connection to 2nd circuit when
using Advent track.
3. Ground Contact: Solid brass
4. Polarity keyway
5. Locking Lever: Steel. Provides secure mechanical attachment of unit to track.
6. Pivot Mounting: Die-cast aluminum
7. Power Control Module: Extruded aluminum. High power factor power
supply unit. Thermally protected, Class 2, short circuit protection. Solid state
controller and driver. Providing power and data to accurately control LED array.
Thermally protected.
8. Synchronizer: Printed circuit board (PCB) mounted. Synchronizes two or
more luminaires when used with dynamic light shows without the need of
data cables.
9. 4-Button Controller: 4 button interface allows selection of light show and
variation of the light intensity. Molded polycarbonate. Digital.
10. DMX Connector: Two RJ45e jacks mounted on printed circuit board (PCB),
for DMX connection and an exit for daisy chain mounting. Uses standard CAT5
round 8 conductor stranded twisted pair shielded network cables.
11. Pivot w/Lock: Die-cast aluminum. Adjusts the aiming angle up to 120° with
a locking screw, using a 3/16 Allen key tool.
12. LED Optic Housing: Extruded aluminum. Integral heat sink and color mixing
chamber.
13. LED Array: 48 High-power linear lighting emission diodes (LED) red, green,
blue and amber (RGBA). Thermally protected with color sensor for accurate
color adjustment for life.
Lightolier is a Philips group brand
11
7
15
14
9
3.16"
80.4mm
1.82"
46.1mm
2.99"
76mm
Finish Specifications
White 120V - 60Hz
Black
Aluminum
Lytespan Track Lighting
A
A
5 12 11
19.25"
489mm
21.88"
555.8mm
Mounting
Lytespan Radius, Basic or Advent Track. Not compatible with monopoints,
multipoints, extension wands or sloped ceiling adapters. Not for use with
ProSpec Track.
Features (continued)
14. LED Optics: Asymmetrical MicroBlend technology ensures smooth
washing and color uniformity and minimizes undesirable color fringing.
15. Lens: Tempered glass, fine prisms provide additional mixing at the
aperture and minimizes the appearance of the individul RGBA sources.
Dimming
Not compatible w/dimmers.
Finish
All painted finishes are baked powder or enamel.
Labels
cULus, Certified for dry locations only.
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2008 Philips Group • A0708
ColorWash LED Adjustable Wall-Washer
11
15
7 1
6
5"
129mm
Type:
LLACTW
