Page 1 of 2
Top View
Flush Trim
Molded
(Molded
Trim Ring
trim ring removed)
Ceiling Cutout: 6 1/2" Dia.
Reflector Trims
784CLW
Specular Clear finish with white flange.
784CLP
Specular Clear finish with polished flange.
784CL
Specular Clear finish with molded trim ring (flangless).
784
Add suffix for other finishes (see options).

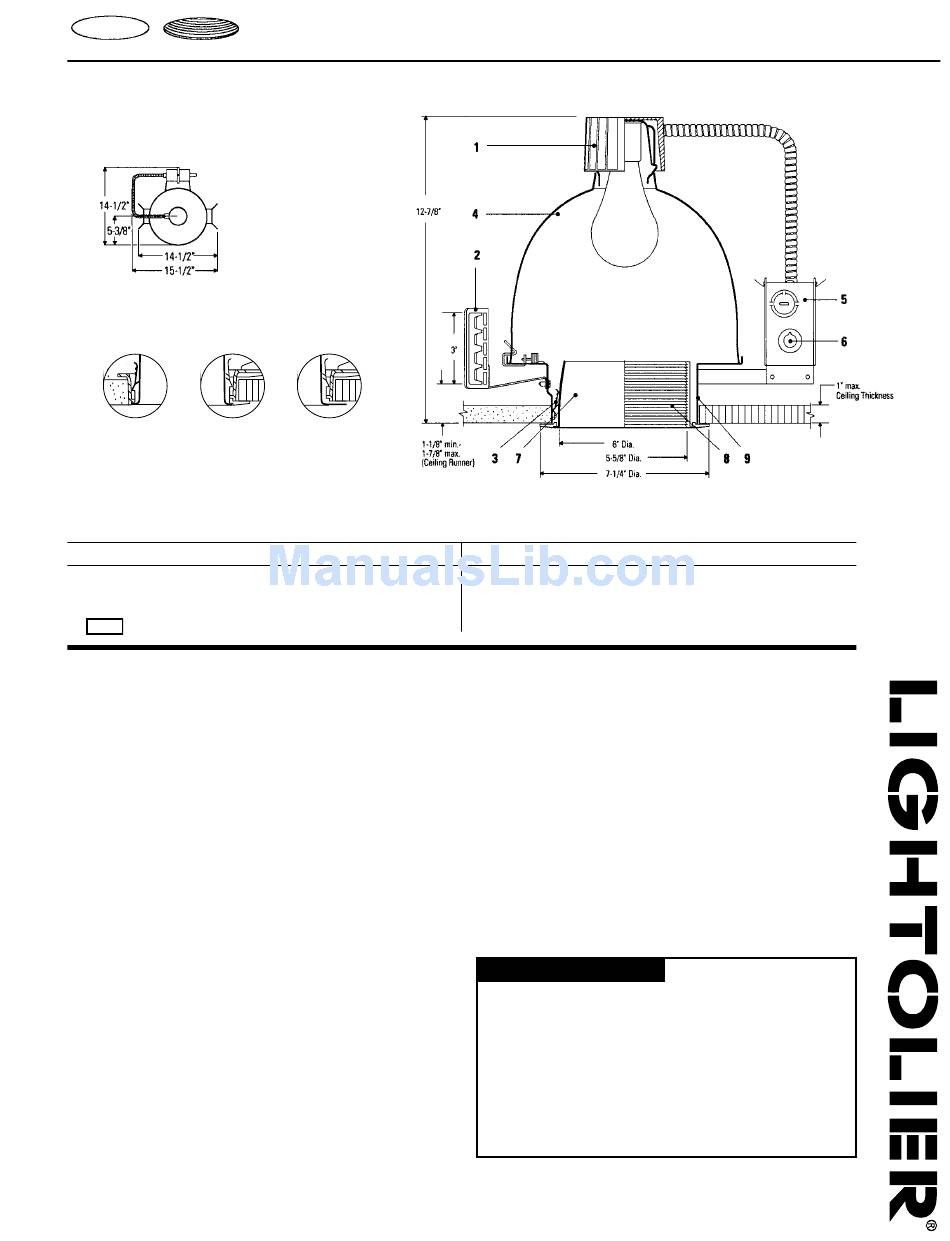

Features
1. Socket Cup: Die-cast aluminum cup effectively dissipates heat and assures
lamps maintain proper optical alignment to reflector. Snaps onto reflector
neck for easy tool-less installation. Contains medium base porcelain socket
with nickel plated screw shell wired and No 18 SF1 leads to J-Box.
2. Mounting Brackets: Adjust vertically from inside of fixture. Durable 16 ga.
steel construction. Use with standard 3/4" or 1 1/2" lathing channels (by oth-
ers), or Lightolier accessory mounting bars.
3. Retaining Springs: Precision tooled springs secure aperture mounting
frame for quick tool-less installation.
4. Reflector: Specular clear Alzak
®
upper reflector, retained by spring latches
for inspection and maintenance, top relampable.
5. Junction Box: 14 ga. steel, 4" x 3 1/2" x 2" box.
6. Thermal Protector: Meets NEC and UL requirements. Insulation must be
kept 3" away from fixture sides and wiring compartments and must not be
placed above fixture in a manner which will entrap heat.
7. Aperture Cone: 16 ga. Specular Alzak
groove. Available with white or polished flange or with removable white
molded trim ring (field paintable).
8. Multigroove Baffle: One piece seamless aluminum. Sharply detailed con-
centric rings with "sawtooth" profile, optical black finish. Permanently fas-
tened to specular clear reflector.
9. Mounting Collar: Die-formed steel painted in baked black enamel.
Other Reflector Finish Options
Comfort Clear Diffuse
CCD
Specular Black
Specular Gold
GD
Multi-Groove Baffle
(MG is only availabe w/ molded trim ring)
Flange Options
White
W
Polished Flange
P
Flangeless Leave Blank (molded trim ring)
Calculite
®
Incancescent Open Downlight
White or
Polished Flange
®
aluminum,or optical black multi-
BK
MG
6" Aperture A23 Ellipsoidal Reflector
Frame-In Kit
7784
Accessories and Options
18" Mounting Bars
1950 (set of 2)
27" Mounting Bars
1951 (set of 2)
T-Bar Anchor Clips
1956 (set of 4, for 1950 & 1951 bars)
Wood Joist Mtg. Bars
7994 (set of 2)
Sloped Ceiling Adapters
7920 (see SCA specification sheet)
Step Down Transformer
7997 (see separate specification sheet)
Chicago Air Plenum
LC (add suffix to Frame-in Kit)
Electrical
UL Listed for maximum of 8 No. 12, 75°C through branch circuit conductors, or
60°C supply conductors for end of run.
Labels
UL Listed for damp locations, I.B.E.W.
Alzak
®
is a registered trademark of ALCOA.
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
Lightolier
a Genlyte Thomas Company
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2002 Genlyte Thomas Group LLC (Lightolier Division) • A0902
784/7784
Lamp
A23 200W
Type:
www.lightolier.com
