Ref.
Pt. No.
1.
1750736
2.
1768971
3.
703-05791
4.
712-0240
5.
725-0157
6.
725-04246
7.
736-0171
Introduction
The cruise control kit is designed to allow the tractor op-
erator to maintain a desired "foot free" forward speed
in areas where constant speed changes are not re-
quired. The cruise control feature can only be operated
in the forward direction.
Installing the Cruise Control Kit
NOTE: Some installation procedures are more easily
performed from beneath the tractor. If equipped, the
mower deck may be removed from the tractor to im-
prove access.
Wire leads w/connectors needed to power the cruise
control magnet are provided in the tractor wire harness.
To install the cruise control kit, proceed as follows:
• Remove the plug from the right side of the dash
panel by sliding a thin flat edged tool beneath the
plug and prying upward. See Figure 1.
CUB CADET LLC P.O. BOX 361131 CLEVELAND, OHIO 44136-0019
PRINTED IN U.S.A.
Installation Instructions
759-04080 CRUISE CONTROL KIT
For Series 6000 Tractor Models

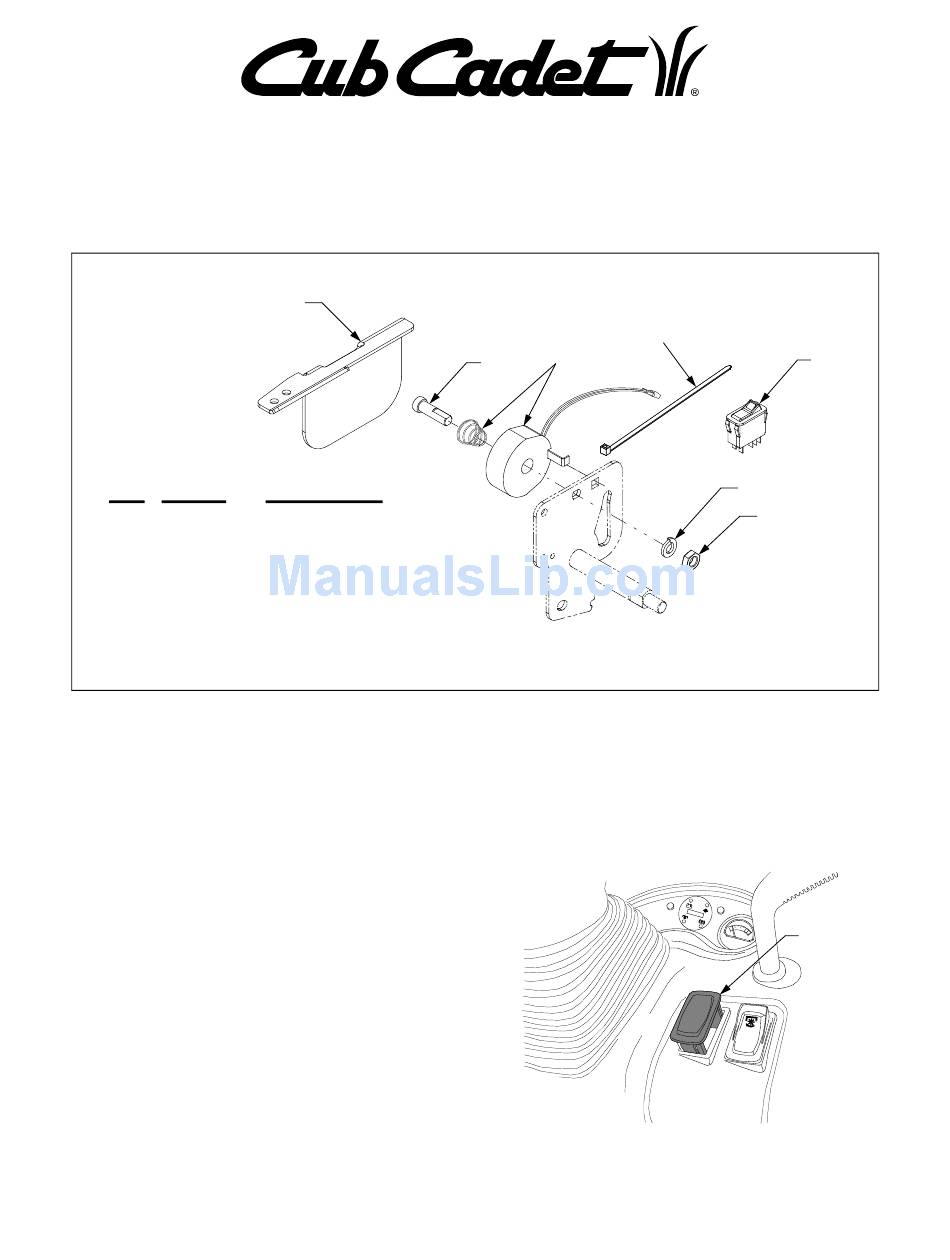

KIT COMPONENTS
3
Description
Special Screw
Magnet w/Spring Assy.
Cruise Latch Bracket
Hex Jam Nut, 7/16-20
Cable Tie
Cruise Switch
Lock Washer, 7/16"
2
1
NOTE: The wire harness connector for the cruise switch
may be connected to the dash panel plug. If so, carefully
pull the wire harness connector up through the dash
panel while removing the plug. If the wire harness leads
are not connected to the plug, it will be necessary to re-
move the dash panel insert.
1
5
6
7
4
Remove
Plug
Figure 1
FORM NO. 769-01718 (3/05)
Advertisement
Related Manuals for Cub Cadet 759-04080
Summary of Contents for Cub Cadet 759-04080
- Page 1 • Remove the plug from the right side of the dash panel by sliding a thin flat edged tool beneath the plug and prying upward. See Figure 1. Figure 1 CUB CADET LLC P.O. BOX 361131 CLEVELAND, OHIO 44136-0019 PRINTED IN U.S.A. FORM NO. 769-01718 (3/05)
- Page 2 • Remove the dash panel insert by removing the two Remove Screws screws and lifting the insert out (See Figure 2). • Locate the unused dash harness connector (with green(2), green w/white, red w/black, yellow w/ black, and violet wires) inside the dash panel. Lift Fender the connector up through the hole in the dash panel Cover...
- Page 3 • Insert the cruise latch bracket (Ref. 3) down Lock Washer Special Screw through the opening in the fender/running board so Tractor that its large plate area is against the left side of Spring Frame the magnet. See Figure 8. Hex Tapp Screw Cruise...
- Page 4 Setting The Cruise Control Disengaging the Cruise Control NOTE: Regardless of the method used, the indicator WARNING: Always use extreme caution light in the cruise switch will turn off when the cruise when operating the tractor with the control is disengaged. Simply depress the top of the cruise control engaged.
