Lightolier 6099 Specification

Catalog number:
Notes:
11
10

Ordering information

example: 6099WH
Catalog no.

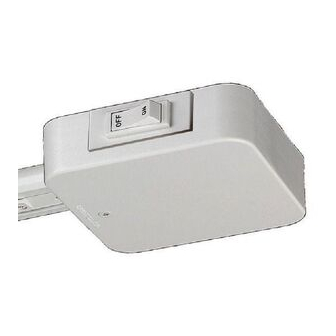

6099 Basic, Live End PowerTrip Kit

Features

1. Wire Cover: Plastic Polycarbonate. Includes code compliant warning
label against tampering with device.
2. Mounting Plate: .075 thick galvanized steel.
3. Round Knock Out: (2) 7/8 dia. knockouts for electrical feed.
Offset to accommodate grid ceiling runners.
4. Ground Terminals: (2) ground terminals for supply ground wire.
5. Rectangular Knock Out: Allows feeding from j-box with proper
UL area for splice inspection without removing connector from j-box.
6. Mounting Holes: (4) holes on 3.5 in. centers secure connector
to j-box or mounting surface.
7. Track Connector Screw Terminals: Each terminal accepts
(2) 12 or 14 ga. copper feed wires.
8. Basic Track Connector: Keyed to maintain proper polarity with track.
Installs into track providing electrical and mechanical connection.
9. Circuit Breaker: (Sold Separately). Limits the amount of electrical load
that can be placed on the circuit. Can be used as standard On/Off switch.
VA rating visible on breaker when installed.
10. Cover Mounting Screws: Tamper Resistant Pin Torx head steel screws
secure cover to plate. Color matches fixture color.
11. Tamper-proof Locking Screw: Mechanically secures connector into track.
Once installed the Tamper-proof Locking Screw can not be removed without
permanently damaging the track.
6099 January 4, 2013 Specifications are subject to change without notice.
© Koninklijke Philips Electronics N.V., 2010. All rights reserved.
Lytespan, Basic, Live End PowerTrip Kit
1 ³⁄ "
16
(30 mm)
1
4 ⅝"
(117 mm)
5
(132 mm)
5 ³⁄ "
16
(132 mm)
Finish Mounting
WH White Mounts directly to surface or to a 4" octagonal outlet box.
BK Black Connects to Basic Plain track units. Suitable for mounting to grid
ceiling runners. Can be used with stem mounted Basic track.
2
3
⁄ "
9
16
8
7

Electrical

Capacity is 120 volts, 60Hz. All Lytespan Track luminaires are polarized and
continuously grounded throughout. Electrical conductors are concealed in an
insulating liner. Intended for wiring to branch circuit building wire with ground.
All wiring must be in accordance with National and Local Codes.

Labels

U.L. listed.
Note: to assure full compliance with local energy codes
and regulations check with your local code official.
6099
Page 1 of 1
Type:
9
View with cover removed
6
5
4
Compatible Plug-In Breakers
Compatible with PLD power breakers.
Refer to PLD120 spec sheet.
Ordered Separately.
