Lightolier 8609 Specification

Catalog no. Mounting
8609 Recess in accessible ceiling. Insulation must be kept 3" away from
fixture sides and wiring compartment; and must not be placed above
fixture so as to entrap heat.

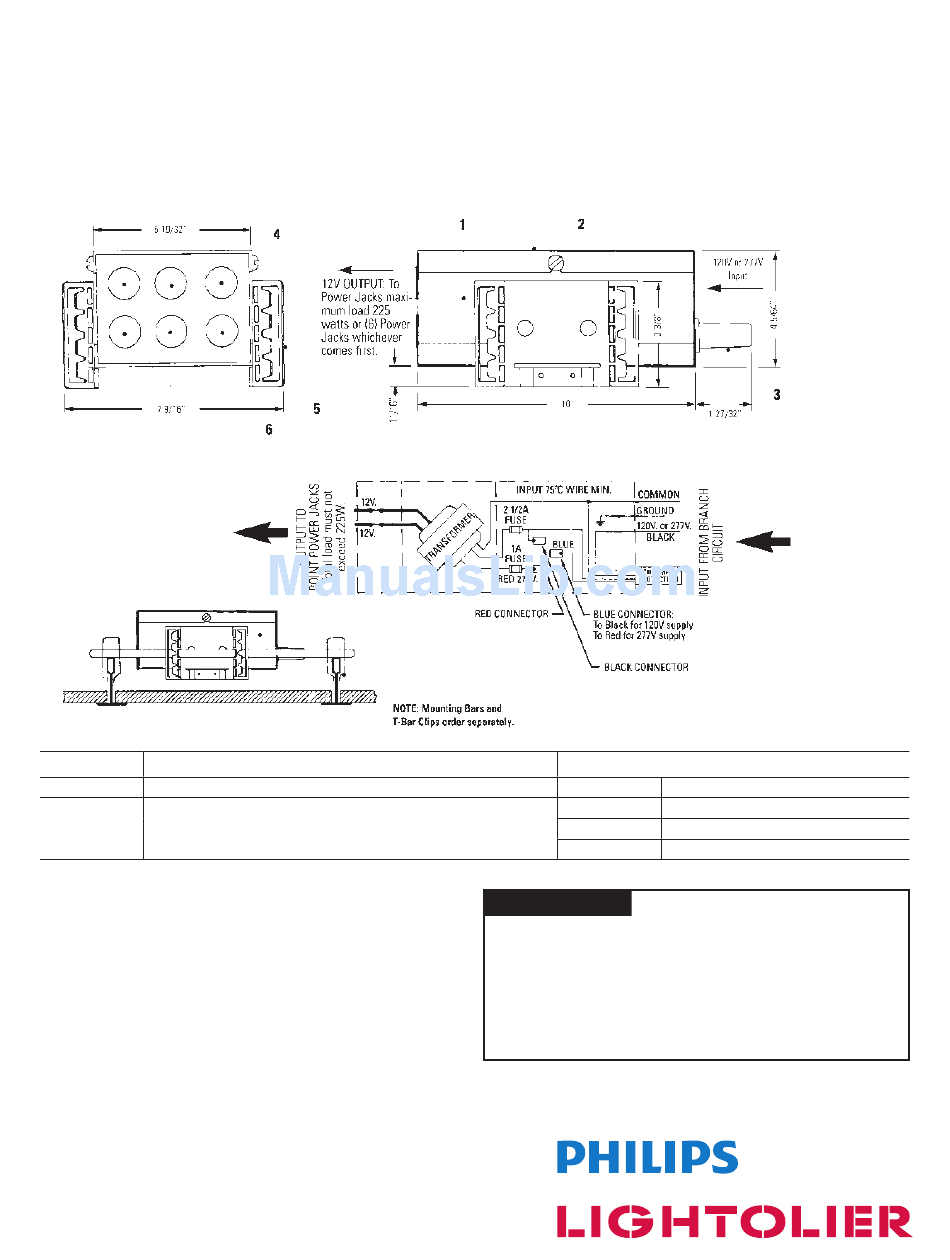

Features
1. Splice and transformer housing: 20 ga. (.036) steel.
2. Removable top: 20 ga. (.036) steel.
3. Thermal protector
4. Open hole: Used for first connection to Point Power Jack.
5. Mounting bar holders (2): Use with optional mounting bars.
6. 7/8" Knock outs (5): Use for additional connection to Point
Power Jacks
Electrical
Low voltage magnetic transformer, 120V or 277V input, 12V output,
powers any Point Power Jack fixture. The transformer is limited to
a total load of 225W or (6) Point Power Jacks, whichever is fulfilled
first. Thermally protected. Type Non-IC. Provided with replaceable
primary fuses. Use only dimmers specially rated for inductive loads (low
voltage fixtures equipped with magnetic transformers) such as Lightolier
Lytemode and Scenist systems and Lightolier dimmers carrying the
suffix VA.
Labels
UL; I.B.E.W.
Lytespan accent lighting system
LyteJacks 225W Remote transformer
Accessories (order separately)
Catalog no. Description
1950 18" Mounting bars (set of 2)
1951 27" Mounting bars (set of 2)
1956 T-Bar clips (set of 4)
Job Information Type:
Job Name:
Cat. No.:
Notes:
8609
Page 1 of 1
