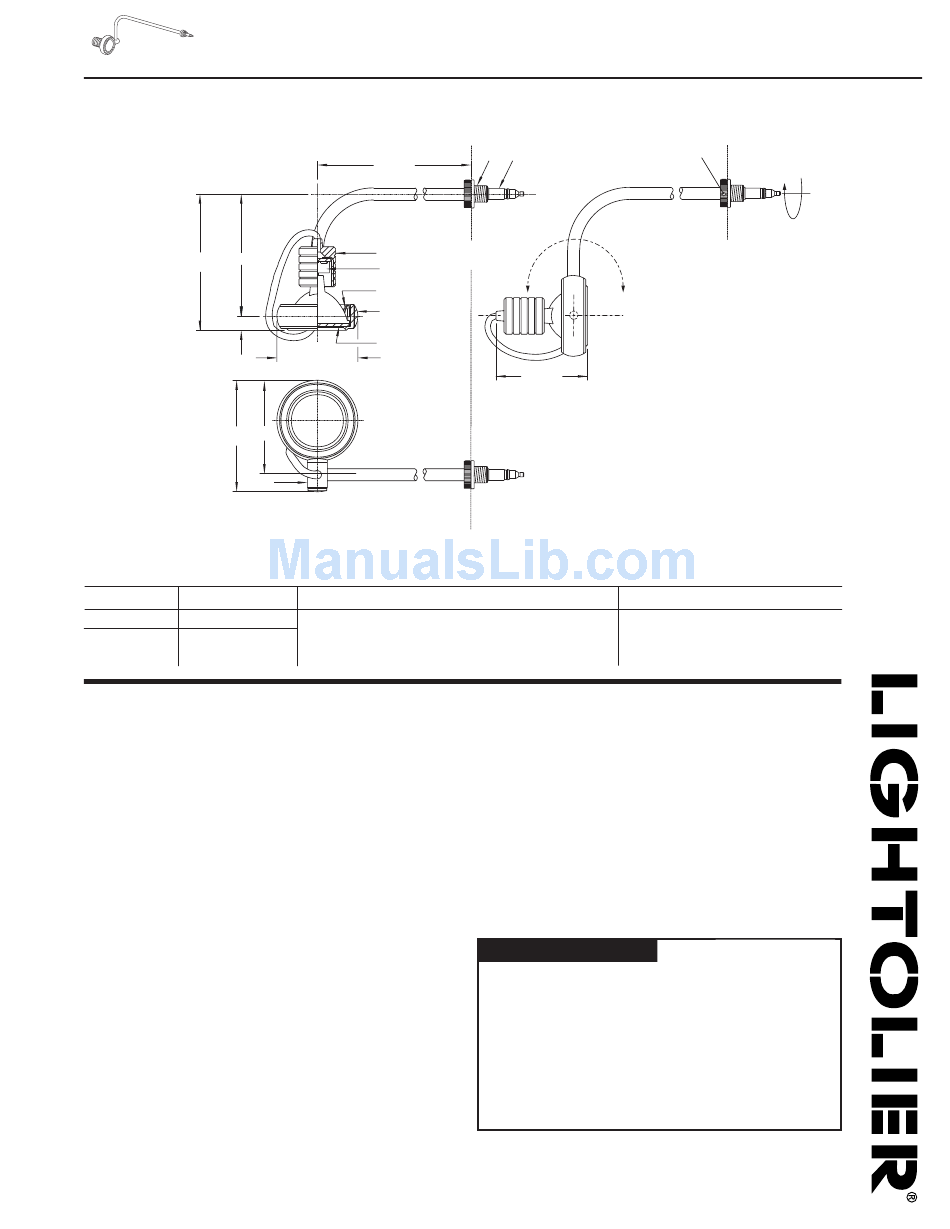

Lightolier Lytespan 8675BD12 Specification

Page 1 of 2
3 13/16"
4 1/4"
7/16"
3"
3 3/8"
Ordering Information
Catalog No. Finishes
8675BD12 WH Matte White
8675BD12 BK Matte Black
Features
1. Ring: die-cast aluminum with cool grip insulation band, a high temperature
silicone rubber which allows aiming adjustments while fixture is on.
2. Socket: bi-pin base ceramic socket, prewired with 18 ga.stranded Teflon
leads with fiberglass outer sleeve.
3. Male Jack Connector: mounted 3/8" dia. stainless steel stem plugs into
any 8600 Power Jack, allows for continuous horizontal rotation.
4. Tension Pivot Mount: die-cast aluminum. Allows for 180° vertical rotation.
5. Lamp Guard: tempered glass.
6. Spring: steel springs hold lamp and housing in place.
7. Socket Boot: high temperature insulated silicone rubber and aluminum heat
shield encases socket.
8. Stem lock: plastic bushing used to lock fixture into Power Jack.
9. Set screw: Locks horizontal rotation.
Finish
All painted finishes are baked enamel.
11 1/2"
POWER JACK
7
MATING SURFACE
2
6
1
5
2 1/2" DIA
4
Mountings
All Power Jacks
(Does not mount into
Extender Stems)
Lytespan ® Track Lighting
Display Jacks Sof-Tech
8 3
180˚ Vertical
Rotation
2 7/8"
Lamps
MR16 Bi-Pin
50W Max.
Options & Accessories
Accessory Holder
All 2" Color Filters
Prismatic Spread Lens
Beam Elongator
UV Filter
Beam Smoother
Hexcell Louver
Electrical/Dimming
For dimming information refer to Power Jack specification sheets.
Labels
UL
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
