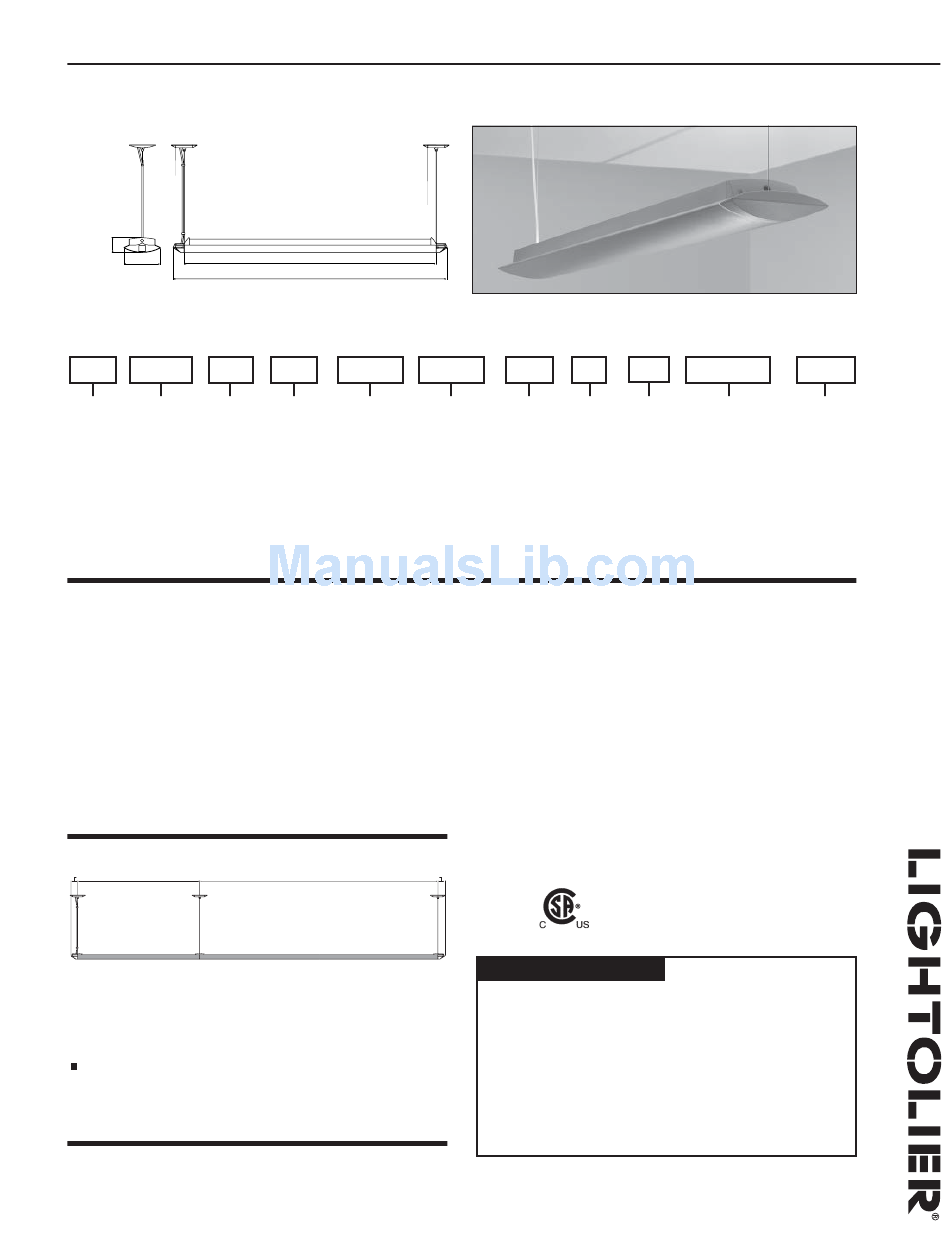

Lightolier AGU Specification

Page 1 of 2
2-7/8"
74mm
52-3/16" (1326mm) or 100-3/16" (2545mm)
6-15/16"
176mm
Ordering information
AG U 4
Family Type Luminaire
Length
AG: Agili-T U: Indirect 4: 4'
with Upper
8: 8'
Compartment
Note : Luminaire comes without end-caps
Features
• Indirect, 91% efficient using T5 lamp technology (1xF28T5).
• Ultra-Light construction (4' luminaire less than 12 lb / 5.5 kg) favors mobility, adds
installation and remodeling convenience.
• Wide indirect distribution for uniform ceiling luminance.
• Trouble-free luminaire-to-luminaire connectability and luminaire-to-end-cap installation.
• Special die-cast aluminum joining mechanism (patent # 6,769,784) providing continuous
trouble-free, simultaneous mechanical and electrical connections (plus network
connections on Agili-T Network version), as well as no-hassle end-cap installation.
• Built-in network connectors and wiring (Agili-T Network).
Construction
• One-piece aluminum extrusion
• Highly resistant composite plastic end-cap
• Optic made of highly reflective matte aluminum
Fixture lenghts & mounting locations
2-3/32" End-cap
48" (1219mm)
48" Luminaire
Pendants measure exactly 48" or 96" (plus end-caps) to facilitate installation.
** If electrical junction box is needed to connect emergency wiring, order AGEB, AGES or AGEO.
*** 18-gauge wire. Maximum of 10A per breaker. 2 circuits using 2 breakers with common neutral.
For maximum flexibility, DS & DN wiring options include continuous 2-circuit wiring: one circuit
▼
for upper compartment, one circuit for lower compartment (single and double compartment
luminaires can be mixed).
End-cap Row Joiners:
L: Order 1 Power Feed Suspension Kit and 1 Suspension Kit per luminaire + 1,
T: Order 2 Power Feed Suspension Kit and 1 Suspension Kit per luminaire + 1,
X: Order 2 Power Feed Suspension Kit and 1 Suspension Kit per luminaire + 2
Listed as a standard electrical box for through-branch wiring.
†
Consult your Lightolier representative for other adapter shapes.
††
LIGHTOLIER
A GENLYTE COMPANY
TECHNICAL INFORMATION: (978) 657-7600 - (978) 658-0595
631 AIRPORT ROAD, FALL RIVER, MA 02720 - (508) 679-8131
Lighting Systems Agili-T Pendant Indirect
48" (1219mm) or 96" (2438mm)
P GR DS
Mounting Housing Finish Wiring
P: Pendant GR: Titanium DS: Double-circuit
(Compatible WH: White DN: Double-
with Wall circuit Network-
& Furniture Ready
Mounting
DI: Single-feed
Systems)
Double-circuit
Network
DG: Group-feed
Double-circuit
Network
2-3/32" End-cap
96" (2438mm)
96" Luminaire
www.lightolier.com
1 28 UNV
Lamp Qty Lamp Voltage
in a cross
section
28: 28W T5 120: 120V
1
54: 54W 277: 277V
T5HO
347: 347V
UNV:
Universal
Voltage
120/277V
Electrical
• AGU with PG ballast code comes with one 2-lamp ballast per 8' of luminaire.
• Standard product offering (DS and DN version, 120V and 277V only) includes continuous
2-circuit wiring, one circuit for the upper compartment (if applicable) and one circuit for
the lower compartment (if applicable). Single and double compartment luminaires can
be mixed.
• DA and DW available with Agili-T Network only.
• Integrated quick connectors for power and network cable (Agili-T Network only) and
auto plug-in connections between luminaires.
• 18-gauge wire, maximum 10A per circuit.
Mounting
• Suspension points on module: every 4' (4' luminaire) or every 8' (8' luminaire.).
• Fast installation using mounting clip for Standard T-bar and Slim T-bar or for Slot T-bar
(see next page).
Finish
• Seamless color and texture finish between luminaire and end-caps.
• Available with textured (white or titanium) high resistant powder-based coating.

Options and accessories

• Emergency circuiting
Labels
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
CANLYTE
525 EDUCATION ROAD, CORNWALL, ONTARIO, CANADA K6H 6C7 - (613) 938-6221
WE RESERVE THE RIGHT TO CHANGE DETAILS OF DESIGN, MATERIALS AND FINISH
© 2007 GENLYTE GROUP LLC (LIGHTOLIER DIVISION)
AGU
1 lamp T5 per 4' section
PG
Ballast Options
DW: iGEN DALI Adressable
T5/T5HO with Network-2
MultiSense Integral Motion
Sensor (120 or 277V only)
DA: iGEN DALI Adressable
T5/T5HO (UNV only)
PG: Electronic Program Start
T5/T5HO
Type:
www.canlyte.com
AGU-1
