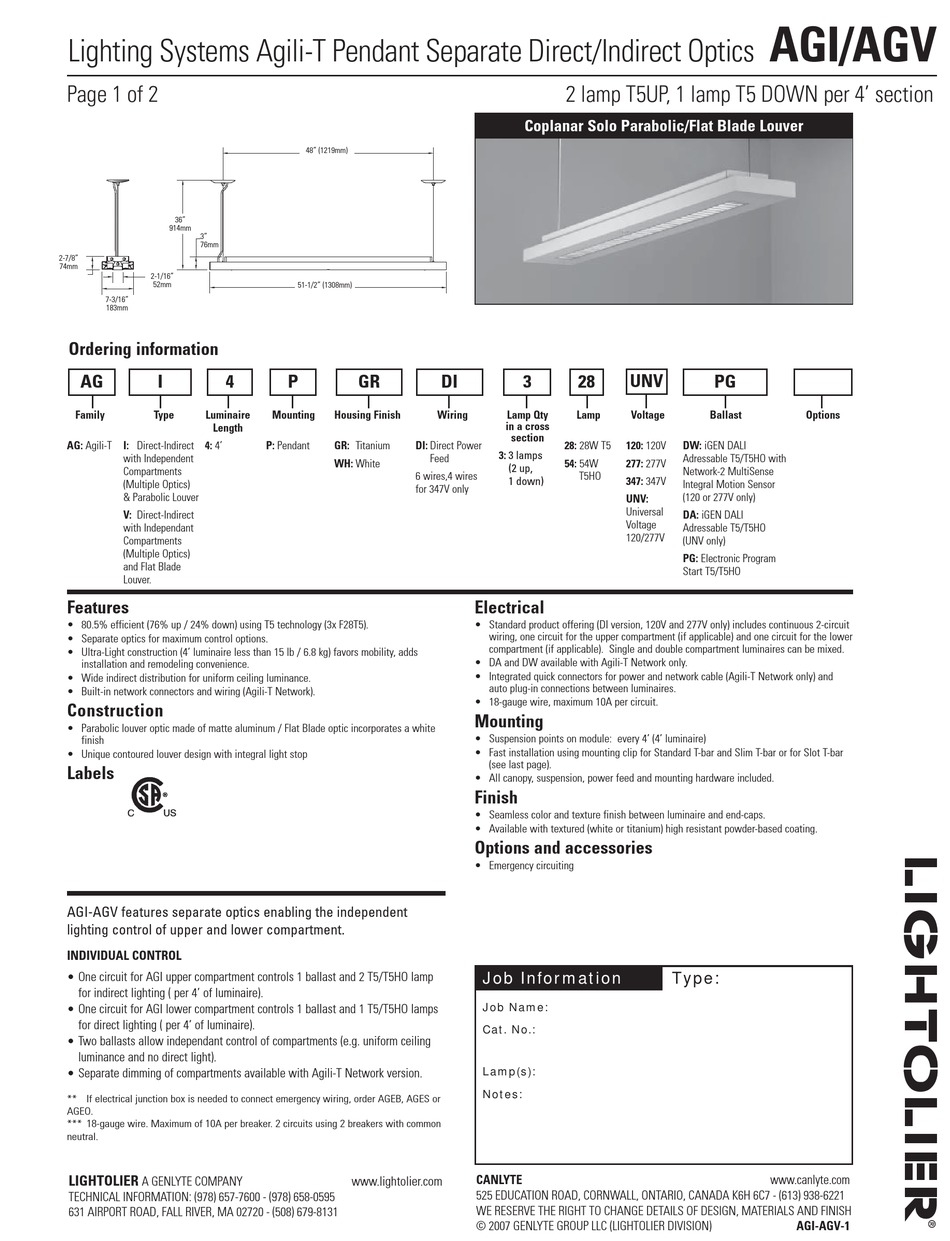

Lightolier AGI Specification

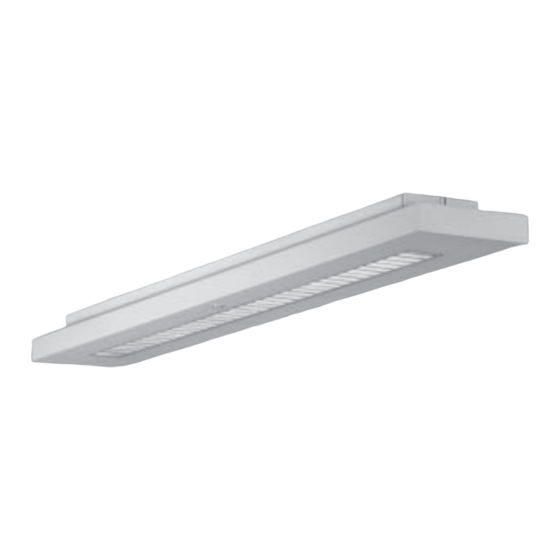

Lighting Systems Agili-T Pendant Separate Direct/Indirect Optics
Page 1 of 2
36"
36"
914mm
3" 3"
76mm
2-7/8"
2 7/8"
74mm
2 1/16"
2-1/16"
52mm
7 3/16" 7-3/16"
183mm
Ordering information
AG I 4
Family Type Luminaire
Length
AG: Agili-T I: Direct-Indirect 4: 4'
with Independent
Compartments
(Multiple Optics)
& Parabolic Louver
V: Direct-Indirect
with Independant
Compartments
(Multiple Optics)
and Flat Blade
Louver.
Features
• 80.5% efficient (76% up / 24% down) using T5 technology (3x F28T5).
• Separate optics for maximum control options.
• Ultra-Light construction (4' luminaire less than 15 lb / 6.8 kg) favors mobility, adds
installation and remodeling convenience.
• Wide indirect distribution for uniform ceiling luminance.
• Built-in network connectors and wiring (Agili-T Network).
Construction
• Parabolic louver optic made of matte aluminum / Flat Blade optic incorporates a white
finish
• Unique contoured louver design with integral light stop
Labels
AGI-AGV features separate optics enabling the independent
lighting control of upper and lower compartment.
INDIVIDUAL CONTROL
• One circuit for AGI upper compartment controls 1 ballast and 2 T5/T5HO lamp
for indirect lighting ( per 4' of luminaire).
• One circuit for AGI lower compartment controls 1 ballast and 1 T5/T5HO lamps
for direct lighting ( per 4' of luminaire).
• Two ballasts allow independant control of compartments (e.g. uniform ceiling
luminance and no direct light).
• Separate dimming of compartments available with Agili-T Network version.
** If electrical junction box is needed to connect emergency wiring, order AGEB, AGES or
AGEO.
*** 18-gauge wire. Maximum of 10A per breaker. 2 circuits using 2 breakers with common
neutral.
LIGHTOLIER
A GENLYTE COMPANY
TECHNICAL INFORMATION: (978) 657-7600 - (978) 658-0595
631 AIRPORT ROAD, FALL RIVER, MA 02720 - (508) 679-8131
48" (1219mm)
48"
54"
51-1/2" (1308mm)
P GR DI
Mounting Housing Finish Wiring
P: Pendant GR: Titanium DI: Direct Power
Feed
WH: White
6 wires,4 wires
for 347V only
www.lightolier.com
2 lamp T5UP, 1 lamp T5 DOWN per 4' section
Coplanar Solo Parabolic/Flat Blade Louver
UNV
3 28
Lamp Qty Lamp Voltage
in a cross
section
28: 28W T5 120: 120V
3: 3 lamps
54: 54W 277: 277V
(2 up,
T5HO
1 down) 347: 347V
UNV:
Universal
Voltage
120/277V
Electrical
• Standard product offering (DI version, 120V and 277V only) includes continuous 2-circuit
wiring, one circuit for the upper compartment (if applicable) and one circuit for the lower
compartment (if applicable). Single and double compartment luminaires can be mixed.
• DA and DW available with Agili-T Network only.
• Integrated quick connectors for power and network cable (Agili-T Network only) and
auto plug-in connections between luminaires.
• 18-gauge wire, maximum 10A per circuit.
Mounting
• Suspension points on module: every 4' (4' luminaire)
• Fast installation using mounting clip for Standard T-bar and Slim T-bar or for Slot T-bar
(see last page).
• All canopy, suspension, power feed and mounting hardware included.
Finish
• Seamless color and texture finish between luminaire and end-caps.
• Available with textured (white or titanium) high resistant powder-based coating.

Options and accessories

• Emergency circuiting
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
CANLYTE
525 EDUCATION ROAD, CORNWALL, ONTARIO, CANADA K6H 6C7 - (613) 938-6221
WE RESERVE THE RIGHT TO CHANGE DETAILS OF DESIGN, MATERIALS AND FINISH
© 2007 GENLYTE GROUP LLC (LIGHTOLIER DIVISION)
AGI/AGV
PG
Ballast Options
DW: iGEN DALI
Adressable T5/T5HO with
Network-2 MultiSense
Integral Motion Sensor
(120 or 277V only)
DA: iGEN DALI
Adressable T5/T5HO
(UNV only)
PG: Electronic Program
Start T5/T5HO
Type:
www.canlyte.com
AGI-AGV-1
