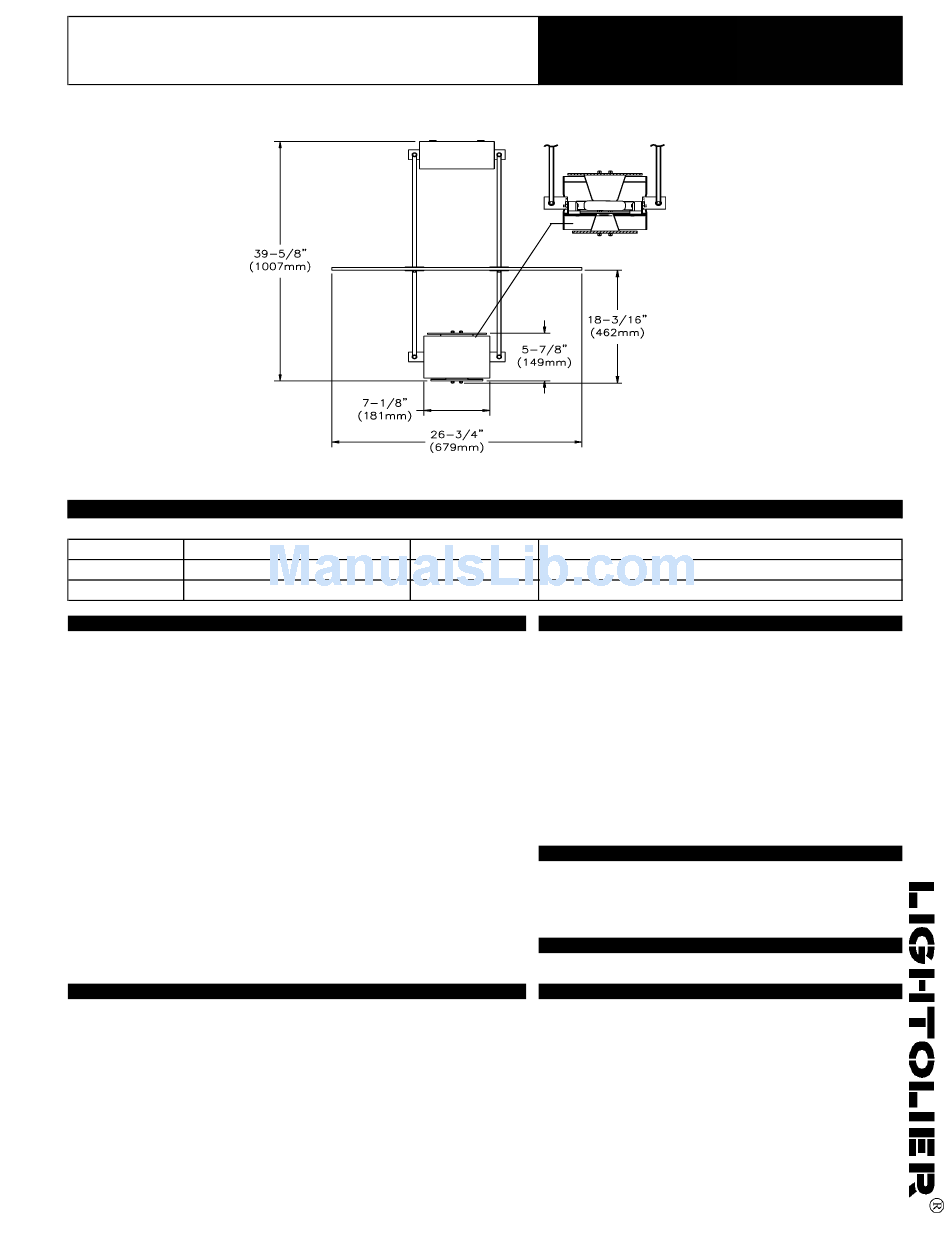

Lightolier SL402A Specification

Cat. No. Lamp (clear)
SL402AH1
1-150W T7 CMH (M142) Double Ended
SL402AH2
1-150W T7 CMH (M142) Double Ended
SL402AH5
1-150W T7 CMH (M142) Double Ended
Features
Optical System : Single lamp powers an upper wide spaced indirect optic and a lower
narrow spaced direct sand-blasted optic. Glass shield redirects light into the space.
Upper wide spaced spun Alzak optic with clear glass micro switch protected. Narrow
spacing spun Alzak downlight optic. Bottom glass sandblasted outer ring with clear
centre.
Stainless Steel Construction : Quality all stainless steel form and hardware.
Hardware : Exposed hardware adds high design element to the form.
Ballast : New low wattage CWA magnetic or electronic ballast assure long lamp
life and stable operation of the ceramic metal halide lamp source.
Ballast Compartment : Stainless steel construction with removeable ballast cover
Hollow rods shield wiring to optical chamber.
Optical Chamber : Circular brushed stainless steel construction and all stainless
steel hardware, with clear Borosilicate glass at top and sand blasted Borosilate glass at
bottom.
Ceramic Lamp Source : CMH lamp source assures stable color over the life of
the lamp and longer lamp life.
Large Glass : Sand blasted glass suspended between the two chambers. Hollow
threaded rods joined together to hold the glass in position.
Dome Reflector : For a better direct distribution pattern, the Dome Reflector can be
installed onto the Large Glass. See the appropriate photometry on reverse side of sheet.
Mounting
Mounting : Suitable for mounting on standard octogonal box. Must be held in
place by additional hardware to support heavy weight luminaire.
Luminaire Weight : 39 lbs (magnetic), 36.5 lbs (electronic).
WE RESERVE THE RIGHT TO CHANGE DETAILS OF DESIGN, MATERIALS AND FINISH, IN ANY WAY
THAT WILL NOT ALTER INSTALLED APPEARANCE OR REDUCE FUNCTION AND PERFORMANCE.
Lightolier Canada, 3015 Louis Amos Lachine, (Quebec) H8T 1C4
Zylinder Glas
Optic Forms
1-150W T7 Ceramic Metal Halide
Ordering Guide (complete unit only)
Volts
120V (electronic)
277V (electronic)
120/277/347V (mag)
Spectral
Architectural Lighting
Finish
Stainless Steel & Etched Glass
Stainless Steel & Etched Glass
Stainless Steel & Etched Glass
Electrical
Lampholder : RX7s, double ended base.
Electronic Ballast : Electronic ballast maintains constant lamp
characteristics throughout the life of the lamp and through a wide range
of operating voltages. Ballasts available for 120 volts and 277 volts
operation. No universal ballast option.
Microswich : Remote, turn off electricity during maintenance into the
lamp compartment.
H1 : Electronic MH / CMH 120V
H2 : Electronic MH / CMH 277V
Magnetic Ballast : CWA (Constant Wattage Autotransformer) with
triple tap 120/277/347 volts operation. Ballast maintains steady lamp
operating characteristics for longer lamp life and color stability.
H5 : Magnetic CWA MH 120/277/347V
Options and Accessories
For wall unit, see Zylinder Wall SL403.
Fuse : 2 Amps internal fusing. Consult your Lightolier representative.
Add code (-F1) for 120 volts, (-F2) for 277 volts or (-F3) for 347
volts.
Finish
Stainless steel : Brushed high quality stainless steel alloy.
Labels
UL "c/us" Listed. For dry locations only.
02-04
SL402A
