INSTALLATION INSTRUCTIONS
IMPORTANT: Read carefully before installing fixture. Retain for future reference.
General: Upon receipt of fixture thoroughly inspect for any
freight damage, which should be brought to the attention of
the delivery carrier. Compare the catalog description listed
on the packing slip with the fixture label on the housing to
assure you have received the correct merchandise.
WARNING:
ARM INSTALLATION
Bishop Arm (SA6001-SA6002, SA6050-SA6051, SA6101-SA6102
& SA6150-SA6151)

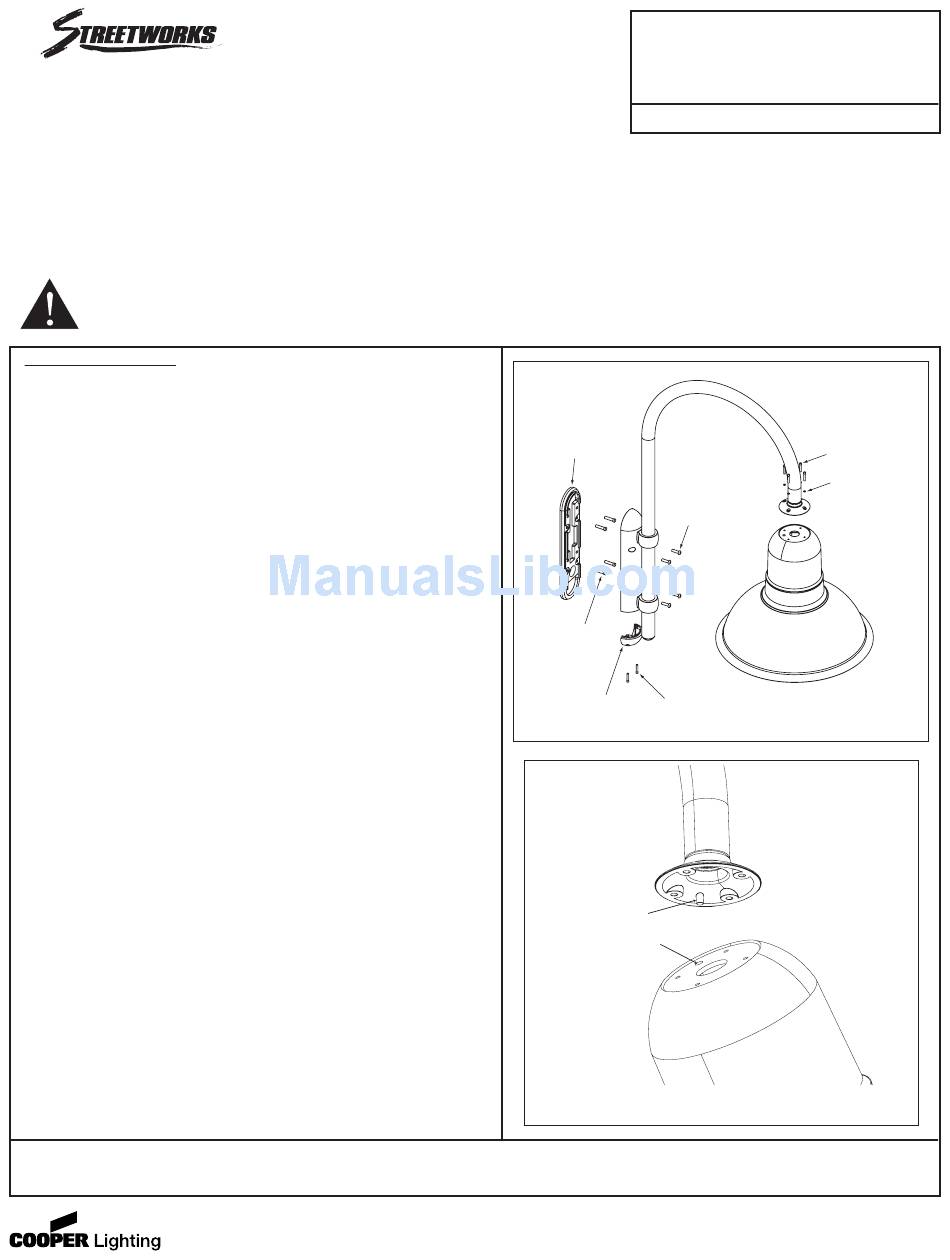

See Figure 1.
1. Secure arm mount flush with wall using 3/8" hardware supplied
by others.
2. Remove wireway cover screws and wireway cover.
3. Mount arm to arm mount positioning service leads in wireway.
Insert and tighten four screws to 80 in/lbs.
4. Pull fixture leads through arm.
5. Align locating pin and socket when raising fixture to arm.
See Figure 2.
6. Insert and tighten 4 fixture screws with Teflon washers, provided
in polybag, to 80 in/lbs.
7. Connect fixture leads to service leads in wireway.
8. Resecure wireway cover with wireway cover screws tightened to
50 in/lbs.
Traditional Arm (SA6003-SA6004, SA6052-SA6053, SA6103-
SA6104 & SA6152-SA6153)
See Figure 3.
1. Secure arm mount flush with wall using 3/8" hardware supplied
by others.
2. Remove wireway cover screw and wireway cover.
3. Mount arm to arm mount positioning service leads in wireway.
Insert and tighten set screw to 80 in/lbs.
4. Pull fixture leads through arm.
5. Align locating pin and socket when raising fixture to arm.
See Figure 2.
6. Insert and tighten 4 fixture screws with Teflon washers, provided
in polybag, to 80 in/lbs.
7. Connect fixture leads to service leads in wireway.
8. Resecure wireway cover with wireway cover screw tightened to
50 in/lbs.
These instructions do not claim to cover all details or variations in the equipment, procedure, or process described, nor to provide directions for meeting every possible
contingency during installation, operation or maintenance. When additional information is desired to satisfy a problem not covered sufficiently for user's purpose, please
contact your nearest representative.
TM
Risk of Electric Shock. Disconnect power at fuse or circuit breaker before installing
or servicing.
Customer First Center • 1121 Hwy 74 South • Peachtree City, GA 30269
Epic/Wall Mounted
Safety: This fixture must be wired in accordance with
the national electrical code and applicable local codes
and ordinance. Proper grounding is required to insure
personal safety. Carefully observe grounding procedure
under installation section. All work should be done by a
qualified electrician.
Backplate Med
Bishop Wall
(4) 3/8" Lag Bolts
(supplied by others)
Wireway Cover
Wireway Cover
Srews (2)
Aligning Pin
Aligning Socket
Fig. 2a
Fixtures
Sheet 1 of 4
10/18/05 IMI-658
Bishop Arm
Fixture Screws (4)
Teflon Washer (4)
(4) 3/8-16 x 1-1/4
Button Head Cap
Screws
Fig. 1
Modern Top
IMI-658 ADW051684
