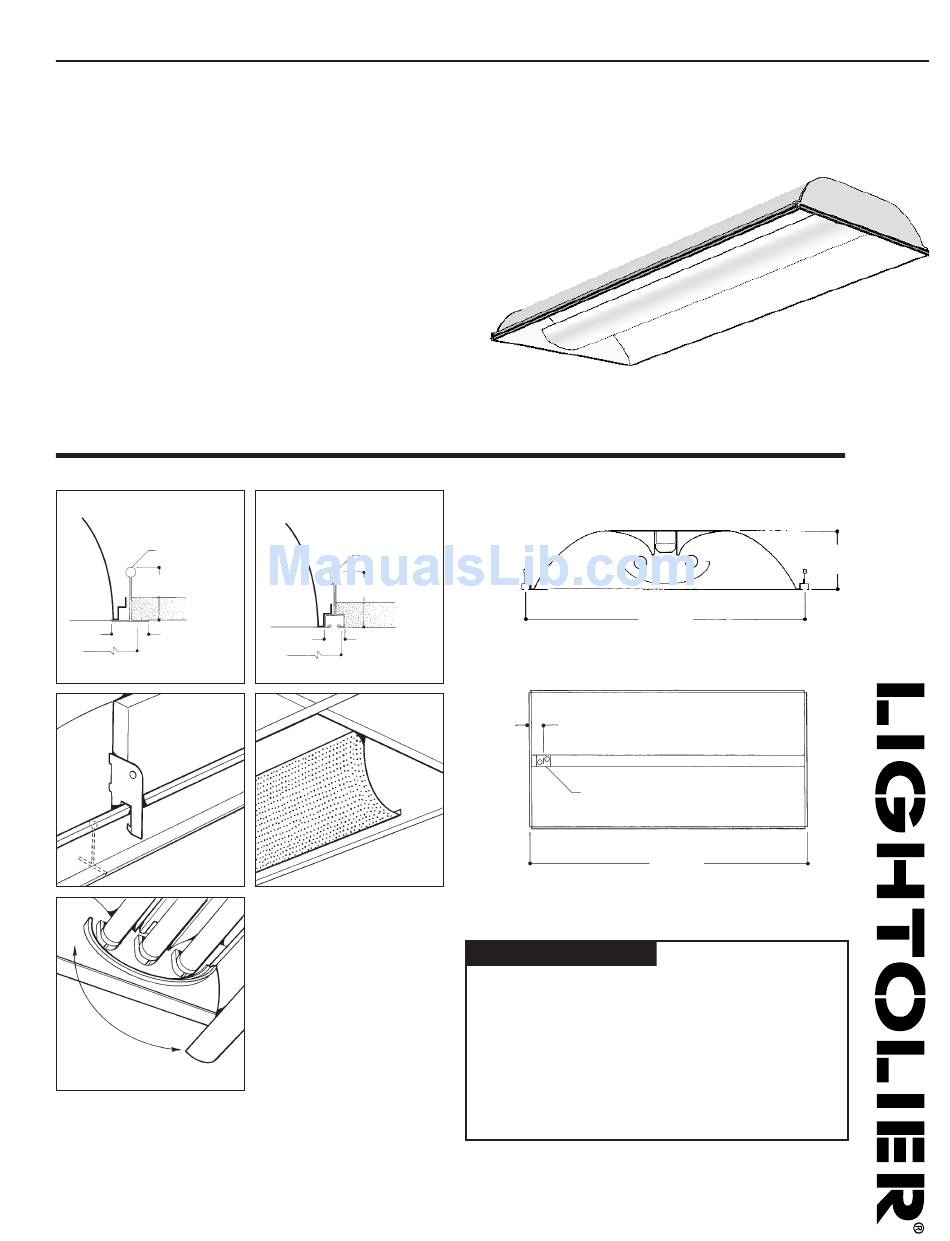

Lightolier Coffaire II CFH2GPF228 Specification

Coffaire II Recessed Fluorescent
Page 1 of 2
Features
• Direct/indirect lamp shield appearance.
• Perforated mesh lamp shield with white acrylic overlay.
• Contoured body and ends.
• Air return models meet UL 1598, Paragraph 9.2.2.5 requirements.
• 65.0% efficient (2 lamp T5, 28W).
• 70.8% efficient (2 lamp T5, 54W).
• Spacing to mounting ratio 1.3.
• Only 5" deep.
• Tension bars secure ends to body.
• Same fixture fits both G and T ceiling.
• Fits flush to face of slot grid (T) ceiling.
• Static models have injection molded light stop at basket ends.
• Perforated lamp shield hinges from either side.
• Ballast accessible from room side.
• Built-in earthquake clips.
• Can be continuous row mounted.
• Wiring access plate standard.
• Construction to meet NYC Code or Chicago Plenum requirement is
available.
Mounting Methods
Exposed T-bar
by others
1-1/2"
max.
Acoustical
material
by others
15/16"
24"
exposed t-grid ceiling
built-in earthquake clips
light stop-static models only
11/05
Exposed T-bar
by others
1-7/8"
max.
Acoustical
material
by others
9/16"
24"
exposed slot t-grid ceiling
lamp shield hinges either side
CFH2GPF228 or 254

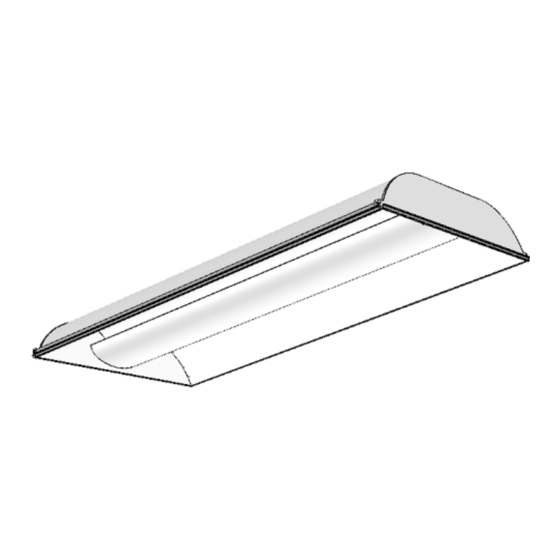

Direct/Indirect – 2' x 4' with Perforated Basket
Dimensions
2-1/2"
(64mm)
2" x 2-1/2" Access Plate
with (2) 7/8" dia. K.O.
Job Information
Job Name:
Cat. No.:
Lamp(s):
Volts/Ballast:
Lightolier
a Genlyte company
Technical Information: (978) 657-7600 • Fax (978) 658-0595
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2005 a Genlyte company
Air Return/Static, 2 Lamp T5
(127mm)
24" (610mm)
48" (1219mm)
Type:
www.lightolier.com
Section 5/Folio M15-40
5"
