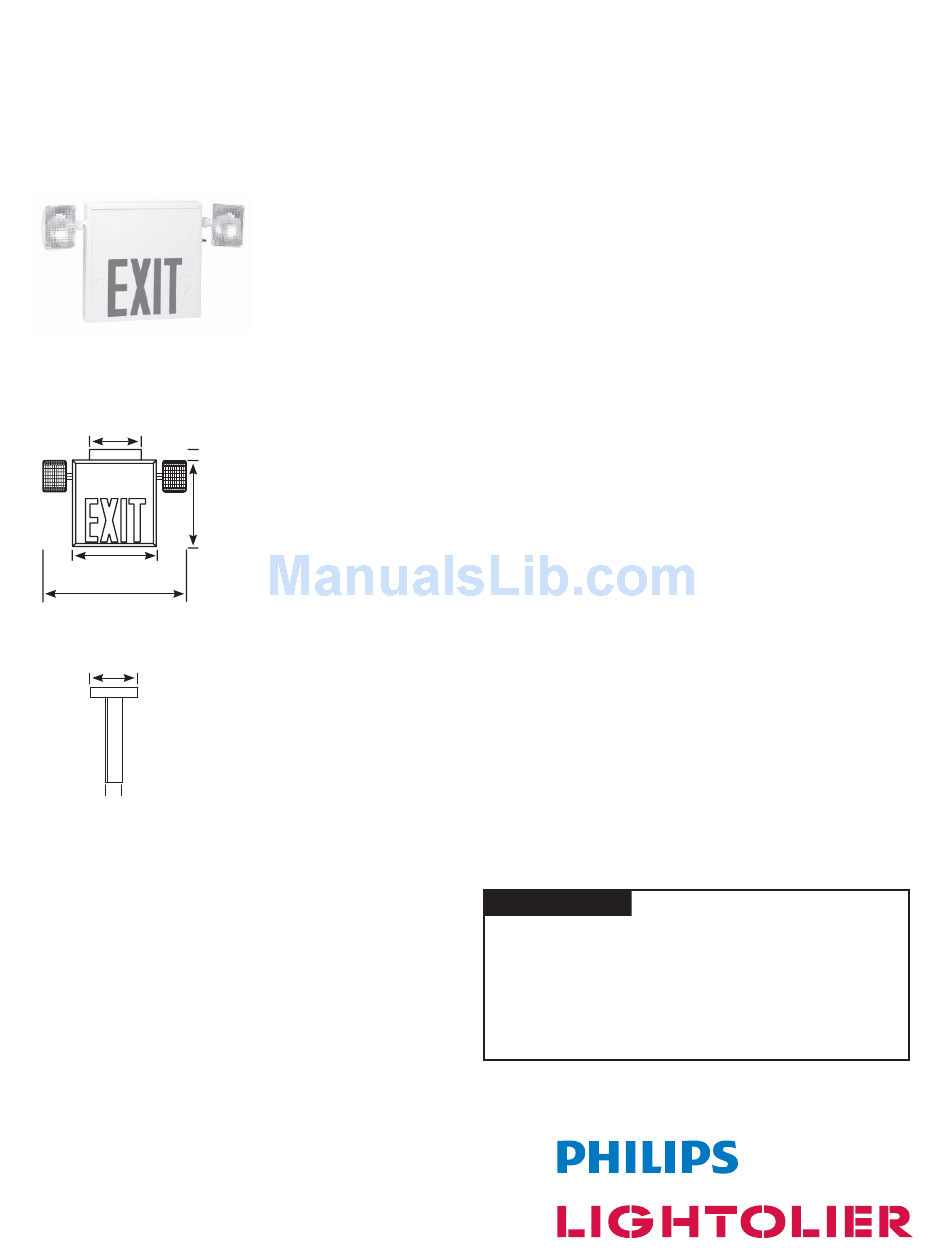

Lightolier LX Series Specification

LX12L1RW2H
6.8"
(17.3 cm)
2.0"
(5.1 cm)
12.5"
(31.8 cm)
12.5"
(31.8 cm)
22.5"
(57.2 cm)
4.8"
(12.2 cm)
2.5"
(6.4 cm)
S
Features
Illumination: Illumination
of the exit stencil face is
accomplished with either
red or green high-output
Light Emitting Diodes (LEDs).
Hot spots and striations are
eliminated by a combination
of indirect and direct aiming
points covering the exit stencil
face. Units are furnished with
two 6 VDC, 5.4 W side-
mounted lamp heads utilizing
a high-intensity tungsten T-5
wedge base lamp.
Housing: Constructed of
three-piece, 20 gauge, cold
rolled steel. White powder
coat finish is standard, black
is optional. NFPA-compliant
field-selectable chevrons.
Universal knockouts located
on the backplate allow for
wall mounting directly to
standard junction boxes. A
mounting canopy is provided
for top mount applications.
Slide-in/slide-out front and
back stencils simplify single-to-
double face conversions in the
field. Side-mounted lamp heads
are fully adjustable and are
shipped completely assembled.
C
TEEL OMBINATION
Operating Temperature
Range:
65°F (19°C) to 85°F (30°C)
Electronics: 120/277 VAC
dual voltage input with surge-
protection, solid-state circuitry
provides for a reliable charging
system. Charging system is
complete with low voltage
disconnect, AC lockout,
brownout protection, AC
indicator lamp and test switch.
Electrical Specifications:
Red and Green:
0.090 A (120 VAC)
0.039 A (277 VAC)
Job Information
Job Name:
Cat. No.:
Notes:
LX Series
LED E
Code Compliance
UL 924 listed. NFPA 101,
NEC, BOCA, OSHA and IBC
illumination standards.
Warranty
Three year full electronics
warranty. One year full plus
four year prorated lead calcium
battery warranty.
Type:
XIT
Page 1 of 2
