Coleman PHAD 9830-350 Manual

Main Tent Poles (Silver)
Part No. 9830-1151
Side Pole (Red)
Part No. 9830-1251
1

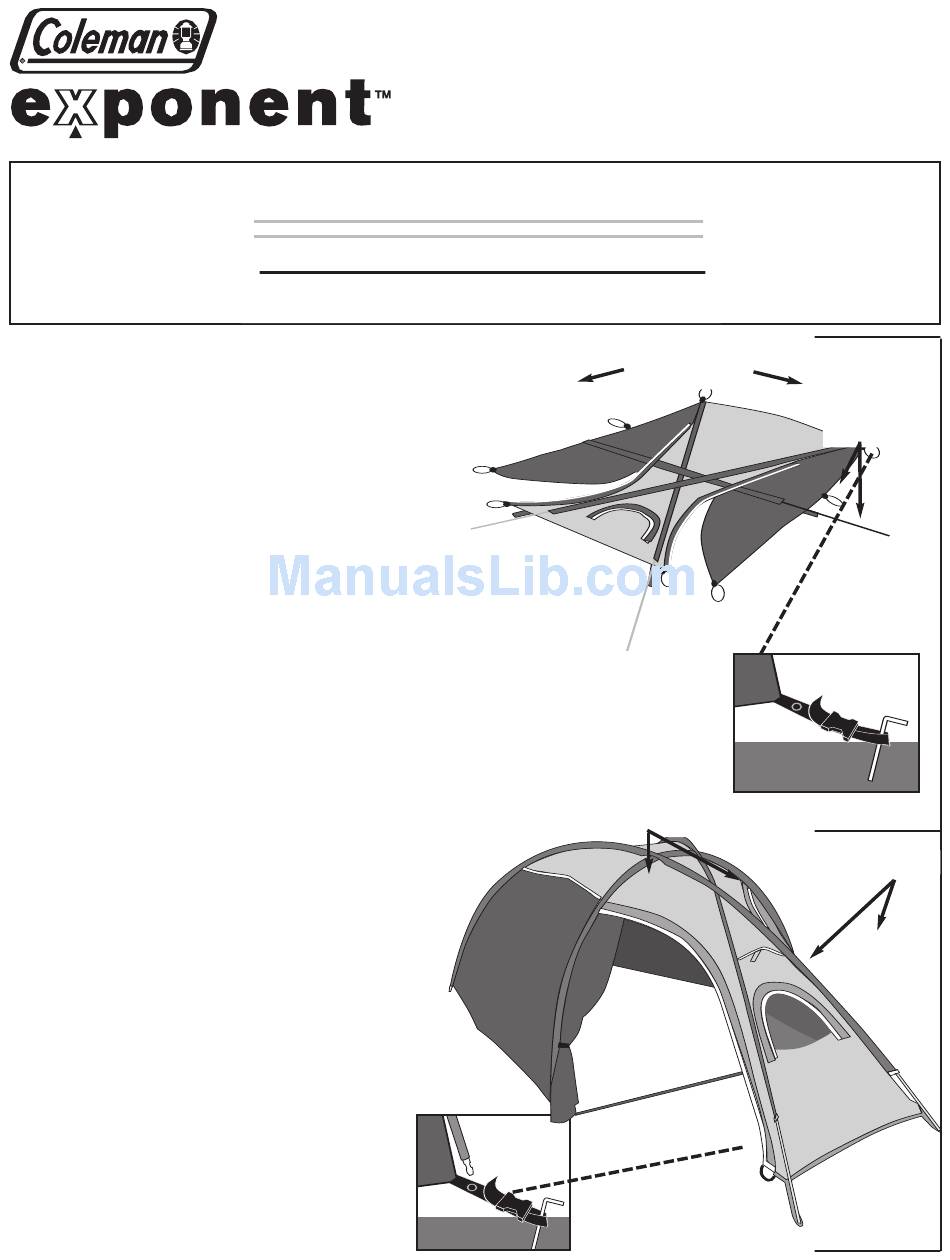

Layout & Positioning
of Rainfly, Pole Assembly
– Layout and position Rainfly with doors facing
desired direction. (illus. 1) Unzip doors.
– For best results in windy conditions, position
back of tent into the wind.
– Stake down rear tent corners. (illus. 1)
– Assemble frame poles by interlocking the
shock-corded sections. This will make two
long silver Main Tent Poles and one red
Side Pole.
– Insert the cap end of the two Main Tent Poles
through the poles sleeves with the silver trim.
– Insert the cap end of the red Side Pole through
the pole sleeve with the red trim.
2
Assemble Frame
– Start with one of the Main Tent Poles and
gradually apply pressure to the pole,
forming an arch, until you are able to
insert the pole tip into the grommet on
the corner web. (illus. 4)
– Repeat for second pole.
– Go to the Side Pole and gradually apply
pressure to the pole, forming an arch,
until you are able to insert the pole
tip into the grommet. (illus. 4)
POLE ASSEMBLY PARTS
Phad
™
part number 9830-350
Main Tent Poles
illus. 1
illus. 2
Tent stake
through Loop
Main Tent Poles
illus. 4
Tent frame up
illus. 3
Insert Pole Talon on
stake loop into pole.
X 2
Rainfly
Part No. 9830-1351
Side Poles
Side Poles
