Coleman Kenosha Pass 9278-137 Instructions

When You Are Ready To
Set Up Your Tent
–Select a level campsite clear
of rocks, branches and other
hard or sharp objects.
–Do not set up your tent
under trees.
–See owners manual for
more tips.
Layout & Positioning
1
of Tent, Pole Assembly

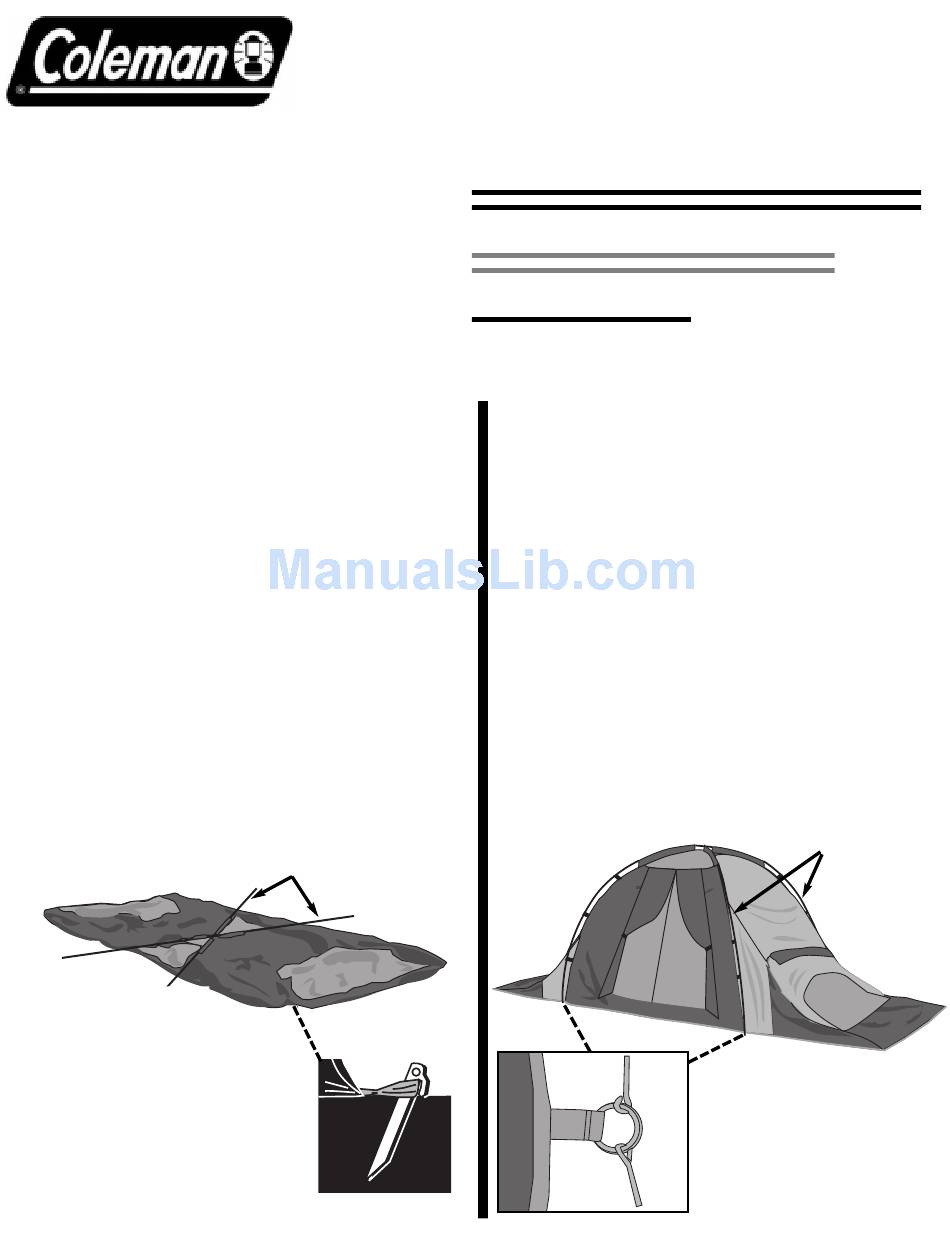

–Lay out and position tent with door
facing desired direction. (illus. 1)
–Unzip door
–Stake down tent corners, using the
tent stake loops. Keep the floor taut.
(illus. 2)
–Assemble black, Frame Poles by
interlocking the shock-corded sections.
–Insert the poles into center Pole
Sleeves.The poles should cross
forming an "X" in the middle of tent.
(illus. 1).
Front Door
stake through
Kenosha Pass™ 13'x7'
Instructions apply to Part Number 9278-137
Main Tent Poles
Side Tent
Rainfly Pole
Rainfly Part No. 9278-135
Black poles
illus. 1
illus. 2 Tent
stake loop
POLE ASSEMBLY PARTS
Part No. 9278-132
Part No. 9278-133
Poles
Part No. 9278-134
2
Connect Frame to Tent
–Locate the Pin & Ring Systems on
either side of the front door and the
corresponding Pin & Rings on the back
side of tent.
–Insert one end of black Frame Pole
onto Pin on tent stake loop on either
side of front door (illus. 3)
–Go to opposite end of pole and gradually
apply pressure to the pole, forming an
arch until you are able to insert the Pin
into pole end.
–Repeat for second pole
–Attach tent frame clips to poles (illus. 5)
Black poles
illus. 4
Center section upright
Illus. 3
Pin & Ring System
located on the front &
rear of tent
