Coleman Ciqala 2000001200 Installation Instructions

Before you begin
Read all instructions before set up.
• Select a level campsite clear of rocks, branches, and other hard
or sharp objects, to install your tent.
WARNING: Keep clear of overhead power lines.
• Do not set up your tent under trees.
• For best results in windy conditions, position end of tent into
the wind.
• Enlist the help of at least one other person to assist you when
it is time to assemble the tent.

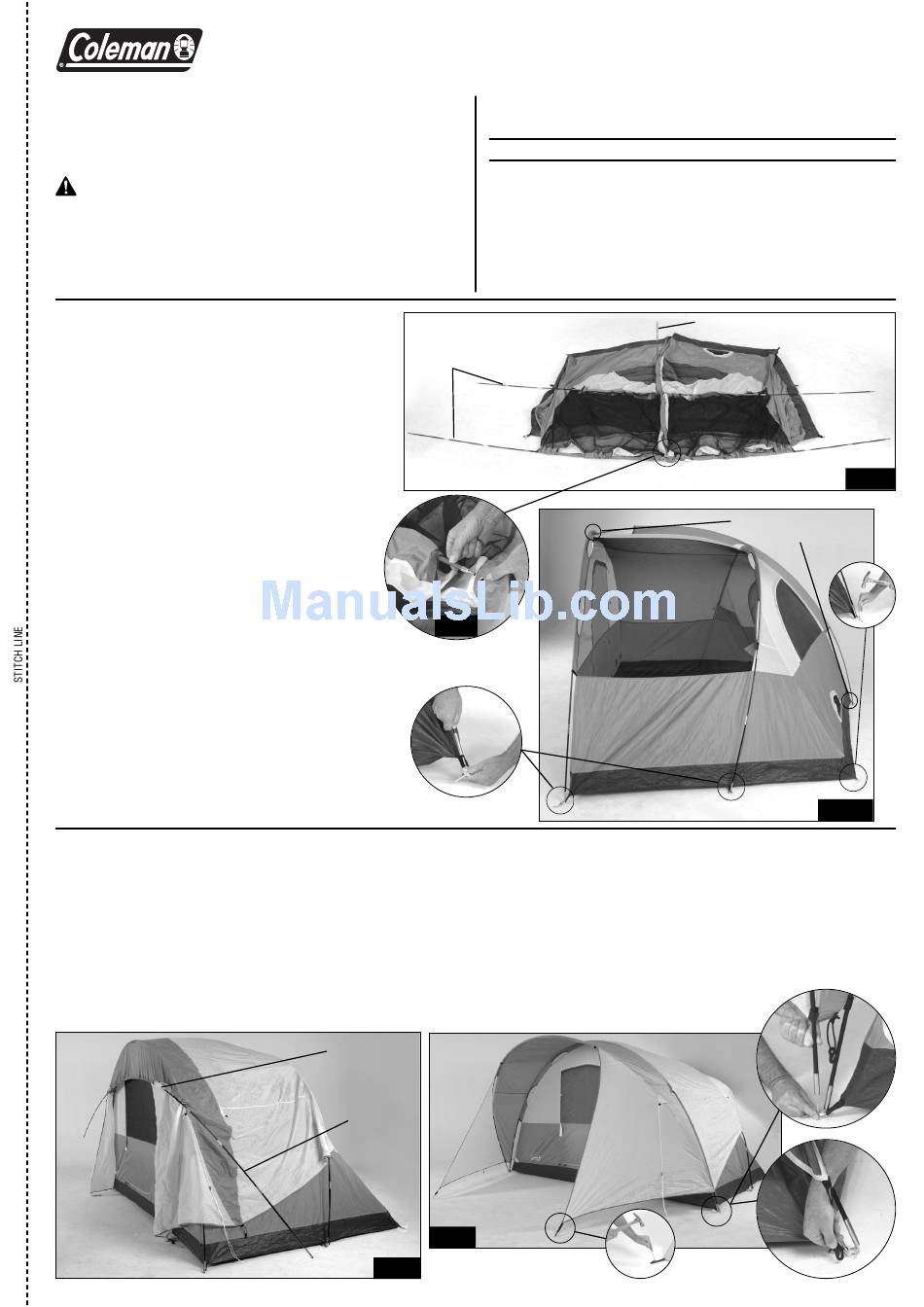

To Set Up Tent
1. Unfold tent and spread out on a clean, level surface
with the door facing the desired direction.
2. Assemble the interlocking shock-corded poles (two
black main tent poles and the gray ridge pole).
3. Insert both, long, black poles through sleeves in
top front and center locations on tent as shown.
(Fig. 1)
4. Insert the gray ridge pole through sleeve on top
of tent that runs from front to back. (Fig. 1)
5. Insert metal tip on gray ridge pole into metal
grommet located at front of tent. (Fig. 2)
6. Insert one end of front and center black poles
into pins in front corner and side of tent.
(Fig. 3 & 3A)
7. Go to opposite end of each pole and gradually
apply pressure to the poles forming arches.
Insert the pin into the pole end at the front
corner and side of tent. (Fig. 3)
8. Go to back of tent and gradually apply pressure on
the gray ridge pole forming an arch; then insert metal
tip of pole into metal grommet on web strap at
back of tent. (Fig. 3)
9. Stretch corners and sides of tent until floor is
taut then hammer stakes through loops to secure.
(Fig. 3B)
To Attach Rainfly
1. Assemble long, thin, black interlocking shock-corded front awning pole.
2. Unfold rainfly. Locate the sleeve, along front edge, and the hook & loop fasteners on the underside of rainfly.
3. Drape rainfly over tent. Make sure the sleeve is centered over the door and the hook & loop fasteners, on the underside of the rain-
fly, are positioned over the black main poles and gray pole. (Fig. 4)
4. Slide front awning pole through sleeve at front of the rainfly. (Fig. 4)
5. Insert one end of front awning pole into pin in front corner of tent. (Fig. 5A)
6. Go to opposite end of front awning pole and gradually apply pressure until pole forms an arch. Insert the pin into
the pole end at the front corner of tent (Fig. 5 & 5B). Drive stakes through straps on vestibule flap. (Fig. 5C)
Door
CIQALA TM TENT 12' X 10'
MODEL 2000001200
Parts and Components
Back Awning Pole w/Metal Tips, Black (1)
Long, Black,
Shock-corded
Main Poles
Fig. 2
3A
(continued on other side)
Sleeve on Front
of Rainfly
Front Awning
Pole
Fig. 5
Fig. 4
Description
Main Poles, Long, Black (2)
Ridge Pole, Gray (1)
Front Awning Pole, Long, Black (1)
Rainfly
Door (Front of Tent)
Vestibule Flap
5C
Part Number
5010000386
5010000387
5010000388
5010000389
5010000400
Gray, Shock-corded Ridge Pole
Fig. 1
Gray Ridge Pole in Front &
Back Metal Grommets
3B
Fig. 3
5A
5B
