Coleman Bayside 9277-151 Instructions

When You Are Ready To Set
Up Your Tent
–Select a level campsite clear of
rocks, branches and other hard or
sharp objects.
–Do not set up your tent under trees.
–For best results in windy conditions,
position the end of tent into the wind.

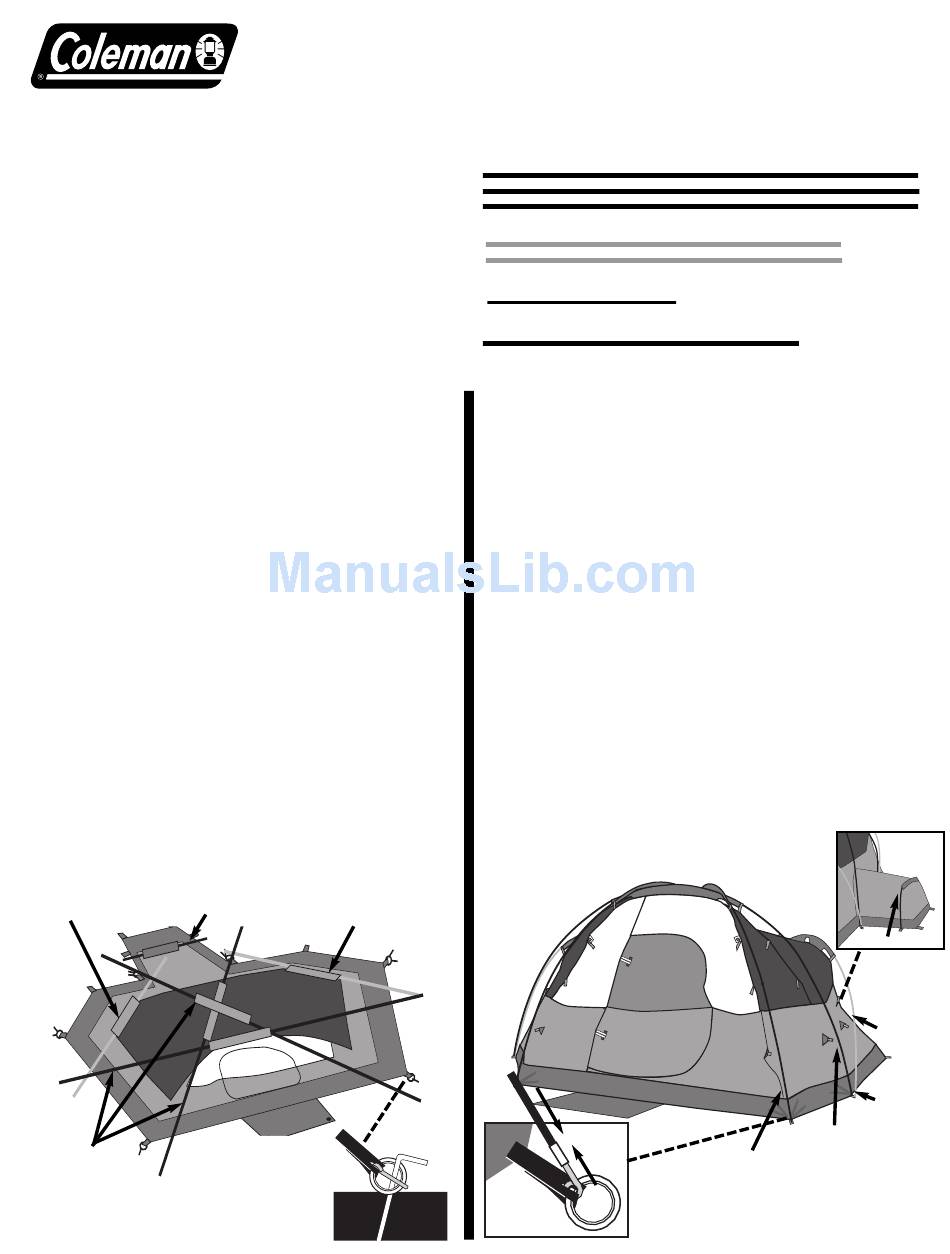

1 Layout & Positioning
of Tent, Pole Assembly
–Layout and position tent with door facing
desired direction. (illus. 1)
–Unzip door.
–Stake down tent, using the rings on the
stake loops and the corner fabric loops.
Keep the floor taut. (illus. 2)
–Assemble frame poles by interlocking
shock-corded poles. (3 main poles, 2 side
poles, 1 Pet Den pole)
–Insert one main tent pole through the pole
sleeve above the front door. Insert the other
two main poles through the pole sleeves
angling front to back, they will cross each
other. (illus. 1)
–Insert two (Grey) side poles through the pole
sleeves toward the back corners of the tent.
–Insert Pet Den pole through pole sleeve at
rear of tent.
Pet Den Pole
Side Pole
illus. 1
Assembled black
main tent poles
inserted through
pole sleeves.
Bayside
15'x10'
Instructions apply to Part Number 9277-151
Poles (Black)
Pet Den Pole
Rainfly Pole
Side Pole
Front Door
illus. 2
Tent stake
through ring
on stake loop
Family Dome with Pet Den
™
Part No. 9277-330
Main Tent
Part No. 9277-350
Side Poles
(Grey)
Part No. 9277-340
Part No. 9277-360
Rainfly Part No. 9277-370
2 Connect Frame to Tent
–Insert pin into the ends of the main tent poles
at the rear of the tent on either side of the Pet
Den. (illus. 3, illus. 4) Go to opposite end of
pole and gradually apply pressure to the pole
forming an arch until you are able to insert the
pin at the front tent corner, into the pole end.
(works best standing in the open door way,
with two people) Repeat for second pole.
–Insert pin on the side tent into the end of the
main pole running above the front door. Go to
opposite end of pole and gently apply
pressure to the pole forming an arch until you
can insert the side pin into the pole end.
(illus. 3), (illus. 4)
–Insert other side pin into grey side pole end
and gently apply pressure to the pole, forming
an arch until you can insert the pin at the rear
of tent into the pole end. (illus. 4), (illus. 5)
–Insert Pet Den pole into
grommets on the sides
of the Pet Den.
illus. 5
Pet Den
Main pole
above door
Main pole
illus. 3
Tent frame set-up
Insert pin into
pole end
Pet Den
pole
Side pole
Side Pins
illus. 4
