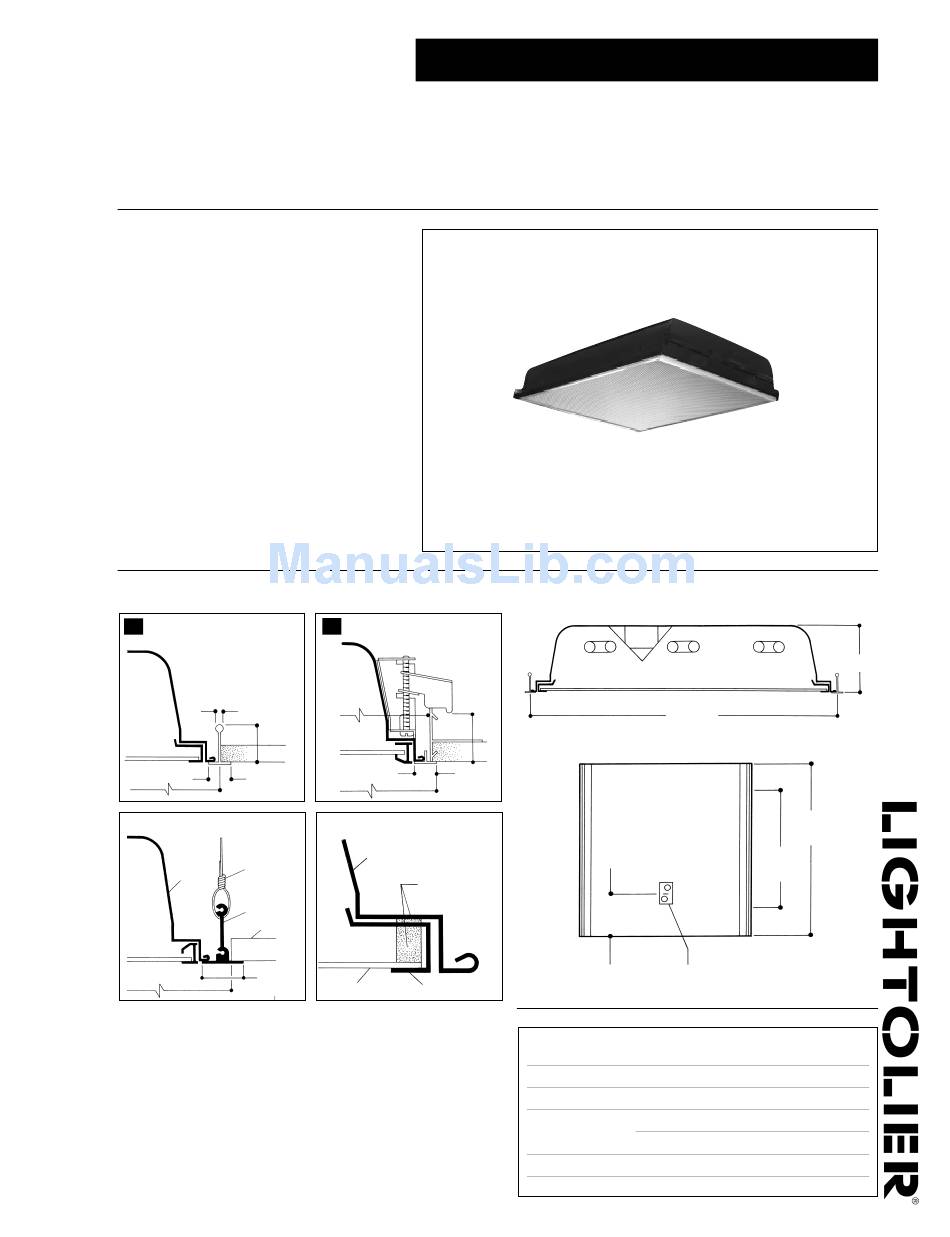

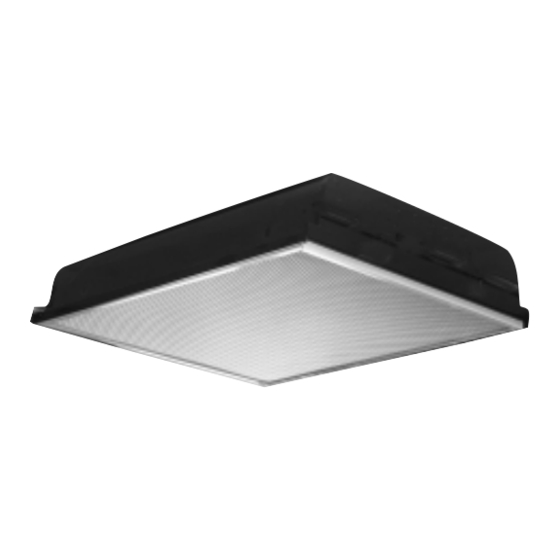

Lightolier CXS Series 2x2 Specification

I Meets requirements for Federal Standard
209E Class 10,000 & 100,000 Clean Room
tested by Independent Lab.
I UL and ULc Listed for wet or damp
locations for covered ceiling use.
I Fits 15/16" to 1" wide face grid ceiling sys-
tems or flanged for drywall type ceilings.
Contractor responsible for sealing fixture to
ceiling.
I Full perimeter gasketing (closed cell
Neoprene) between door frame and lens,
between housing and door frame.
I Ends sealed to body.
I .125 pattern 12 lens installed smooth side
down.
I Door frame is post painted, baked
acrylic enamel.
I Hemmed over side rails for maximum safety.
I Spring loaded rooster head latches.
I 18 gauge steel hinges.
I Flat and regressed aluminum doors available.
MOUNTING METHODS
exposed T-grid ceiling.
G
(with flat aluminum frame)
1/4" max.
1-1/2" max.
15/16" or 1"
24"
drywall kit (see options)
Support
Type "G" (by others)
FIxture
Drywall Kit
(See Options)
Drywall
(by others)
Ceiling Opening
15/16"
24-5/16" x 24-5/16"
CXS SERIES 2x2
CLEANGUARD CLASS 10,000 CLEAN ROOM
RECESSED FLUORESCENT
2 OR 3 LAMP, T8, 1-5/8" U LAMP, OR TT5
plaster ceiling/flanged.
F
Plaster
Opening
24-1/8"
1-1/8" min.
3-3/4" max.
13/16"
24-11/16"
gasketing detail
Fixture
Gasketing
(Close Cell Neoprene)
Lens
Door Frame
DIMENSIONS
24" (610mm)
5"
(127mm)
2"x2-1/2" access plate
with two K.O.s (7/8" dia.)
FIXTURE TYPE
JOB INFORMATION:
5" (127mm)
23-7/8"
(606mm)
15-11/16"
(398mm)
VOLTS
SECTION 6/Folio N40-10
