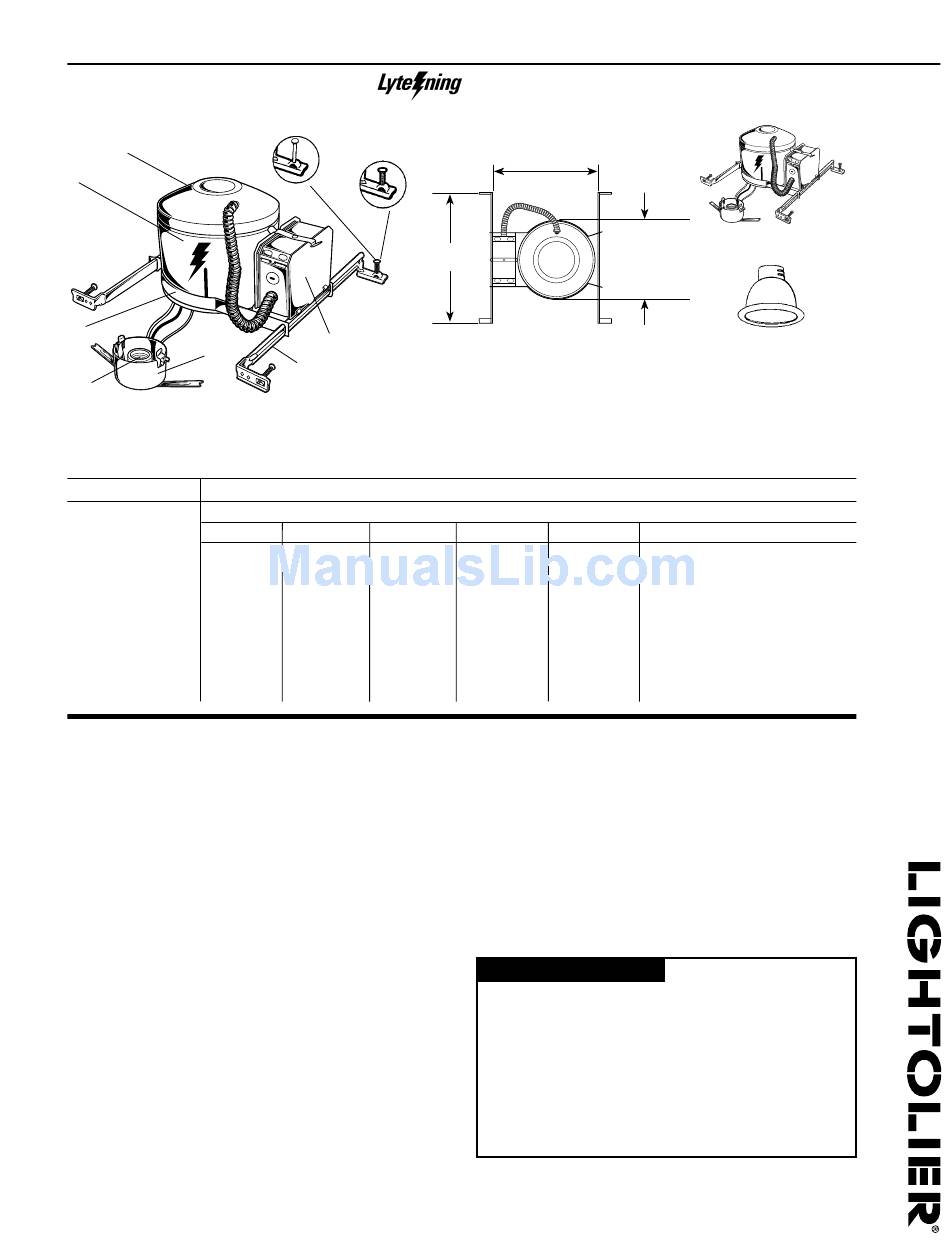

Lightolier Lytecaster 1004SIC Specification

Page 1 of 1
7
1
2
5
6
Ceiling Opening: 5 3/8" Diameter
5" Aperture: Complete Fixture consists of Reflector Trim & Frame-In Kit. Select each separately.
Frame-In Kit Reflector Trims — See Individual Reflector Trim Specification Sheets
Cone
1004SIC 1012
1004SICN 1012NM
1013
1013WH
1013CD
1013NM
1013BKNM
1013CDNM
1013BK

Feature

1. Housing: .032" (#20 ga.) Aluminum. UL listed convertible IC/NON-IC. 2"
vertical adjustment in ceiling. Can be removed for access to junction box and
ceiling plenum. 5 1/2" tall for use in 2" X 6" joist construction and shallow
plenum applications. AirSeal housing minimizes air leakage to less than 2
®
CFM at 1.57 PSF (or 75pa), which complies with Model Energy Code (Section
602.3.3) and Washington State Energy Code (Section 502.4) and reduces heat
loss and condensation in ceiling.
2. Mounting Frame: .048" (#18 ga.) galvanized steel. Locks into position along
length of mounting bars with locking spring and bendable slot. (3) slots 90°
apart simplify alignment.
3. Junction Box: 2" X 4" X 3 1/2" (22 cu. in.) .032" (#22 ga.) galvanized steel.
UL listed for maximum of 8 (#12 ga.) 1104SIC/N and 6 (#12 ga.) 1004SIC/N
90°C through branch circuit conductors. Integral cable clamps permit
attachment of non-metallic (#12 or #14 ga.) Romex
additional connectors.
4. Mounting Bars: .059" (#16 ga.) galvanized steel. Bars pivot for easy
attachment and wire-in below ceiling line. Bars extend to accommodate
16" to 24" O.C. joist spacing. Bars can accommodate 9" O.C. joist spacing
after a slight field modification (See Instruction Sheet). 1004SIC features
integral self-tapping phillips screws for secure attachment to wood or metal
construction. The 1004SICN features integral nails for secure attachment to
wood. Both attach to T-bar ceilings without the need of accessories.
5. Socket Housing: Impact extruded aluminum or galvanized steel. Attached
trim retaining spring secures trim to any height on housing wall.
6. Socket: Porcelain medium base; nickel plated screw shell. Pre-wired with
#18 ga. SF1 (300 Volt 200° C) leads to junction box.
7. Thermal Protector: Meets NEC and UL requirements. Located inside
housing.
Lytecaster
5" Aperture
1004SICN
(Integral Nail)
1004SIC
(Integral Screw)
13" MIN.
24" MAX.
3
4
1004sic/n: 5 1/2"
Open Downlight
Satin Cone Baffles
1008 1005
1008NM 1005WH
1010 1005NM
1010NM 1005BNM
1076
1076WH
cable without tools or
®
Recessed Downlighting
®
Shallow Incandescent Convertible IC/Non-IC Frame-in Kit
®
Overall Length
1004sic/N: 9"
Overall Width
1004sic/n: 5 3/4"
Top View
Height
Basic White Wall Washer
1071 1085*
Options & Accessories
AirSeal Kit: LAS56
®
NOTE: Use only if factory installed tape or knockouts are removed from vertical
adjustment slots in housing wall.

Labels

UL (Type IC/NON-IC Convertible, Suitable for Damp Locations)
Complies with Air Leakage Requirements stated in the Model Energy Code and
the Washington State Energy Code.
AirSeal ® is a registered trademark of Lightolier.
Romex is a registered trademark of General Cable Industries Inc.
®
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
Lightolier
a Genlyte company
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2006 Genlyte Group LLC • I0806
1004SIC
Frame-In Kit
Reflector Trim
Enclosed Diffuser
1024*
*for Non-IC applications only
Type:
www.lightolier.com
