Lightolier Lytecaster 1000LVRE1 Specification

Page 1 of 1
5 1/2"
Ceiling Opening
Complete Fixture consists of Reflector Trim & Frame-In Kit. Select each separately.
Frame-In Kit
1000LVRE1
120V- 0.625A MAX

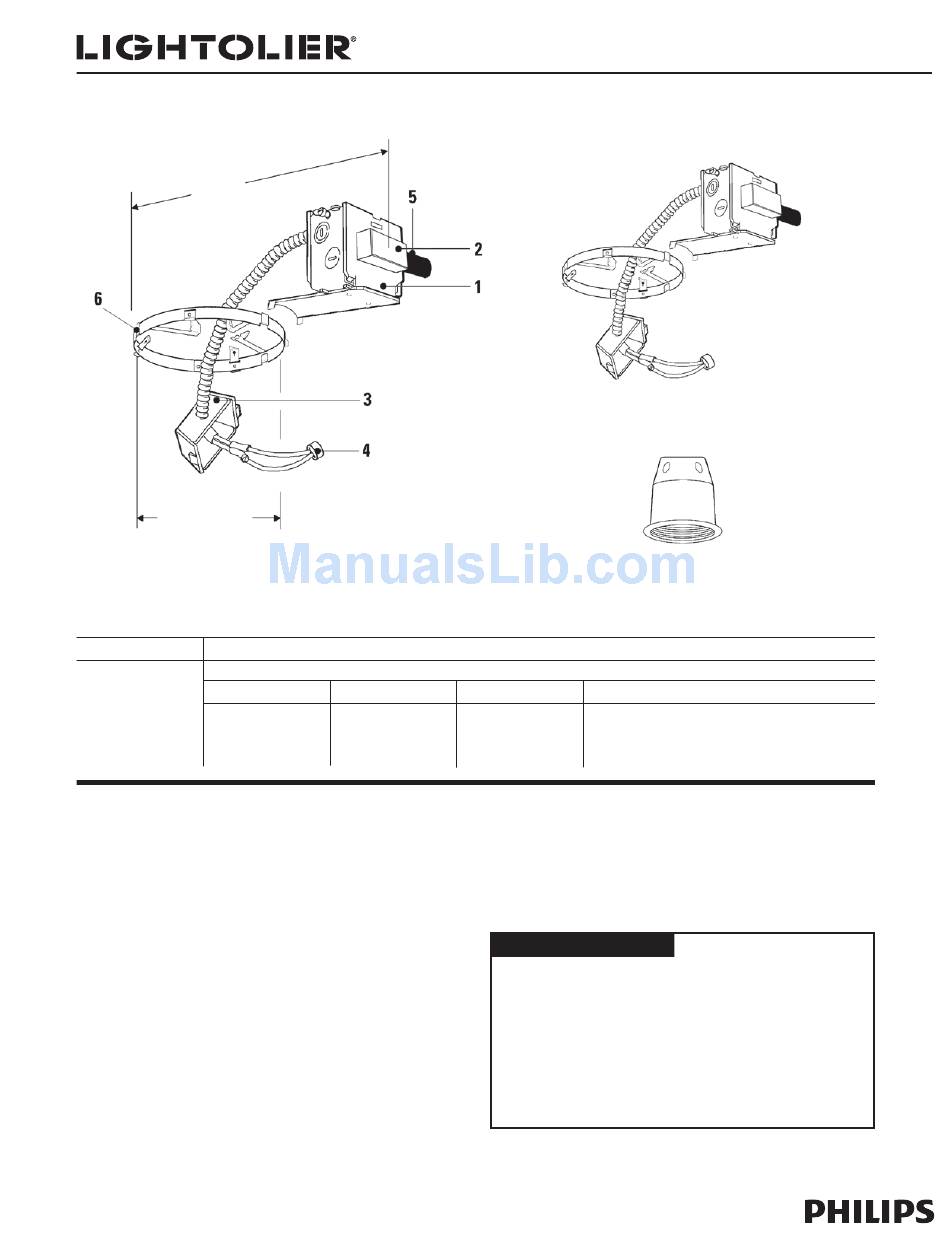

Features
1. Junction Box: 4" x 3 1/2" x 2"; .063" (#14 ga.) galvanized steel. UL listed for
90° C supply wire. Integral cable clamps permit attachment of nonmetallic
Romex or armored cable without need of additional connectors.
®
2. Transformer: Outboard mounted, electronic, 120V. primary, nominal 12V.
secondary. Removable from below.
3. Socket Housing: .036" (#20 ga.) galvanized steel.
4. Socket: Field replaceable. Two pin socket, pre-wired with #18 SF1 leads to
junction box.
5. Thermal Protector: Meets NEC and UL requirements. Insulation must be
kept 3" away from fixture sides and wiring compartments and must not be
placed above fixture in a manner which will entrap heat.
6. Mounting Ring: .048 (#18 ga.) galvanized steel. Accommodates existing
ceilings up to 2" thick. Attaches securely to any type of ceiling material
without tools using (3) mounting straps provided. Push-in/twist out clips hold
reflector flush to ceiling. Includes adhesive backed aperture template.
Dimming
Dimming Controls: Use only dimmers specifically designed for use with elec-
tronic transformers. Consult Lightolier Controls for more information. Low volt-
age luminaires may produce audible sound when used with dimmers, which may
be objectionable in acoustically critical areas.
Lightolier is a Philips group brand
Lytecaster
5" Aperture Electronic Low Voltage MR16 Non-IC Remodeler Frame-in Kit
11 3/8"
Reflector Trims — See Individual Reflector Trim Specification Sheets
Baffles Aperture Cone
1055LV 1056LV
1055WHLV 1063LV
1064LV
1064CDLV
Recessed Downlighting
®
Adjustable
Pinhole
1064WDLV 1052LV
1064WDPLV
Options & Accessories
MR16 Socket Replacement:
Labels
UL (Suitable for Damp Locations), I.B.E.W.
Romex is a registered Trademark of General Cable Industries Inc.
®
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2008 Philips Group • B1108
