Lightolier VR Parabolic VRA2G18LP332 Specification

Page 1 of 2
Features
• Meets IES RP1 for lighting VDT areas with normal use.
• 64.5% efficient (T8).
• 1.4 spacing mounting ratio.
• Only 6" deep body.
• One-piece housing.
• Semi-specular low iridescence pre-anodized louver.
• Spring-loaded latches.
• Concealed "T" hinges.
• Louver frame with integral positive light stop.
• Earthquake clips included.
• Louver has protective film dust guard.
• Air closure strips (optional).
• UL-Listed twin knockout access plate.
• Construction to meet Chicago Plenum Code is available.

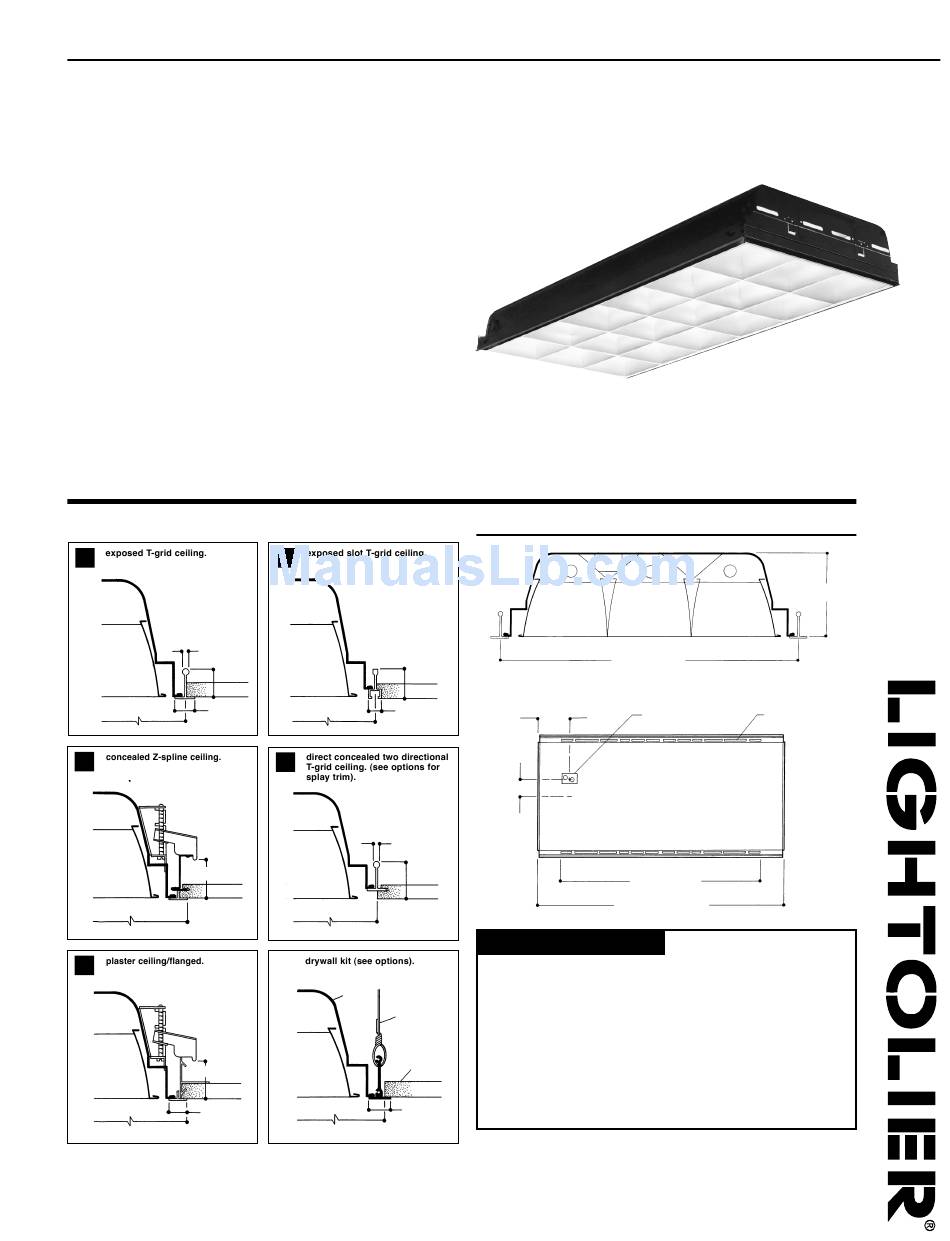

MOUNTING METHODS
G
1/4" max.
1-1/2" max.
15/16"
24"
or 1"
F
1-1/8" min.
3-3/4" max.
24-11/16"
F
1-1/8" min.
3-3/4" max.
13/16"
24-11/16"
VR PARABOLIC

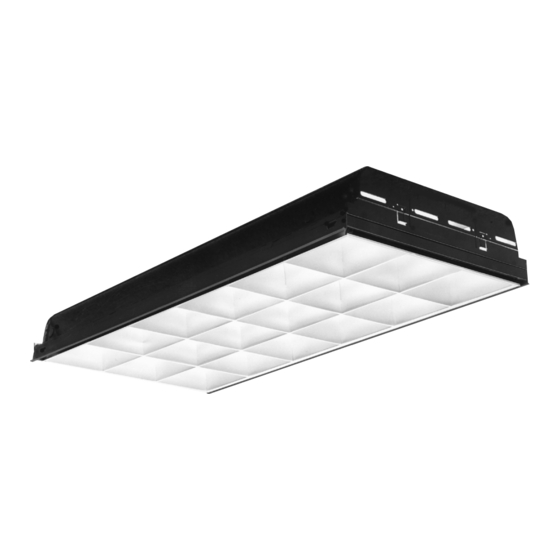

2'x4' RECESSED FLUORESCENT, 4" DEEP, 18 CELL (3x6) PARABOLIC LOUVER
STATIC OR AIR SUPPLY/RETURN, IES RP1 FOR NORMAL VDT USE
T
1-7/8" max.
9/16"
24"
T
1/4" max.
1-7/8" max.
24"
Type "G"
Fixture
Support
(by others)
Drywall
(by others)
Ceiling
24-5/16"
15/16"
Opening
VRA2G18LP332
DIMENSIONS
24" (610mm)
2"x2-1/2" access plate
6" (152mm)
with two K.O.s
(7/8" dia.)
3-1/2"
(89mm)
39-1/4" (997mm)
47-31/32" (1218mm)
