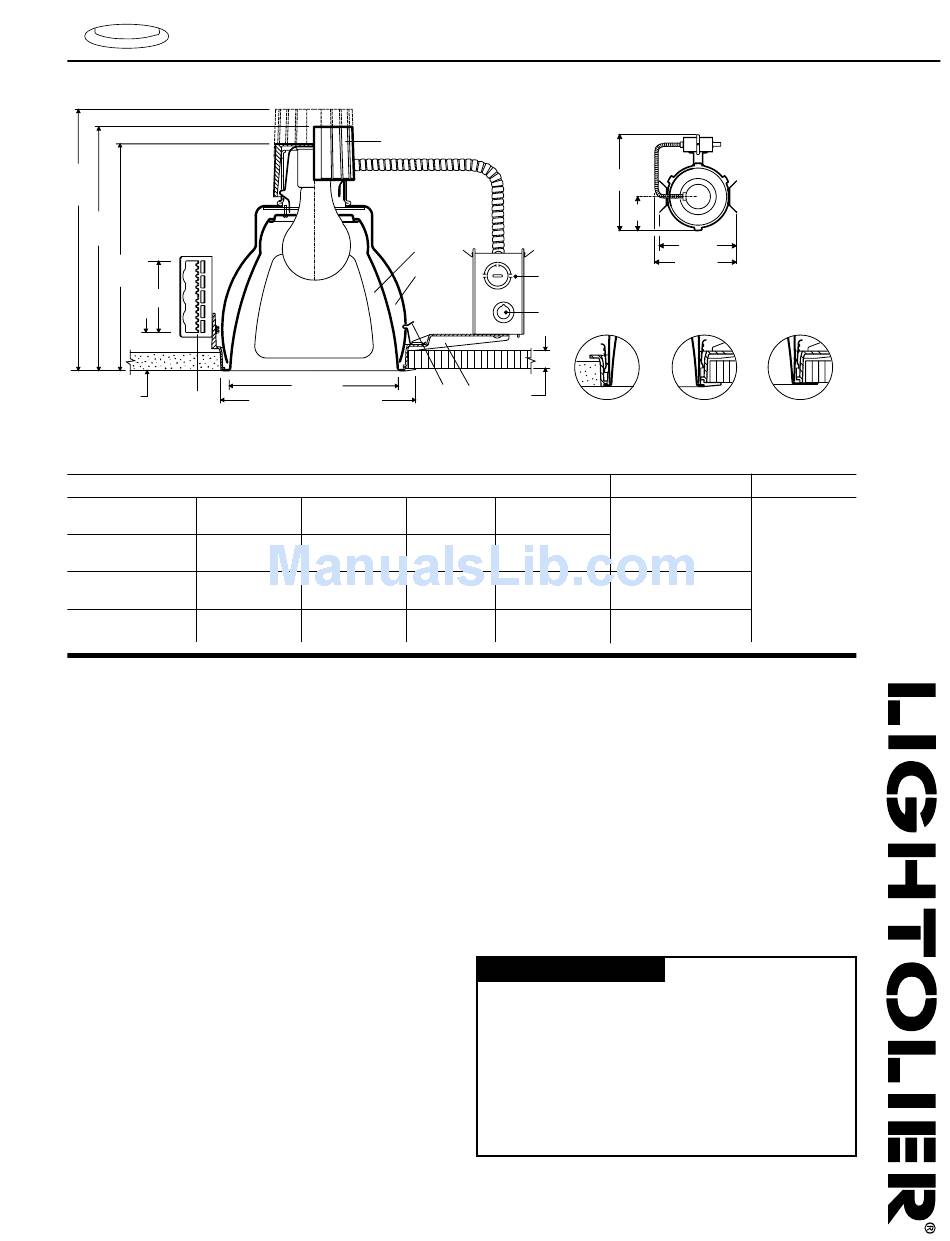

Lightolier Calculite T7032 Specification

Lightolier Calculite T7032 Specification

Incandescent open wall washer

Advertisement

Quick Links

Page 1 of 2
11"
PS-25
10 5/16"
A-23
9 5/16"
A-21
3"
1" min. - 2 1/8" max.
2
(Ceiling Runner)
Ceiling Cutout: 8" Dia.
Reflector Trims
Finish
Wall Washer
Specular Clear
Specular Gold
Corner Wall Washer
Specular Clear
Specular Gold
Double Wall Washer
Specular Clear
Specular Gold
Features
1. Socket Cup: Die-cast aluminum cup effectively dissipates heat and assures
lamps maintain proper optical alignment to reflector. Snaps onto reflector
neck for easy tool-less installation. Can be adjusted without tools from
inside or outside of fixture to accommodate three different lamp sizes.
Contains medium base porcelain socket with nickel plated screw shell wired
and No 18 SF1 leads to J-Box
2. Mounting Brackets: Adjust vertically from inside of fixture. Durable 16 ga.
steel construction. Use with standard 3/4" or 1 1/2"lathing channels, or 1/2"
(11/16" O.D.) EMT pipe (by others) or Lightolier accessory
mounting bars.
3. Retaining Springs: Precision-tooled springs secure reflector housing to
mounting frame for quick tool-less installation.
4. Insert Reflector: Alzak
®
aluminum, 16 ga., "cut-window" reflector allows
light to pass to a separately contoured outer housing reflector. 50° visual
cut-off to lamp and lamp image. Insert reflector contours provide even down-
lighting. Direction of wall wash can be re-oriented after installation.
Attaches with screws for simple installation and maintenance. Reflector
supplied with white molded trim ring (field paintable); or self-flanged reflec-
tor, matte white flange or flange finish to match reflector.
5. Junction Box: 14 ga. steel, 4" x 3 1/2" x 2" box allows inspection
from below.
6. Thermal Protector: Meets NEC and UL requirements. Insulation must be
kept 3" away from fixture sides and wiring compartments and must not be
placed above fixture in a manner which will entrap heat.
7. Mounting Frame: Die-cast aluminum suitable for dry or plaster ceilings.
Provides flangeless trim in plaster ceiling.
8. Wall Wash Reflector/Housing: Specular clear or gold 16 ga. Alzak
minum to match insert reflector. Attaches to mounting frame with springs.
Detachable for inspection from below fixture. Reflector provides even wall
wash. Must be installed before ceiling is finished.
Other Reflector Finish Options
Consult Factory
Calculite
®
Incandescent Open Wall Washer
1
4
8
7 1/8" Dia.
Flush
Overlap
7 7/8"
8 5/8"
White
Polished
Self-Flange
Self-Flange
T7032CLW
T7032CLP
U7032GDW
U7032GDP
T7033CLW
T7033CLP
U7033GDW
U7033GDP
T7034CLW
T7034CLP
U7034GDW
U7034GDP
®
alu-
13 1/2"
5
6
7
3
3/4" max.
Ceiling Thickness
Flush Trim
(Molded Trim Ring Removed)
Frame-In Kit
Flush/White
Molded Trim Ring
T7032CL
T701
U7032GD
U702
T7033CL
T701
U7033GD
U702 Gold
T7034CL
T701
U7034GD
U702 Gold
Accessories / Options
18" Mounting Bars
27" Mounting Bars
T-Bar Anchor Clips
Wood Joist Mtg. Bars
Existing Ceiling Clips
Step Down Transformer
Chicago Air Plenum
Electrical
UL Listed for a maximum of 8 No. 12, 75°C through branch circuit conductors, or
60°C supply conductors for end of run.
Labels
UL Listed for damp locations, I.B.E.W.
Alzak
®
is a registered trademark of ALCOA.
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
Lightolier
a Genlyte Thomas Company
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2002 Genlyte Thomas Group LLC (Lightolier Division) • A0902
7 3/8" Aperture A21 / A23 / PS25
Top View
4 7/8"
11 1/2"
12 1/2"
Molded
Overlap Self-Flange
Matte White or Polished
Trim Ring
Lamp
Clear
A21 150W
Gold
A23 200W
PS25 300W
Clear
Clear
1950 (set of 2)
1951 (set of 2)
1956 (set of 4, for 1950 & 1951 bars)
7994 (set of 2)
7998 (set of 2)
7997 (see separate specification sheet)
LC (add suffix to Frame-in Kit)
Type:
www.lightolier.com
T7032
