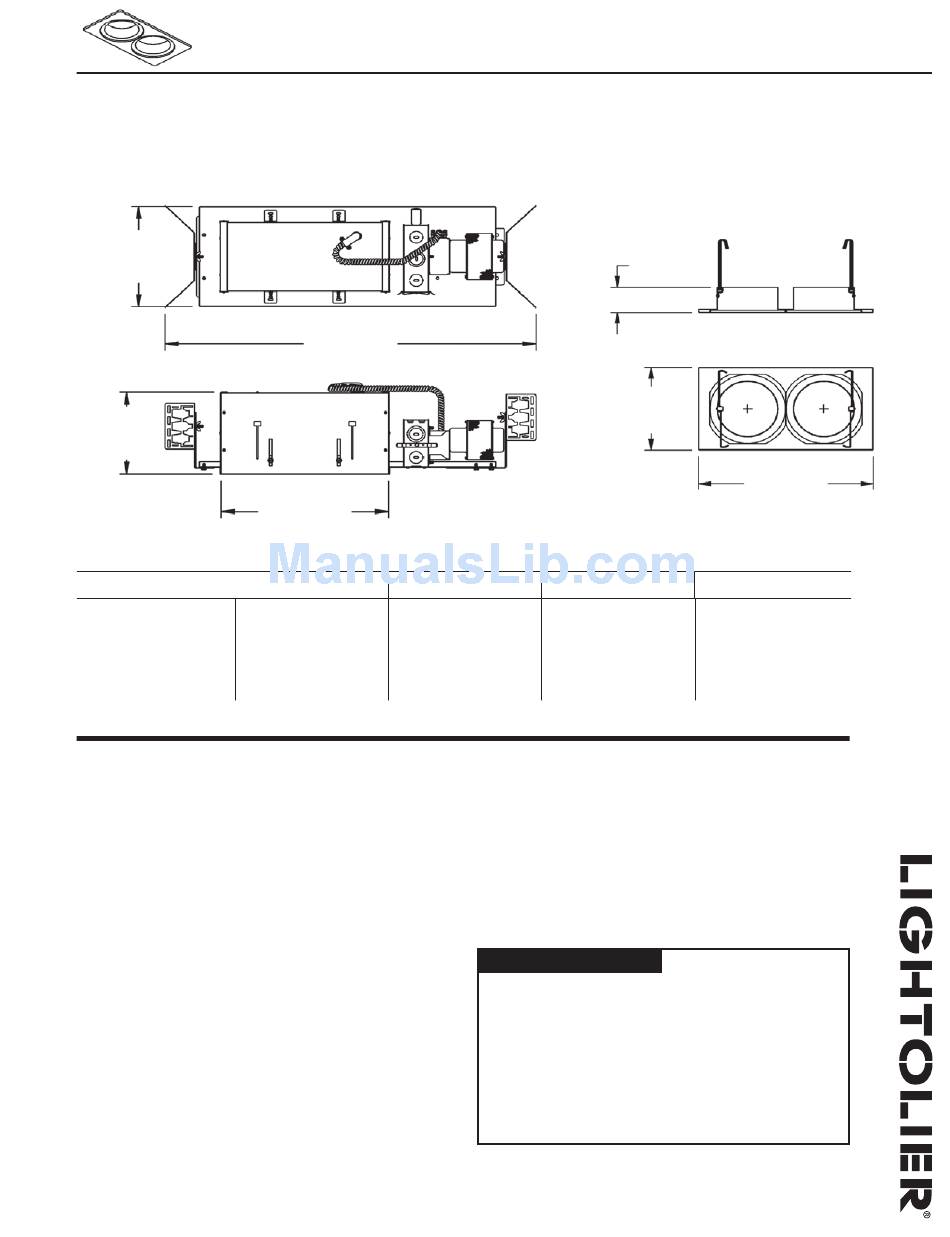

Lightolier Lytecaster 602MR Specification

Page 1 of 1 Recessed Linear Low Voltage 2 x MR16
7 3/8"
6 3/4"
Complete fixture consists of Reflector Trim (2 needed), Frame-in Kit and Face Plate. Select each separately
Reflector Trim
404X series Alzak Cones
405X series Painted Baffles
406X series Eyeball
409X series Pinhole
413X series
Gimbal
478X series
Elbow
Features
1. Housing / Plate: Die-formed 20 ga. steel ; Black painted finish.
Accommodates allceilings up to 2" thick. Adjustable from inside.
Concealed wiring channel.
2. Face Plate: Die-formed 20 ga. steel with 1/4" (7mm) lip all around. Inner
housing welded to face plate to accept 400 series trims. White painted finish.
3. Torsiontite Springs: For easy installation of faceplate. Insures that face
plate edges are snug to ceiling.
4. Mounting Brackets: 16 ga. steel. Use 18" (457mm) mounting bars(optional)
or with standard 3/4" (19mm), 1-1/2" (38mm) lathing channels (by others) or
1/2" (13mm) tubing (by others). Adjust horizontally and vertically.
5. Junction Box: 14 ga. steel, 5" (127mm) x 3-1/2" (89mm) x 1 1/2"
(38mm)deep box, allows inspection from below. CSA, US certified for through
branch circuit wiring with maximum of 8 (#12ga.), 90º C conductors.
6. Transformer: Magnetic 150VA, 120/277/347 volt primary, nominal 12
voltsecondary, class "B".
7. Thermal Protector: Meets CSA/UL requirements. Insulation, if used, must
be kept 3" away from luminaire sides and junction box. Do not cover top of
luminaire.
8. Socket: Porcelain body ; Two-pin (GX5.3 base) Pre-wired with 18 ga.
Teflon 250º leads to junction box.
Markings
CSA, US ; Certified for damp locations.
Lytecaster Recessed Downlighting
Frame-In Kit
25 1/2"
11 1/4"
Frame-In Kit
602MR120
602MR277
Ceiling Opening: 5 3/8" (137mm) x 11 1/2" (292mm)
2"
6 3/4"
Face Plate
602WH
Accessories
1950 - 18" Mounting Bar
1951- 31" Mounting Bar
FA10251-WH - Replacement Spacer Ring
Note
Magnetic transformers may produce audible sound which may be
objectionable in acoustically critical areas. The use of dimmers can further
amplify the sound levels.
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
Lightolier
a Genlyte company
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2011 Genlyte Group LLC • C0711
602MR
Face Plate
13"
Lamp
2 x 75W MR16
2 x 75W MR16
2 x 75W MR16
2 x 65W MR16
2 x 75W MR16
2 x 75W MR16
Type:
www.lightolier.com
