Lightolier LINEAR ADAPTER Instructions For Maintenance Reference

r
>
READ AND UNDERSTANDTHESE INSTRUCTIONSBEFORE INSTALLING FIXTURE
INSTRUCTION SHEET NO,
'his fixture is intended for installation in accordancewith the National Electrical Code and local
emulations. To assure full compliance with local codes and regulations, check with your local electrical
nspector before installation. To prevent electrical shock, turnoff electricity at fuse box before proceeding.
IS:8276
Retain these instructions for maintenance reference.
0892
Page 1 of 2

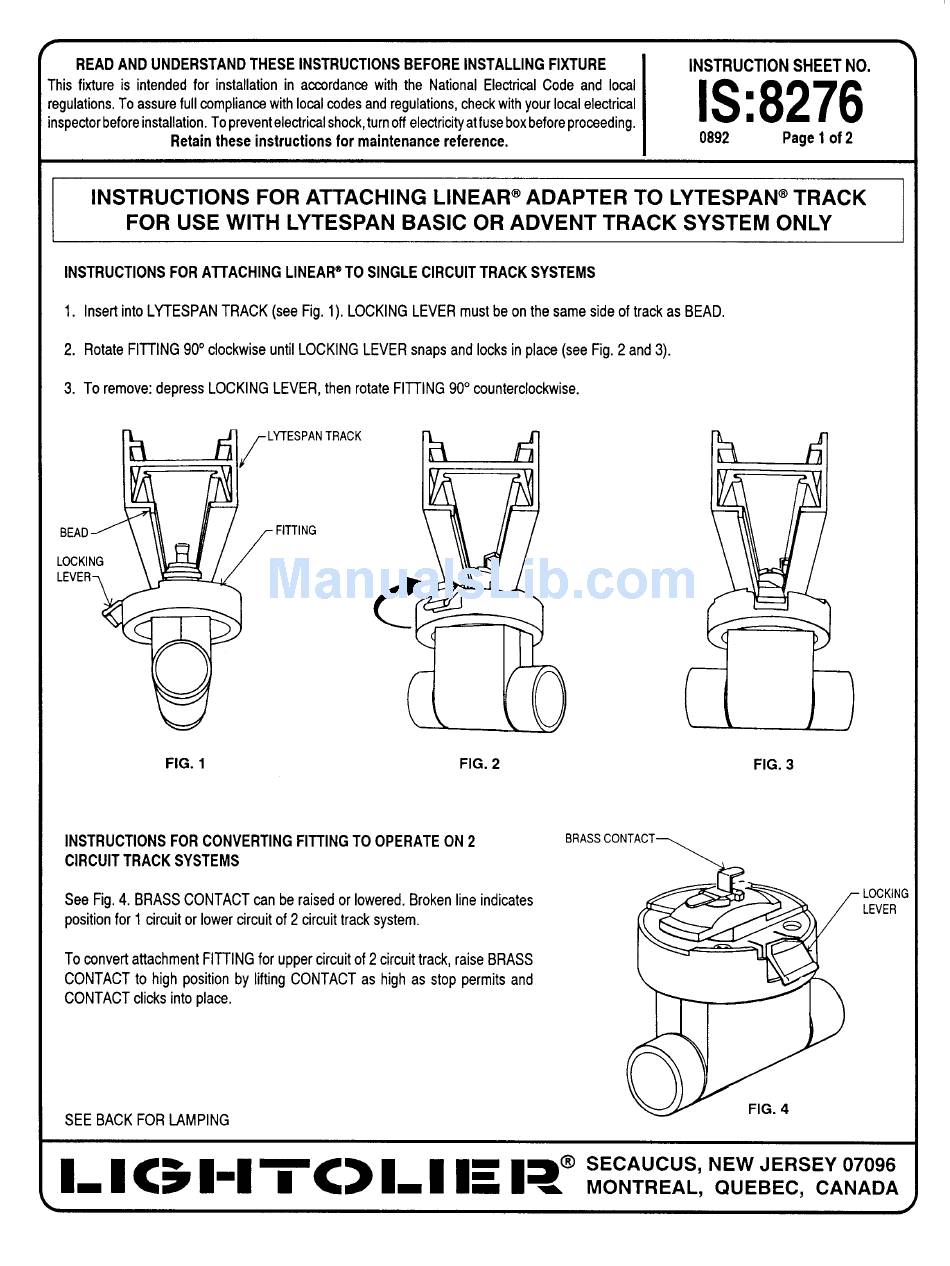

INSTRUCTIONS FOR ATTACHING LINEAR" ADAPTER TO LYTESPAN@ TRACK
FOR USE WITH LYTESPAN BASIC OR ADVENT TRACK SYSTEM ONLY
INSTRUCTIONSFOR AllACHING LINEAR" TO SINGLE CIRCUITTRACK SYSTEMS
1. Insert into LYlESPAN TRACK (see Fig. 1). LOCKINGLEVER must be on the same side of track as BEAD.
2. Rotate FITTING90° clockwise until LOCKINGLEVER snaps and locks in place (see Fig.
2
and 3).
3. To remove: depress LOCKING LEVER, then rotate FITTING 90° counterclockwise.
YTESPANTRACK
FITTING
FIG. 1 FIG. 2
FIG. 3
INSTRUCTIONSFOR CONVERTINGFITTINGTO OPERATE ON 2
BRASSCON
CIRCUITTRACK SYSTEMS
See Fig. 4. BRASS CONTACTcan be raised or lowered. Broken line indicates
LOCKING
position for 1 circuit or lower circuit of 2 circuit track system.
LEVER
To convert attachment FllTING for upper circuit of 2 circuit track, raise BRASS
CONTACT to high position by lifting CONTACT as high as stop permits and
CONTACT clicks into place.
SEE BACK FOR LAMPING
1- I <>1-1
TC> 14 E [2" ER'#E?lH'K~TR;;
