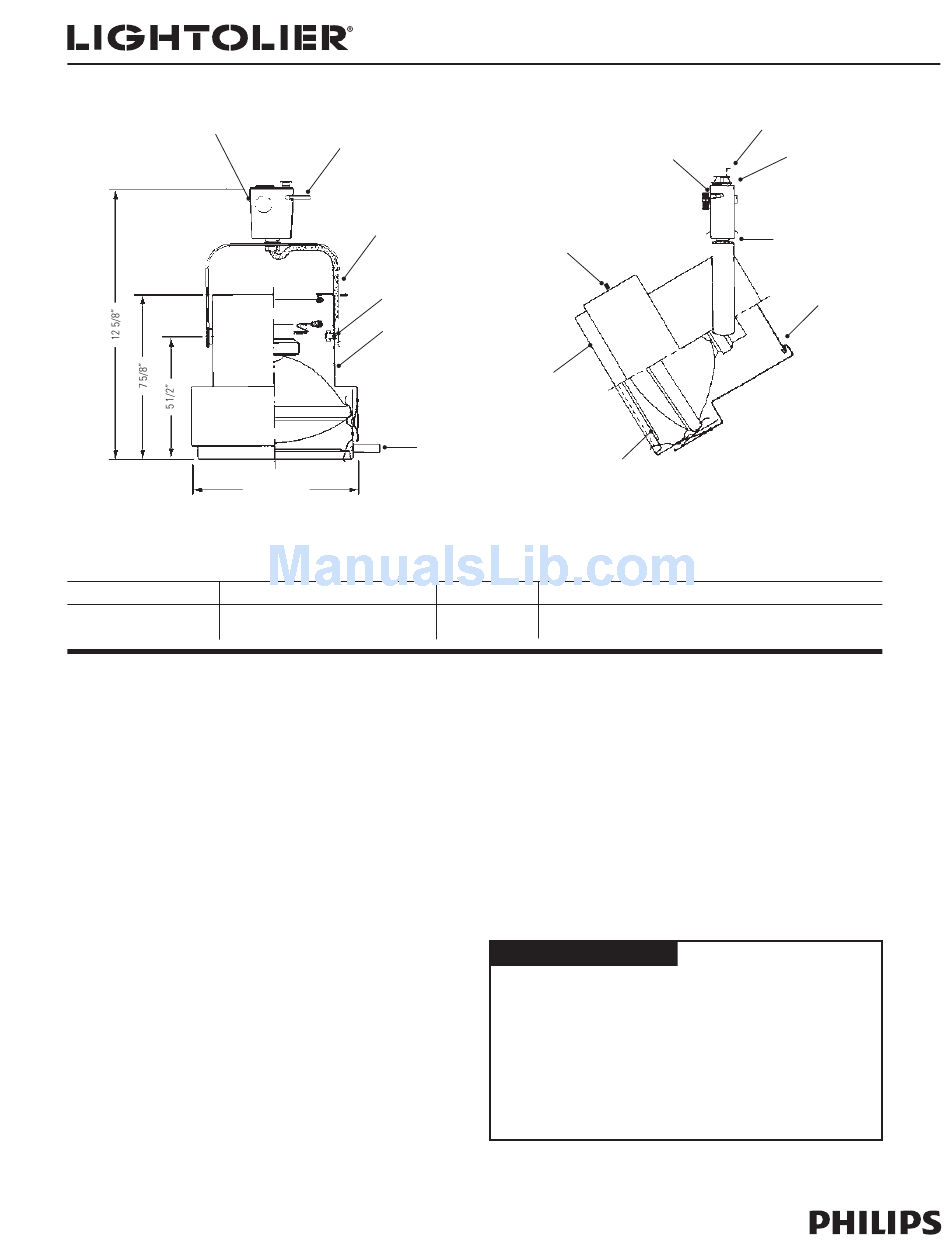

Lightolier Lytespan 7529 Specification

Page 1 of 2
Ordering Information
Catalog No.
7529
7539
Features
1. Lytespan Attachment Fitting: Molded polycarbonate .075" wall thickness.
Integral color.
2. Housing: .040" aluminum.
3. Expansion Clamp: Fingertip squeeze-release for quick attachment;
thumbscrew lock for rigid mounting.
4. Rotating Lampholder Assembly: Facilitates orientation of oval beam
patterns; .040" aluminum; rotates on spring-loaded ball detents; snaps out
for lamp replacement. 350° stop. Insulated knob for adjustment.
5. Pivot Mounting: Permanently-tensioned; 350° stop for horizontal
adjustment.
6. Trunion Mounting: Permanently-tensioned with internal spring washer and
vibration-resistant nut.
7. Movable Brass Contact: Extends for connection to 2nd circuit in Advent
Lytespan Track.
8. Lever: Energizes unit.
9. Yoke: .093" steel.
10. Perforated Metal Disk
11. Regressed Filters, Lenses, Etc.: Retained by spring clips.
12. Phenolic Turn Knob
13. Polarity Keyway
14. Locking Knob: Locks lamp rotation.
Electrical
No. 18 braided SF-1 leads to porcelain mogul end-prong connector.
Lightolier is a Philips group brand
1
8
9
6
2
7 3/4" Dia.
Mountings
All Lytespan Track Systems
Lytespan Track Lighting System
®
14
4
12
Finish Lamps
Matte Black 300W PAR56 (Cool Beam also), 500W PAR56 (Tungsten-Halogen)
Matte White
Options & Accessories
6 1/4" Dia. Series Louvers, Filters, and Barn Doors (see Lightolier Specification
sheets AL4CC and 7650).
Finish
All painted finishes baked enamel.
Labels
UL, I.B.E.W.
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2008 Philips Group • C0508
