Lightolier Calculite CS8232 Specification

Calculite
Page 1 of 2
2
3
4
1
8 3/4" Dia. (222 mm)
11 1/4" Dia. (286 mm)
Complete Fixture Ceiling Mount
CS8242HUCL Clear Iridescence Free Reflector,
White Housing
Complete Fixture Wall Mount
CW8242HUCL Clear Iridescence Free Reflector,
White Housing

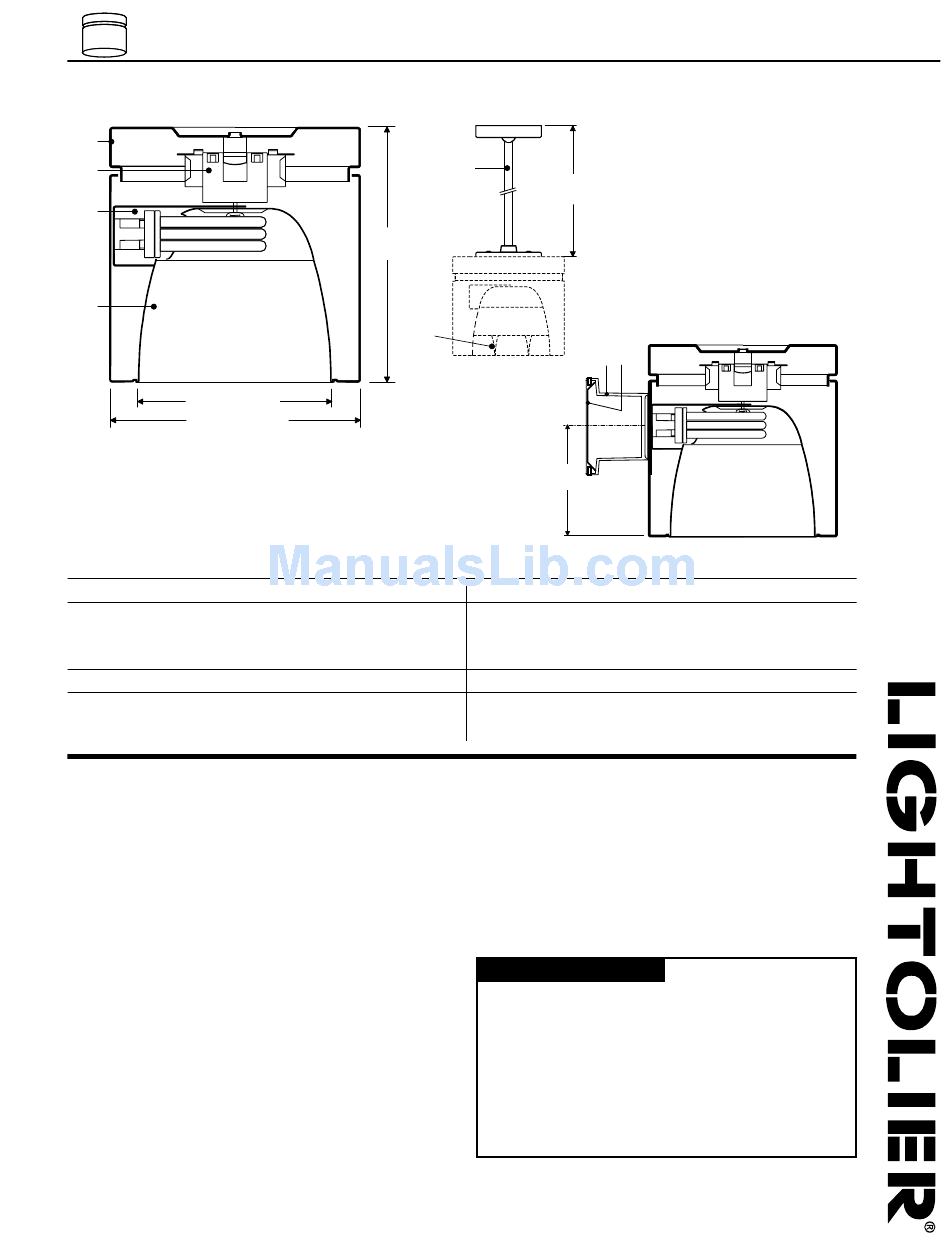

Features
1. Reflector: 16 ga. Specular Alzak
®
lamp image, wide distribution. Iridescence Free finish.
2. Housing: Seamless, heavy-gauge aluminum. Two part construction provides
ventilation. Returned edge precisely seats reflector. Matte white finish.
3. Ballast: Mounted on support bracket, can be easily removed for service.
4. Socket Bracket: Die-formed steel. Attaches to reflector for correct optical
alignment.
5. Stem Kit: Cat. No. FA CSA36: Provided with 1/2 dia. stem and 5 1/2 dia.
canopy. Self aligning swivel provides maximum 40° vertical adjustment.
Installs over 4" octagonal outlet box. Stem can be cut to length on site.
Matte white baked enamel finish.
6. (Optional) Turbo Louver: (not shown) Specular clear Alzak
reflector with removable radial louver assembly combines good efficiency
with a shield aperture, 50° cutoff to lamp.
7. Crossbar: Install over 4 octagonal or rectangular outlet box.
8. Bracket: One piece cast aluminum with integral backplate.
Electrical
Note: For ballast electrical data and latest lamp/ballast compatibility refer to
"Ballast" specification sheet for complete electrical data.
UL listed for 90° C supply conductors.
® Compact Fluorescent Surface Cylinder
11 1/2"
(292 mm)
6
120V - 277V
120V - 277V
aluminum, 55° visual cutoff to lamp and
® aluminum deep
8" Aperture Triple Tube (4-Pin) Ceiling & Wall Mount
5
37 3/4"
(959 mm)
7 8
6 1/2"
(165 mm)
Lamp
(2) 26/32/42W Triple Tube 4-Pin
(Amalgam)
Lamp
(2) 26/32/42W Triple Tube 4-Pin
(Amalgam)

Options and Accessories

Fuse (Slow Blow) Add Suffix F
Turbo Louver Add Suffix TB
Reflector Finishes: Consult Factory
Other Housing Finishes: Consult Factory
Labels
UL listed for damp locations, I.B.E.W.
Alzak ® is a registered trademark of ALCOA.
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
