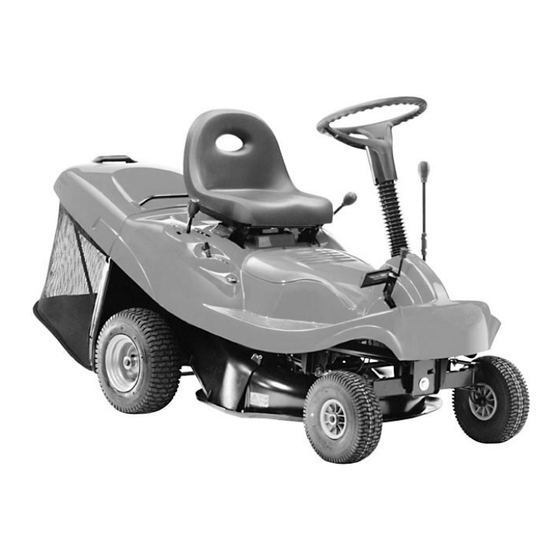

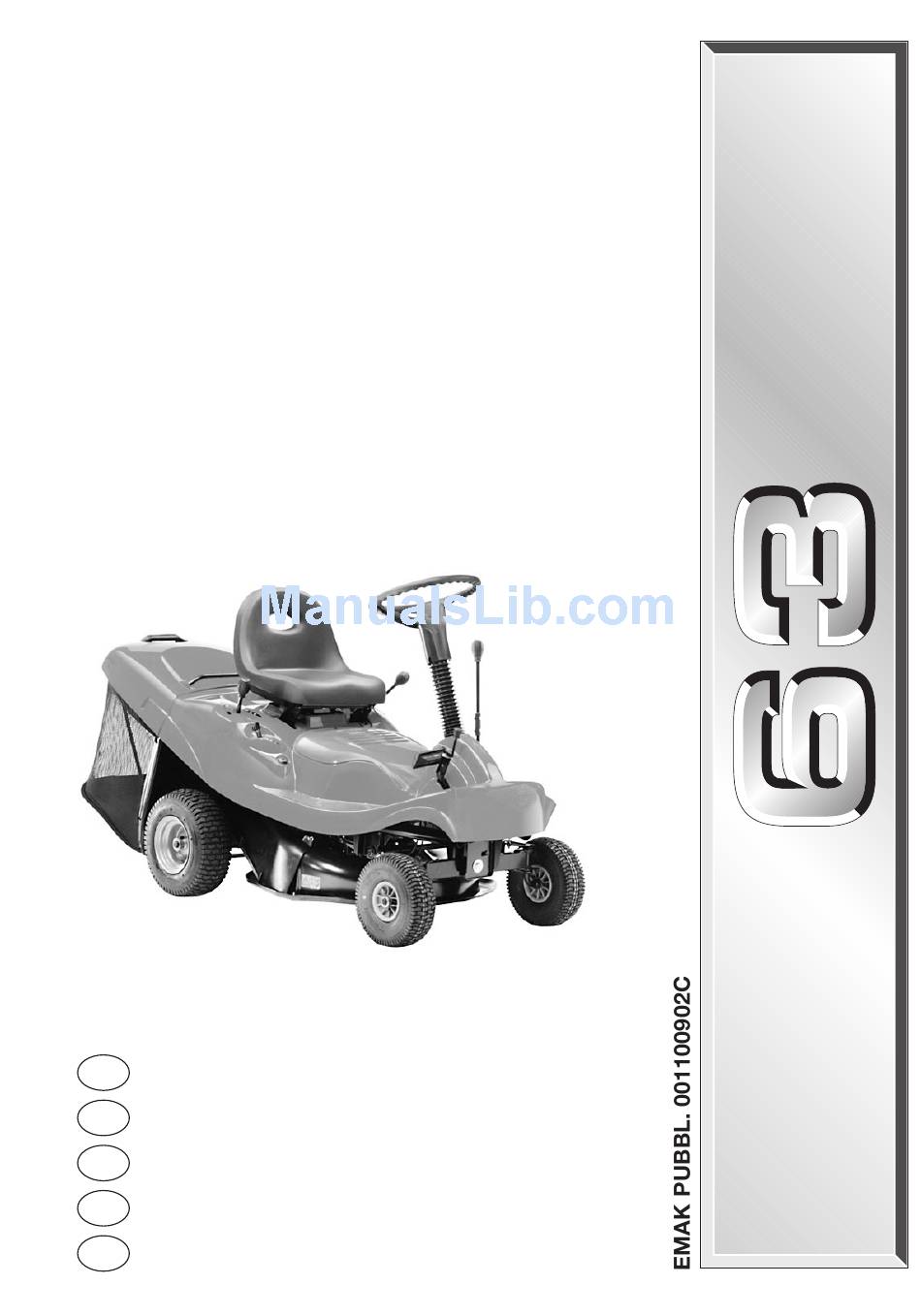

- Page 1 TONDEUSE AUTOPORTÉE “RIDER” RIDING MOWER ZITMAAIER “RIDER” AUFSITZMÄHER “RIDER” RASAERBA “RIDER” MANUEL D’UTILISATION OPERATOR’S MANUAL GEBRAUCHSANWEISUNG MANUALE DI ISTRUZIONI GEBRUIKERSHANDLEIDING 71505055/3...
-
Page 3: After Sales Service
INTRODUCTION EN 1 INTRODUCTION Dear Customer, Thank you for having chosen one of our products. We hope that you will get com- plete satisfaction from using your new machine and that it will fully meet all your expectations. This manual has been compiled in order that you may get to know your machine and to be able to use it safely and efficiently. -
Page 4: Table Of Contents
EN 2 TABLE OF CONTENTS 1. SAFETY ... 3 Regulations for using the machine safely 2. IDENTIFICATION OF THE MACHINE AND COMPONENTS ... 6 Explanations on how to identify the machine and its main components 3. UNPACKING AND ASSEMBLY ... 8 Explanations on how to remove the packing and on how to assemble separated parts 4. -
Page 5: Safety
SAFETY SAFETY 1.1 HOW TO READ THE MANUAL This manual describes various versions of the machine, which mainly differ in: – the inclusion of components or accessories which may not be available in some areas; – special equipment fitted. ➤ The symbol highlights all the differences in usage and is followed by the indi- cation of the version that it refers to. -
Page 6: Safety Regulations
EN 4 1.2 SAFETY REGULATIONS (read carefully before using the machine) A) TRAINING 1) Read the instructions carefully. Be familiar with the controls and the proper use of the equipment. 2) Never allow children or people unfamiliar with these instructions to use the machine. Local regulations can restrict the age of the operator. -
Page 7: Safety Labels
SAFETY before restarting and operating the equipment; – If the machine starts to vibrate abnormally (inspect it immediately). 11) Disengage the blade when transporting or whenever it is not in use. 12) Stop the engine and disengage the blade: – before refuelling; –... -
Page 8: Identification Of The Machine And Components
EN 6 IDENTIFICATION OF THE MACHINE AND COMPONENTS 2.1 IDENTIFICATION OF THE MACHINE The identification label located under the seat has the essential data of each machine. The serial number (7) must be quoted when you require technical assistance or spare parts. - Page 9 IDENTIFICATION OF THE MACHINE AND COMPONENTSI 13. Collector channel: this is the part connecting the cutting deck to the grass- catcher. 14. Grass-catcher: as well as collecting the grass cuttings, this is also a safety element in that it stops any objects drawn up by the blade from being thrown outside of the machine.
-
Page 10: Unpacking And Assembly
EN 8 UNPACKING AND ASSEMBLY IMPORTANT The machine is supplied without engine oil or fuel. Before starting up the engine, fill with oil and fuel following the instructions given in paragraph 5.3.3. and in the engine manual. For storage and transport reasons, some components of the machine have to be assembled after their removal from the packing. -
Page 11: Fitting The Seat
UNPACKING AND ASSEMBLY 3.3 FITTING THE SEAT 1. Fit the seat (1) onto the plate (2) using the screws (3). 3.4 FITTING THE BLADE ENGAGEMENT LEVER 1. Fit the end of the lever (1) on the projecting part of the pin (2) and fix it all by tightening the screw (3) and nut (4). -
Page 12: Fitting The Grass-Catcher
EN 10 3.6 FITTING THE GRASS-CATCHER Identify the screws to be used by following the drawing that shows them in their actual size. 1. Fit the upper frame (1) in the upper slots (2) of the canvas cover (3); 2. join the two pieces of the frame (1) and (4) using the screws (5). Fit the two tie rods (6) and fasten them by using the screws (7);... -
Page 13: Controls And Instruments
CONTROLS AND INSTRUMENTS CONTROLS AND INSTRUMENTS 4.1. S TEERING WHEEL Turns the front wheels. 4.2 C LUTCH BRAKE PEDAL This pedal has a double function: during the first part of its travel it acts as a clutch, engaging and disengaging drive to the wheels, and in the second part it works the brake. - Page 14 EN 12 two positions: «A» = Brake off «B» = Brake engaged – The brake is engaged by pressing the pedal (4.3) right down and moving the lever to position «B». When you take your foot off the pedal it will be blocked by the lever in the down position.
- Page 15 CONTROLS AND INSTRUMENTS ➤ In the electric start models 4.11 K EY IGNITION SWITCH This key operated control has three positions: «OFF» everything is switched off; «ON» activates all parts; «START» engages the starter motor. On being released at the «START» position, the key will automatically return to «ON».
- Page 16 EN 14 Then put the handle back in its seat, guiding the cable as it automatically rewinds. 4.22 A CCELERATOR LEVEL It regulates the rpm and stops the engine. The positions are indicated on the plate showing the following symbols: «OFF»...
-
Page 17: How To Use The Machine
HOW TO USE THE MACHINE HOW TO USE THE MACHINE 5.1 SAFETY RECOMMENDATIONS DANGER! The machine must only be used for the purpose for which it was designed (cutting and collection of grass). Do not tamper with or remove the safety devices fitted to the machine. REMEMBER THAT THE USER IS ALWAYS RESPONSIBLE FOR DAMAGE AND INJURIES TO OTHERS. -
Page 18: Preliminary Operations Before Starting Work
EN 16 a) The engine must only be started in the following conditions: – the transmission is in “neutral”; – the blade is not engaged; – the operator is seated or the parking brake is engaged. ( machines with B&S engine) b) The engine stops when: –... - Page 19 HOW TO USE THE MACHINE 5.3.3 F ILLING WITH OIL AND FUEL DANGER! Refuelling should be carried out in an open or well-venti- lated area with engine stopped. Always remember that petrol fumes are inflammable. DO NOT TAKE A NAKED FLAME TO THE TANK’S OPENING IN ORDER TO SEE THE TANK’S CONTENTS AND DO NOT SMOKE WHEN REFUELLING.
- Page 20 EN 18 5.3.4 F ITTING THE PROTECTIONS AT THE EXIT GRASS CATCHER WARNING! Never use the machine without having fitted the exit protection! Hook the grass-catcher (1) onto the brackets (2) and centre it up with the rear plate, so that the two reference marks (3) coincide.
-
Page 21: Using The Machine
HOW TO USE THE MACHINE 5.4 USING THE MACHINE 5.4.1 S TARTING THE ENGINE DANGER! All starting operations have to be effected in an open or well-ventilated area! ALWAYS REMEMBER THAT EXHAUST GASES ARE TOXIC! To start the engine: 1. sit on the seat and press the brake pedal right down (☛ 4.3); 2. - Page 22 EN 20 malfunction persist, refer to chapter «7» of this manual and the engine manu- 5.4.2 S TARTING AND MOVING WITHOUT MOWING WARNING! This machine has not been approved for use on public roads. It has to be used (as indicated by the highway code) in private areas closed to traffic.
- Page 23 HOW TO USE THE MACHINE 5.4.5 G RASS CUTTING IMPORTANT The machine is not designed for heavy-duty use or for mow- ing large quantities of grass. IMPORTANT The blade is engaged by means of a clutch device. To avoid damage or premature wear of the friction elements, strictly observe the follow- ing instructions.
- Page 24 EN 22 must be reduced to ensure safe conditions ( ☛ 1.2 - 5.5). – Lower the speed whenever you note a reduction in engine speed, since a for- ward speed that is too fast compared to the amount of grass being cut will never mow the grass well.
- Page 25 HOW TO USE THE MACHINE 5.4.8 E ND OF MOWING When you have finished mowing, disengage the blade, lower the engine speed and ride the machine with the cutting deck in the highest position. 5.4.9 E ND OF WORK Once you have finished mowing, stop the machine and engage the parking brake. ➤...
- Page 26 EN 24 must be on firm ground: 1. fit the grass-catcher; 2. connect a water hose to its pipe fitting (1), and run water through it; 3. sit at the operator’s position; 4. lower the cutting deck completely; 5. start the engine and stay in neutral; 6.
-
Page 27: Using On Slopes
HOW TO USE THE MACHINE (1) and reached by the right-hand side above the collector channel. Then remember to recon- nect the tube. The next time the machine is used, check that there are no fuel leaks from the tubes or carbu- rettor. -
Page 28: Advice On How To Obtain A Good Cut
EN 26 never be lifted by rope and tackle. During transport, lower the cutting deck, engage the parking brake and fasten the machine securely to the hauling device with ropes or chains. 5.7 ADVICE ON HOW TO OBTAIN A GOOD CUT 1. -
Page 29: Maintenance
MAINTENANCE MAINTENANCE 6.1 SAFETY RECOMMENDATIONS WARNING! Disconnect the spark plug cap, remove the key ( the electric start models) or shift the accelerator lever to «OFF» ( the manual start models) and read the relevant instructions before start- ing any cleaning, maintenance or repairs. Wear suitable clothing and strong gloves for dismantling and refitting the blade and in all other haz- ardous situations for the hands. -
Page 30: Routine Maintenance
EN 28 rying out any type of work on it and avoid operations which may cause it to fall over. 6.2 ROUTINE MAINTENANCE 6.2.1 M AINTENANCE AND GENERAL LUBRICATION Follow the diagram showing the points requiring checks, lubrication and routine maintenance, together with the type of lubricant to be used and the frequency required. - Page 31 MAINTENANCE 6.2.3 E NGINE Follow all the instructions in the engine man- ual. To drain the engine oil: 1. unscrew the topping up cap (1); 2. fit the pipe (2) onto the syringe (3) and insert it right into the hole; 3.
-
Page 32: Checks And Adjustments
EN 30 which is to be connected to the corresponding connector of the special “CB02” maintenance battery charger supplied. IMPORTANT only be used for connecting to the “CB02” maintenance battery charger. For its use: – follow the instructions given in the rela- tive instructions manual;... - Page 33 MAINTENANCE 6.3.2 C UTTING DECK ALIGNMENT The cutting deck should be properly set to obtain a good cut. NOTE To achieve good results from cutting, the front part should always be 5 - 6 mm lower than the rear. 1. Put the machine onto a flat surface and check the tyre pressure;...
- Page 34 EN 32 6.3.4 B RAKE ADJUSTMENT If the braking distance lengthens, the brake will need adjusting. The adjustment will need to be made with the parking brake ENGAGED. 1. Remove the collector channel (1), which is fixed by a pin (2) and split pin (3);...
-
Page 35: Dismantling And Replacement
MAINTENANCE 4. check that the spring (7) of the engagement cable is not too taut or too loose. Other- wise, turn the adjusting nut (8) until the spring reaches the right condition. 5. check the measurement of the spring (6) again;... - Page 36 EN 34 6.4.3 E LECTRIC AND PROTECTION SYSTEM ➤ In the electric start models: The electric system and the electronic card are protected by a fuse. When it blows the machine stops, so in this case: 1. tighten the two screws (1) that fasten the box (2) containing the card, and hold up the lower part to prevent it from falling;...
-
Page 37: Troubleshooting
TROUBLESHOOTING TROUBLESHOOTING PROBLEM LIKELY CAUSE 1. With the key Electronic card blocked due to: on «START» the starter motor does not run – flat battery or sulphated battery plates – fuse blown – bad earthing to the engine or the frame –... - Page 38 EN 36 PROBLEM LIKELY CAUSE 4. The engine – earth connections of the microswitches does not start disconnected – you are not ready for starting – faulty fuel supply – faulty ignition 5. The engine – earth connections of the microswitches stops disconnected 6.
- Page 39 TROUBLESHOOTING PROBLEM LIKELY CAUSE 9. Uneven cut and – cutting deck not parallel to the ground poor grass collection – blade cutting badly – forward speed too high compared to height of grass – collector channel is blocked – cutting deck full of grass 10.
-
Page 40: Accessories On Request
EN 38 ACCESSORIES ON REQUEST ACCESSORIES ON REQUEST 1. KIT FOR “MULCHING” It finely chops the grass cuttings and leaves them on the lawn, instead of collecting them in the grass- catcher. -
Page 41: Specifications
SPECIFICATIONS SPECIFICATIONS ➤ Electrical system ( ➤ Battery ( Only in the electric start models) ... 7,2 Ah Front tyres ...11 x 4.00-4 Rear tyres ... 13 x 5.00-6 Front tyre pressure ... 1.8 bar Rear tyre pressure ... 1.3 bar Overall weight ... - Page 42 ##### EMAK s.p.a. - Member of the YAMA group 42011 BAGNOLO IN PIANO (REGGIO EMILIA) ITALY TEL. 0522 956611 - TELEFAX 0522 951555 EMAIL service@emak.it - INTERNET http://www.emak.it Realizzazione: EDIPROM / bergamo - PRINTED IN ITALY...
