Hitachi HIT15WDVB Instruction Manual

15.4”/19” widescreen lcd tv with integrated digital tuner
Hide thumbs

Advertisement

Instruction Manual

15.4"/19" Widescreen LCD TV With Intergrated Digital Tuner
HIT15WDVB
HIT19WDVB
GB

Advertisement

loading

  Related Manuals for Hitachi HIT15WDVB

  Summary of Contents for Hitachi HIT15WDVB

  • Page 1: Instruction Manual

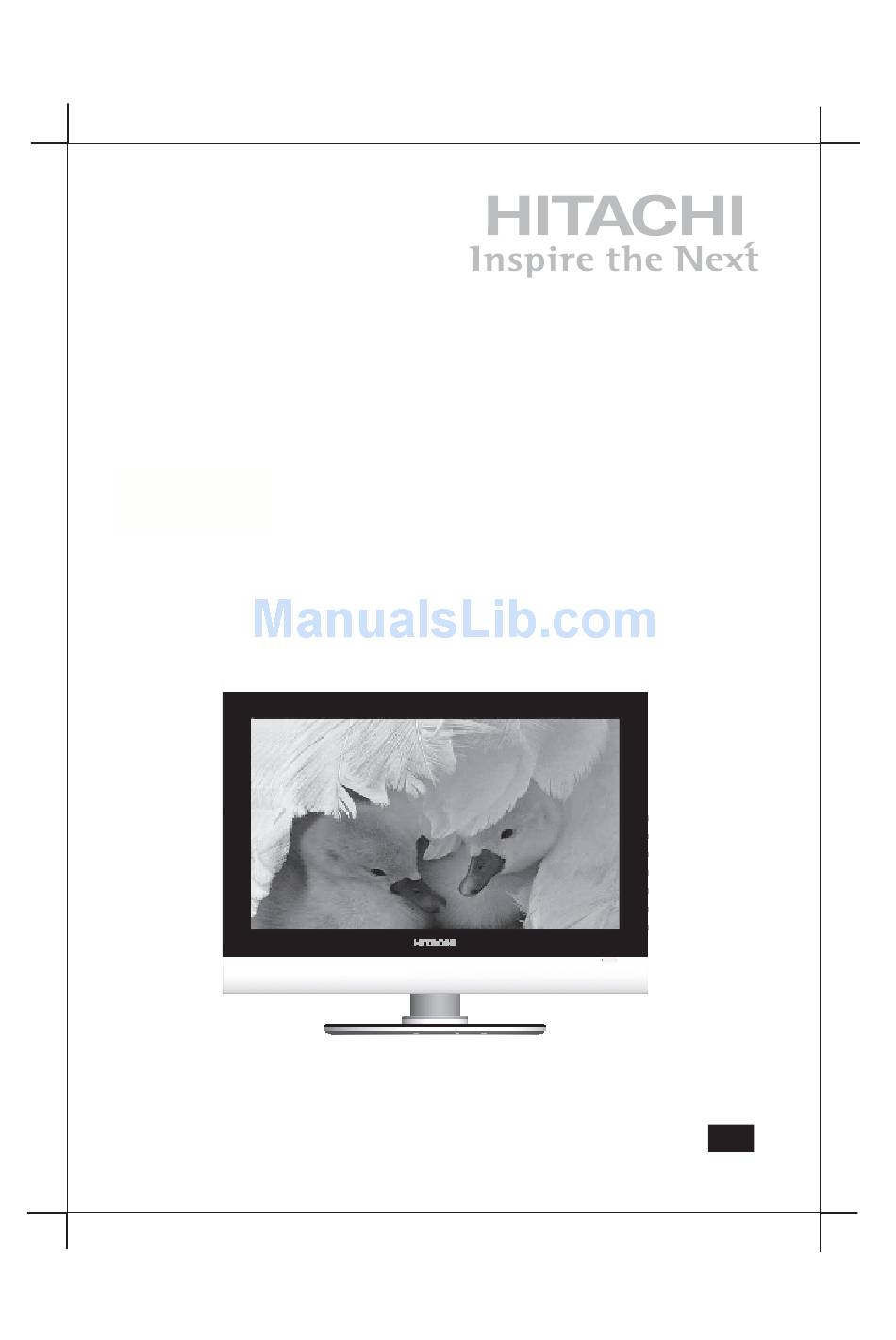

    Instruction Manual 15.4”/19” Widescreen LCD TV With Intergrated Digital Tuner HIT15WDVB HIT19WDVB...
  • Page 2: Safety Warnings

    Safety Warnings SOME DO’S AND DON’TS ON THE SAFE USE OF EQUIPMENT This equipment has been designed and manufactured to meet international safety standards but, like any electrical equipment, care must be taken if you are to obtain the best results and safety is to be assured.
  • Page 3: Preparation

    Safety Warnings Power Source an electric heater. Ensure that no open flame sources, such as lighted candles, are placed The TV set should be operated only from a 220-240 V AC, 50Hz outlet. Ensure that you on top of the TV. Batteries should not be select the correct voltage setting for your exposed to excessive heat such as sunshine, fire or the like.
  • Page 4: Table Of Contents

    Contents Preparation ..........................1 Safety Instructions ........................1 Chapter 1 Introducing The LCD TV ..................3 Package Contents ........................3 Setting Your LCD TV ........................4 Your LCD TV ..........................5 Remote Control..........................8 Chapter 2 Installing The LCD TV ..................10 Connecting a TV Cable or an Anterial ..................
  • Page 5: Chapter 1 Introducing The Lcd Tv

    Chapter 1 Introducing The LCD TV Once you open the box, make sure all of the following contents are included. If you’re missing any items, please contact your dealer. PACKAGE CONTENTS LCD TV Bottom Stand Remote Control/ VIDEO Cable AUDIO Cable AAA Batteries x 2 ( P.N.:845-045-LM9XB-THITH ) ( P.N.:621-151-2000H )
  • Page 6: Setting Your Lcd Tv

    Setting Your LCD TV How to install the TV Stand If you prefer to mount your new TV on a wall instead of attaching it to the stand, please reference the instructions included in the wall mounting kit ( not included ). Ensure the TV stand is still attached with the bottom foam packaging material in the package.
  • Page 7: Your Lcd Tv

    Your LCD TV How to setup the TV Use an antenna cable to connect the VHF / UHF signal to the LCD TV’s ANT. terminal ( refer to page 13 ). Connect the AC power cord at the back of the TV and connect the power cord to wall outlet. Insert the 2 batteries supplied in remote control.
  • Page 8 Your LCD TV Front / Right Side View The LED light indicates when the LCD TV is activated. VOL.+ VOL. MENU INPUT Infrared Receiver VOL. + / - Connect to the external earphone Adjust the volume up and down. for private listening. Select the main-menu item and change values for items when in the OSD mode.
  • Page 9: Rear View And Jacks

    Your LCD TV Rear View and Jacks AC IN 100-240V AC POWER VHF/UHF IN 50/60Hz SWITCH PC AUDIO IN VHF/UHF IN AC IN 100-240V AC POWER 50/60Hz SWITCH PC AUDIO IN ITEM DESCRIPTION Connect the AC power cord to this socket. Make sure that this 1 AC IN/Power Switch switch is in the ON position.
  • Page 10: Remote Control

    Your Remote Control Your Remote Control Turn the LCD TV on and into standby mode. Mute and restore your LCD TV sound. I-II Cycle through the TV Sound options: MONO / DUAL / STEREO. This function is not available for this model. Select and switch to a channel by using 0-9 buttons.
  • Page 11: Your Remote Control

    Your Remote Control Your Remote Control INPUT Display the source list, use buttons to select the signal sources: TV / AV1 ( SCART ) / AV2 ( S-VIDEO ) / AV3 (CVBS) / AV4 ( Y,Pb,Pr ) / AV5 ( VGA ) / AV6 ( HDMI ) / DTV. EXIT Exit the OSD menu.
  • Page 12: Chapter 2 Installing The Lcd Tv

    Chapter 2 Installing The LCD TV Refer to the owner’s manual of any external equipment for connection procedures. When connecting any external equipment, do not connect any AC power cords to wall outlets until all other connections are completed. CONNECTING A TV CABLE OR AN ANTENNA Antenna Connection The antenna requirement for good colour TV reception is more important than those for a black &...
  • Page 13: Connecting A Tv Cable Or An Antenna

    Connecting a TV Cable or an Antenna Cable TV ( CATV ) Connection A 75-ohm coaxial cable connector is built into the set for easy hookup. When connecting the 75-ohm coaxial cable to the set, connect the 75-ohm cable into the ANT.
  • Page 14 Connecting a TV Cable or an Antenna The STANDBY button on the right side view of LCD TV and also on the remote control is only used for powering up and switching the TV to standby mode, it does not disconnect the device from the mains supply.
  • Page 15 Connecting a TV Cable or an Antenna Refer to the owner’s manual of the external equipment to be connected. When connecting external equipment, do not connect any AC power cords to wall outlets until you have completed all the connections. Basic Connection: Connecting an aerial Make sure the power switch is switched off...
  • Page 16: Connecting A Dvd Player

    Connecting a DVD Player Rear View of TV VHF/UHF IN AC IN 100-240V AC POWER 50/60Hz SWITCH PC AUDIO IN Audio Audi ideo Video/Audio Cable DVD PLAYER METHOD A ( AV3 ) Use an A/V cable to connect the VCR’s/ VIDEO camera’s composite output sockets to your LCD TV.
  • Page 17: Connecting A Vcr & Video Camera

    Connecting a VCR & Video Camera Rear View of TV VHF/UHF IN AC IN 100-240V AC POWER 50/60Hz SWITCH PC AUDIO IN Audio Audi ideo Video/Audio Cable VCR PLAYER VIDEO CAMERA METHOD A ( AV3 ) Use an A/V cable to connect the VCR’s / VIDEO CAMERA’s composite output sockets to your LCD TV.
  • Page 18: Connecting A Tv Cable Box Or Satellite Receiver

    Connecting a TV Cable Box or Satellite Receiver Rear View of TV VHF/UHF IN AC IN 100-240V AC POWER 50/60Hz SWITCH PC AUDIO IN Audi Audio ideo HDMI CABLE Video/Audio Cable VGA CABLE SATELLITE ANTENNA CABLE SATELLITE RECEIVER TV CABEL BOX Method A ( AV3 ) : Use an A/V cable to connect the TV Cable Box’s composite output sockets to your LCD TV.
  • Page 19: Connecting An Audio Receiver

    Connecting an Audio Receiver For better sound quality, you may want to play the LCD TV audio through your stereo system. Rear View of TV VHF/UHF IN AC IN 100-240V AC POWER 50/60Hz SWITCH PC AUDIO IN Digital out Cable Use an audio cable to connect the audio receiver’s audio LINE-IN sockets to LCD TV’s DIGITAL OUT sockets (Only for DVB-T Input Source).
  • Page 20: Hdmi

    HDMI This TV can accept High-Definition Multimedia Interface ( HDMI ). This TV SET supports HDCP ( High-Bandwidth Digital Content Protection ) Protocol for TV SET ( 480p, 576p, 720p, 1080i ) modes. When you connect to the output of an HD ready player ( DVD Player, Set Top Box or PC ) switch to the AV6 ( HDMI ) function and the TV will automatically detect the resolution used by the HDMI source.
  • Page 21: Chapter 3 Using The Features

    Chapter 3 Using The Features BASIC OPERATION Tuning in the TV channels After connecting an aerial to your LCD TV and connecting the mains cable to the TV and 100-240 V AC mains socket, turn the POWER SWITCH of rear TV on, a red light will show on the front centre panel of the TV.
  • Page 22: Osd Menu Operation

    OSD Menu Operation 1 The main menu provides access to the following menus: Video Adjust picture setting such as Picture Mode, Contrast, Brightness, Colour, Tint(NTSC), Sharpness, and Advanced. Audio Adjust Volume and Balance. Setup Adjust Colour Standard, Sound Standard, APS, Manual Search, and Channel Setup. Preferences Adjust preferences such as OSD, Blue Screen, Childlock, Sleep Timer, OSD Timer,...
  • Page 23: The Video Settings

    OSD Menu Operation VIDEO OPTION DESCRIPTION Video Display Allow you to select Advanced Mode the display mode to be Wide, 4:3, Original, or Zoom. (Only under the TV / SCART / S-Video / Video /DTV source) Allow you to adjust the (Dynamic Contrast Colour Temp Enhancement) to be Off,...
  • Page 24: The Setup Settings

    OSD Menu Operation SETUP (Analogue TV) Setup menu is only available when viewing Analogue TV. Use this Setup menu to select Colour Standard, Sound Standard, APS, Manual Search, Channel Setup. Use the buttons to highlight the required setting. Press OK button to select the function. Use buttons to adjust the settings.
  • Page 25: The Preferences Settings

    OSD Menu Operation PREFERENCES Use this Preferences setting menu to set up some features: OSD, Blue Screen, Childlock, Sleep Timer, OSD Timer, and OSD Reset. OPTION DESCRIPTION Language : Allow you to select the OSD to be English / French / Italian / Danish / Finnish / Swedish / Greek / Polish / Czech / Hungarian / Norwegian.
  • Page 26: Chapter 4 Using The Dtv Features

    Chapter 4 Using The DTV Features DTV SERVICES If you set DTV as your input source, but your local area does not have digital signal, the TV will display the DTV menu only. To leave the DTV menu, press VOL +/- buttons and then the INPUT button, you will then allow to choose the External Input in the Navigator menu.
  • Page 27 Using The DTV Features Create a favourite list F AV 1 B B C O NE B B C TWO B B C THR EE C B B C C hannel B B C NEWS 24 B B C i L ock Sk ip Sor t M ov e...
  • Page 28 Using The DTV Features When you have completed the edit, press the EXIT button to leave the Modify a Favourite list menu. The pop-up menu will ask whether you want to save the changes you have made. Use the buttons to highlight YES option, and press the OK button to save the changes.
  • Page 29 Using The DTV Features CONFIGURATION Highlight the Configuration option in the DTV menu, then press OK button to enter the selected option. The Configuration menu will display as display as following: Con f ig u ration Ch a n n e l I n st a l l a t i o n U se r S e tt i n g s S y st e m P a r a m e t e r s S i g n a l I n fo r m a t i o n...
  • Page 30 Using The DTV Features CHANNEL INSTALLATION (MANUAL) If you want to install the channels by yourself, use the buttons to highlight the Channel Installation (manual) option, and press OK button to install manually. First, you should choose the installation type, then you will see the following menu.
  • Page 31 Using The DTV Features After you added the new channel, use the buttons to highlight the New Detected Channels menu and press OK button to confirm. It will display the following menu. The New Detected Channels menu shows the channels that you add in the channel list recently. The type icon of the program is displayed against the channel name.
  • Page 32 Using The DTV Features SYSTEM UPGRADE Highlight the System Upgrade option in the System Parameter menu, and press OK button to display the System Upgrade menu. Use buttons to choose YES/NO for software upgrade, press OK button to confirm or EXIT button to exit the menu screen. S ys te m U p g ra d e S ys te m Pa ra m e te rs Conf iguration...
  • Page 33: Parental Control

    Using The DTV Features SIGNAL INFORMATION Highlight the Signal Information option in the Configuration menu, press OK button to display the Signal Information menu. Cycle through the channel options by pressing the buttons on the remote control. The bar graph of signal quality will give a good indication on whether the selected channel is likely to be found.
  • Page 34 Using The DTV Features CONFIGURATION MENU Use the buttons to choose between YES and NO. If you choose the YES option, you will need to enter the PIN CODE before re-entering the Configuration menu. D TV D TV D TV D TV D TV Con f ig u ration...
  • Page 35 Using The DTV Features Press the RED button will to pop-up the PIN code change menu. Enter the previous code by using the 0-9 buttons on the remote control, then enter the new code twice to confirm. This menu will disappear. Press EXIT to quit without saving the new code.
  • Page 36: Troubleshooting

    Troubleshooting Before consulting service personnel, check the following chart for a possible cause of problem and for a possible solution. TV will not turn on Make sure the power cord is plugged in. The batteries in the remote control may be exhausted. Replace new and same brand batteries.
  • Page 37: Specifications

    Specifications KEY FEATURES Various Audio/Video terminals for external equipment connection 1 set of composite A / V input terminals 1 SCART input terminals 1 set of component Video input terminals 1 VGA / Audio input terminal 1 HDMI / Audio input terminals 1 Headphone terminal High Definition Multimedia Interface ( HDMI ) High Definition Multimedia Interface ( HDMI ) is a small, user-friendly interconnect that can carry up...
  • Page 38: Display Modes

    Specifications DISPLAY MODES The screen resolution has been optimized during production for the display modes listed below. If the signal from the system equals the standard signal mode, the screen adjusts automatically. If the signal from the system is not equal to the standard signal mode, adjust the screen resolution by referring to your Video Card’s user guide, otherwise there may be no video.
  • Page 39 Specifications MODE HIT15WDVB HIT19WDVB Panel System 15.4 inch LCD panel 19 inch LCD panel Display Resolution 1280 pixels ( horizontal ) x 800 pixels 1440 pixels ( horizontal ) x 900 ( vertical ) pixels ( vertical ) Television System PAL- I PAL- I Brightness...
  • Page 40 Connecting to a VCR and Quick Connecting to a VCR a Satellite/Cable box Start Do not connect the TV to the mains supply until you have completed all the connections. Connect one end of an RF lead to the aerial socket marked on your TV and the other end Guide...
  • Page 41 Sorting a channel Skipping a channel Checklist... You should have... Put the two AAA size batteries in your remote control. Connected your TV to an aerial or VCR and/or VCR Satellite/Cable box. Switched on your TV and any other connected equipment.
  • Page 42 This symbol on the product or in the instructions means that your electrical and electronic equipment should be disposed at the end of its life separately from your household waste. There are separate collection systems for recycling in the EU. For more information, please contact the local authority or your retailer where you purchased the product.
