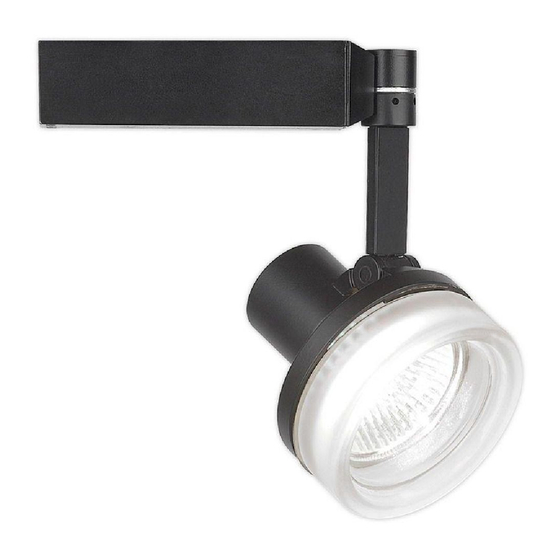

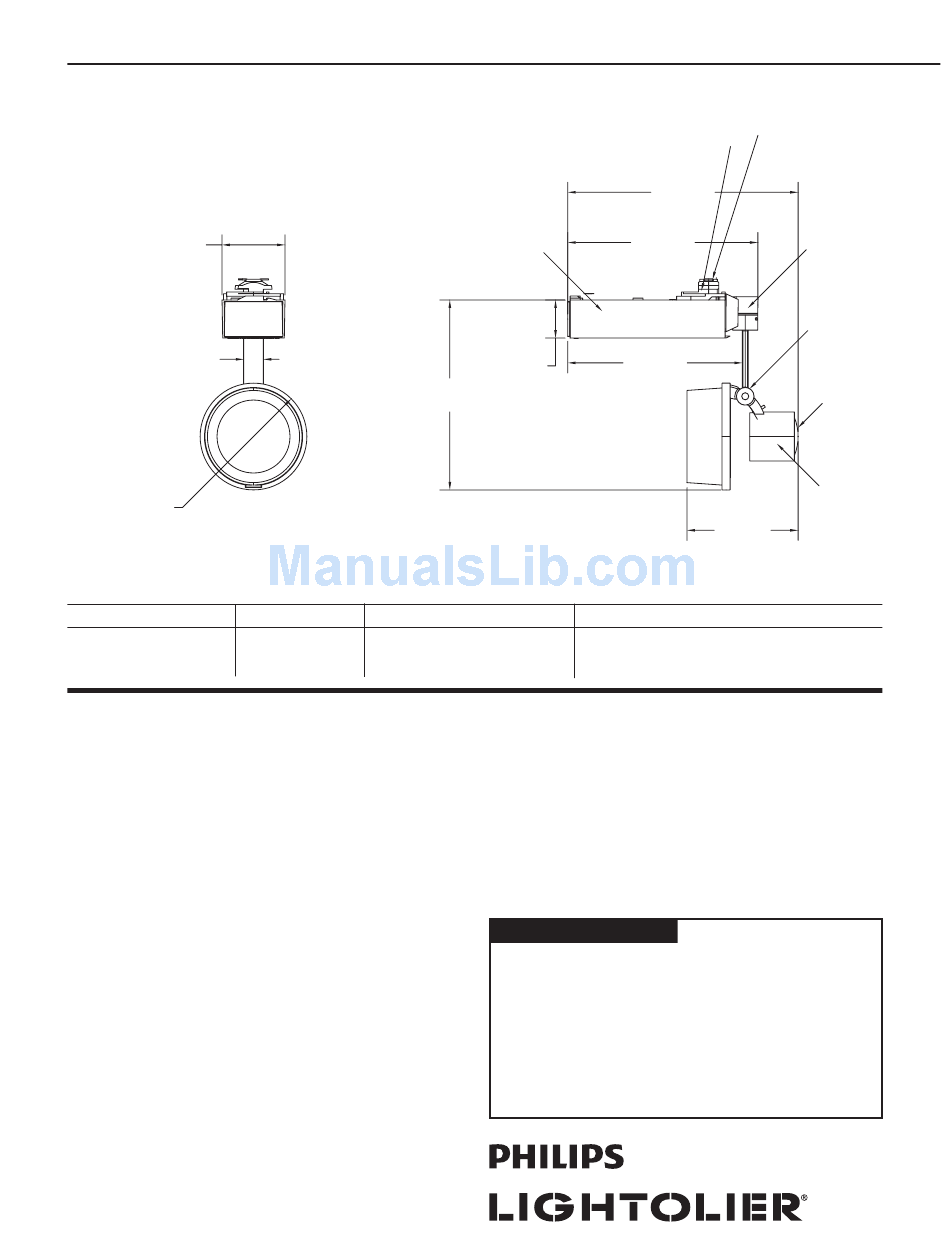

Lightolier Lytespan 22OR6 Specification

Page 1 of 2
1 1/2 in
[40 mm]
1/2 in
[12 mm]
2 3/4 in
[67 mm]
Ordering Information
Catalog No. Finish
22OR6WH Matte White
22OR6BK
Matte Black
22OR6AL Metallic Aluminum
Features
1. Transformer: Class two electronic transformer for 12v halogen lamps
2. Track Attachment Fitting: Molded polycarbonate; rotates into track
3. Brass Contact: Extends for connection to second circuit
(Advent Lytespan track only)
4. Horizontal Pivot: Wireless stem profile with infinite horizontal rotation
5. Vertical Pivot: 0-90° vertical adjustment
6. Socket: Bi-pin multipoint contact low voltage halogen socket
7. Housing: Die cast aluminum
8. Accessory Cartridge: Hinged and captive; retaining ring included.
9. Glass Shield: Included for use with unshielded lamps
Finish
All Painted finishes are baked enamel.
Dimming
Use only dimmers specifically designed for use with electronic transformers.
Low voltage fixtures may produce audible sound when dimmed.
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2010 Philips Group • A0410
Lytespan
1
1 in
[24 mm]
4 3/4 in
[120 mm]
Mounting
All Lytespan Track Systems.
Does not mount on ProSpec Track.
Accessories
Accessory Holder: Integral
Accessories:
Lens:
Louver:
Snoot Accessory:
Not permissible to use any more than one glass accessory
(lens or filter) at any time.
Labels
UL, cUL
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
Track Lighting System
®
Alcyon
2
5 3/4 in
[145 mm]
4 3/4 in
[120 mm]
4 1/4 in
[110 mm]
2 3/4 in
[70 mm]
Lamps
MR16 Lamp with out Integral lens, 50W Max
MR16 Lamp with integral lens, 37W Max
Accepts two total
(1 lens plus either 1 louver or 1 snoot)
AF2, ADF2
AL2HC
22SR6
Type:
22OR6
Open Ring MR16
™
3
4
5
6
7
