READ AND UNDERSTAND THESE INSTRUCTIONS BEFORE INSTALLING FIXTURE
INSTRUCTION SHEET NO.
his
fixtureis intended for installationin accordance w ith the NationalElectrical C ode andlocalregulations.
Toassurefull compliance with localcodasandregulations, c heckwith yourlocalelectricalinspector b efora
installation.To pravantelectrical
shock, turn off electricity
at fuse box before proceeding.
IS:2027
Retaintheseinstructions for maintenance reference.
R0894 Page1 of 1

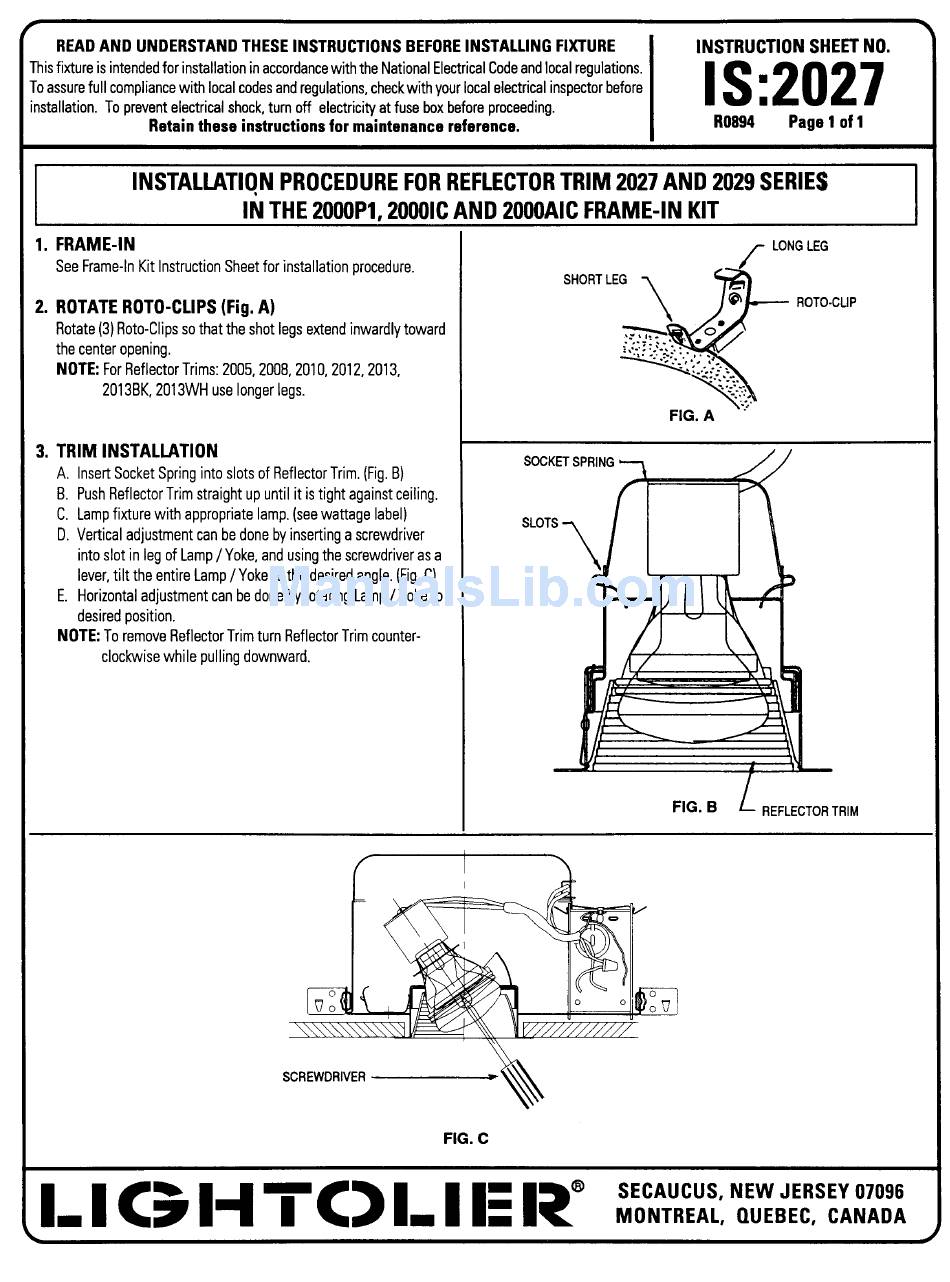

INSTALLATION PROCEDURE FOR REFLECTOR TRIM 2027 AND 2029 SERIES
IN THE 2000P1, 20001C AND 2000AIC FRAME-IN KIT
1.
FRAME-IN
See
Frame-In Kit Instruction Sheet for installation procedure.
2. ROTATE ROTO-CLIPS (Fig. A)
Rotate(3)Roto-Clips so that the shot legs extend inwardly toward
the center opening.
NOTE: For Reflector Trims: 2005,2008,2010,2012, 2013,
201 3BK, 2013WH use longer legs.
3. TRIM INSTALLATION
A. Insert Socket Spring into slots of Reflector Trim. (Fig. B)
B. Push Reflector Trim straight up until it is tight against ceiling.
C. Lamp fixture with appropriate lamp. (see wattage label)
D. Vertical adjustment can be done by inserting a screwdriver
into slot in leg of l-amp/Yoke, and using the screwdriver as a
lever, tilt the entire Lamp /Yoke to the desired angle. (Fig. C)
E. Horizontal adjustment can be done by rotating Lamp/Yoke to
desired position.
NOTE: To
remove Reflector Trim turn Reflector Trim counter-
clockwise while pulling downward.
FIG. C
