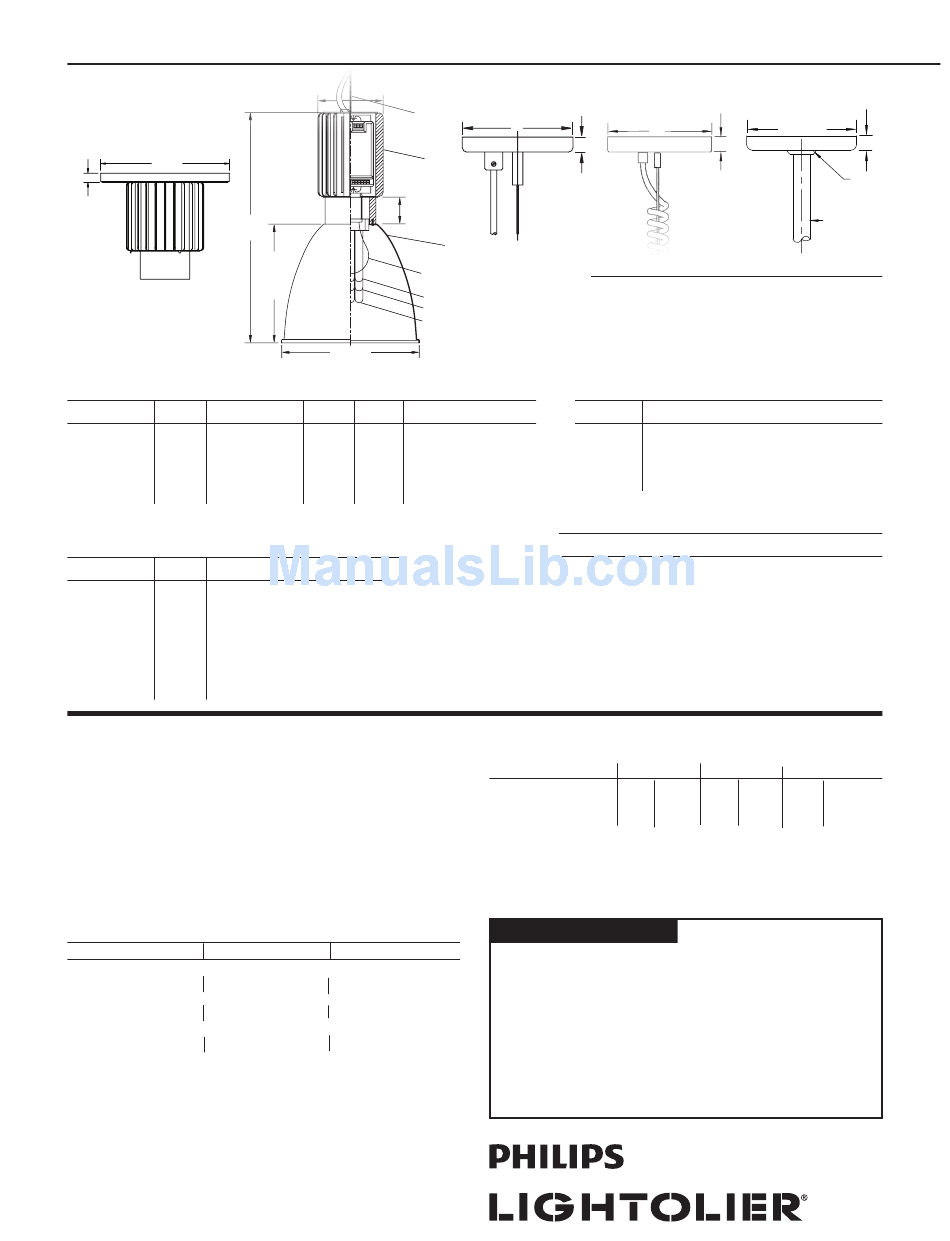

Philips 40471U Specification

Page 1 of 4
10 3/8"
3/4"
15 1/16"
Direct to
Ceiling Kit
Complete Unit Consists of: Power Head, Reflector & Suspension (order each separately)
Power Head Finish: Powder Coated Textured Dark Grey or Titanium
Cat. No. Color Lamp
4046151 Grey Incandescent A21 150
4046151TM Titanium Incandescent A21 150
40471U3 Grey CFL Triple Tube
40471U3TM Titanium CFL Triple Tube
40471T39EU Gray CMH T6 G12 Base 39
40471T39EUTM Titanium CMH T6 G12 Base 39
Note: for CFL unit with integrated Emergency Battery Pack (EM) Option
refer to Spec Sheet number P-EM for Cat. No. ordering guide and specification data
Suspension
Cat. No. Color Description
404SKG Grey Cable/Straight Cord 120" Length
404SKB Black Cable/Straight Cord 120" Length
404S36 Grey 36" Length 5/8" Stem
404S36B Black 36" Length 5/8" Stem
404S60 Grey 60" Length 5/8" Stem
404S60B Black 60" Length 5/8" Stem
404S120 Grey 120" Length 5/8" Stem
4912CTCGR Grey Direct to Ceiling Kit, Std. 9" Pendalyte
4912CTCTM Titanium Direct to Ceiling Kit, Std. 9" Pendalyte
Features
1. Reflector: 16 gauge high purity anodized aluminum or pressed colored glass
with inner white frit.
2. Power Head Housing: Two-piece extruded aluminum. Removable door allows
for ease of installation and servicing. Dark Grey or Titanium baked enamel
powder coat finish .
3. Suspension: Cable/Cord: 1/16" Stainless Steel/SJT 18-3, Grey or Black.
Cable/Coiled Cord: 1/16" Stainless Steel/SJT 18-3, Grey or Black. Stem: 5/8"
Steel Tubing and Canopy, with 35˚ swivel hanger, Grey or Black finish.
Lamping (by others)
Incandescent: 150W max. A-21
Compact Fluorescent:
General Electric Osram/Sylvania
(1) 26W Triple Tube 4-Pin (Amalgam) Compact Fluorescent Lamp
F26TBX/*/A/4P CF26DT/E/IN/*
(1) 32W Triple Tube 4-Pin (Amalgam) Compact Fluorescent Lamp
F32TBX/*/A/4P CF32DT/E/IN/*
-(1) 42W Triple Tube 4-Pin (Amalgam) Compact Fluorescent Lamp
F42TBX/*/A/4P CF42DT/E/IN/*
*Manufacturers color temperature designation
Electrical
Lampholders:
Incandescent: Medium Base, Porcelain, Nickel Plated Screw-Shell Compact
Fluorescent: 4-Pin, 26/32 watt base: GX24q-3; 42 watt base: GX24q-4
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2010 Philips Group • F0610
Specification Decorative Pendalyte
4 5/8"
3
2
1 3/4"
150W A21
7 3/4"
26W Triple Tube
32W Triple Tube
42W Triple Tube
9" Dia.
Watts Volts Options
120 Not App.
120 Not App.
26/32/42 120/277 MX1, MX2, DA, E3
26/32/42 120/277 MX1, MX2, DA, E3
120/277 N/A
120/277 N/A
Remove U or U3 from
Cat. No. and add Suffix
Philips
PL-T26W/*/4P
PL-T32W/*/4P
PL-T42W/*/4P
Suspension Details
5"
3/4"
Cable/Cord
1
9" Power Head Options
MX1 = Mark X Dimming 26/32/42W, 120V only*
MX2 = Mark X Dimming 26/32/42W, 277V only*
E3 = 347V (Canada)
DA = DALI (Digital Addressable lighting Interface)**
* 2-wire, neutral connection required at dimming control.
** 5-wire Suspension Kit required.
Reflector/Glass Shade
Cat. No.
40411
40413
409WH
409BL
409AB
Optional Extension Kits
Cat. No.
404EXT300*
404EXTB*
404SG5**
404SB5**
404EXT300G5** Grey
404EXT300B5** Black
* Use with Standard Cord or Deco Suspension Kits
** DALI requires a 5-wire Suspension
Electrical (continued)
Ballasts: Fluorescent: Electronic
26 Watt
Voltage 120
Total Input Watts -26
Max. Line Current (Amps) .22
Power Factor > 0.98, Ballast Factor 0.98, THD < 10%,
Minimum Starting Temperature 0°F
Labels
cULus Listed. Suitable for Damp Locations.
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
40471U
5 1/2" Dia.
5"
3/4"
Cable/Coiled Stem
Cord
Cable/Coiled Cord
(add Suffix to Cat. No.)
Description
Semi Specular Anodized Reflector
Satin & Anodized Reflector
White Glass Shade
Cobalt Blue Glass Shade
Amber Glass Shade
Color Description
Grey 25' Straight Cable/Cord Extension Kit
Black 25' Straight Cable/Cord Extension Kit
Grey 120" 5-wire Straight Cord
Black 120" 5-wire Straight Cord
5-wire, 25' Cord/Cable
5-wire, 25' Cord/Cable
32 Watt 42 Watt
277 120 277 120
-26 -36 -36 -47
.09 .30 .09 .39
Type:
9" Pendant
3/4"
Swivel
Joint (35°)
5/8" Steel Tubing
277
-47
.17
