Philips C3 Series Specification

Recessed emergency power for egress lighting

Advertisement

Quick Links

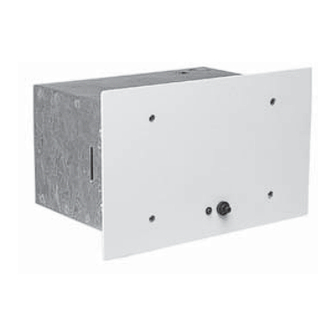

Recessed Emergency Power for Egress Lighting
C3250LW
9.5"
(24.1 cm)
5.75"
(14.6 cm)
5.63"
(14.3 cm)
4.5"
(11.4 cm)
Features
Illumination: The C3 Series
is a suggested emergency
power source for the LP Series
interior/exterior low-level
LED luminaire, the LLEF Series
exterior wall/soffit remote, and
the LLRE Series recessed MR16
exterior remote (see back
page). Any 12 VDC remote
emergency luminaire can also
be powered by the C3 Series
power module.
Housing: The C3 Series
power module rough-in
enclosure is fabricated from
20 gauge die formed galvanized
steel. The trim plate is
fabricated from 12 gauge steel
and is painted with a matte
white powder coat finish. The
trim plate is also offered with
an optional matte black finish.
Knockouts for conduit as
well as screw hole knockouts
for mounting to joist are
conveniently located on the
back box.
Operating Temperature
Range: Standard Location
65°F (19°C) to 85°F (30°C)
Damp Location
50°F (10°C) to 104°F (40°C)
C3 Series
Electronics: 120/277 VAC,
60 Hz, dual input. The power
module utilizes an automatic
voltage regulated charging
system. The 2-state charger
eliminates the need for
periodic battery exercising. It is
recommended that a monthly
load test of a minimum of (1)
minute be performed and
recorded to satisfy NFPA 101
life safety requirements. A
momentary test switch and
normal power indicator lamp
are located on the trim plate
to assist testing and visual
inspection of the product. A
pre-wired plug in receptacle is
provided within the enclosure
for routing 12 VDC emergency
power to remote emergency
luminaires.
Electrical Specifications:
C3250
(120) 0.22 A, (277) 0.11 A
C3275
(120) 0.21 A, (277) 0.11 A
C3275DL
(120) 0.22 A, (277) 0.11 A
Job Information
Type:
Job Name:
Cat. No.:
Notes:
Page 1 of 2
Code Compliance
UL 924 and optional UL damp
location listed. NFPA 101,
NEC, BOCA, OSHA and IBC
illumination standards.
Warranty
Three-year full electronics
warranty. One year full plus
four year prorated lead calcium
battery warranty.
