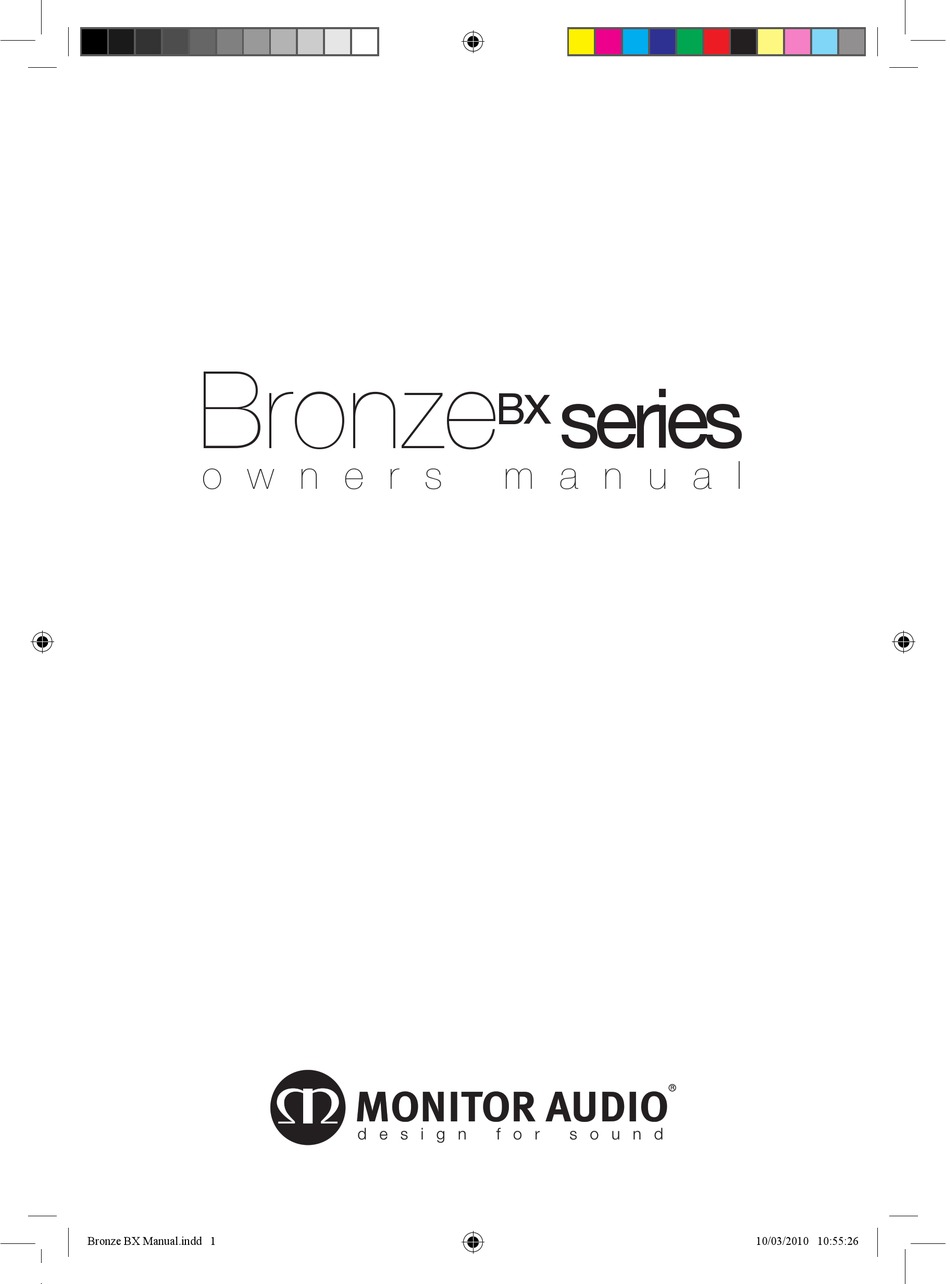

- Page 1 Bronze series Bronze o w n e r s m a n u a l Bronze Bronze m o n i t o r a u d i o . c o . u k Bronze Bronze centre Bronze BX-FX Bronze BXW-10 Bronze BX Manual.indd 1...
- Page 2 Bronze BX Manual.indd 2 10/03/2010 10:55:26...
-
Page 3: Table Of Contents
Contents Page Introduction Positioning AV Positioning 2 Channel Positioning Setting up the BX-FX Plinth Fixing Spikes and Feet Grilles Fixing the BX-FX to a Wall Port Bungs Specifications Owner Information monitoraudio.co.uk Bronze BX Manual.indd 1 10/03/2010 10:55:26... - Page 4 Bronze BX Bronze BX Manual.indd 2 10/03/2010 10:55:26...
-
Page 5: Introduction
This is Bronze BX, Monitor Audio’s most affordable speaker range. Blending the best of its award-winning predecessors with advanced technologies from our up-market RX and flagship Platinum ranges, Bronze BX far exceeds the standards of performance and quality you’d normally expect from an ‘entry level’ range. -
Page 6: Positioning
Positioning aV Positioning In the following pages, there are illustrations showing optimal positioning and some suggested room layouts for AV applications. For advice on configuring a 2 channel system, please refer to page 7. The front, and in some cases rear, floor standing and stand mount speakers should be positioned approx 6 - 9 feet apart (1.8m - 2.5m) and start with them about 10 inches (25cm) from the wall. - Page 7 Bi-Pole Di-Pole RIGHT Bi-Pole Di-Pole LEFT Bi-Pole Di-Pole RIGHT Bi-Pole Di-Pole LEFT monitoraudio.co.uk Bronze BX Manual.indd 5 10/03/2010 10:55:29...
- Page 8 Bi-Pole Di-Pole RIGHT Bi-Pole Di-Pole LEFT Bi-Pole Di-Pole RIGHT Bi-Pole Di-Pole Bi-Pole LEFT Di-Pole Bi-Pole LEFT Di-Pole RIGHT Bronze BX Bronze BX Manual.indd 6 10/03/2010 10:55:31...
-
Page 9: Channel Positioning
NOTE: When using 2 pairs of BX-FX in a 7.1 system, you need to use the RIGHT hand speaker for the rear surround left and the LEFT hand speaker for the rear surround right. This is because of the tweeter phasing. 2 Channel Positioning For use in a 2 channel system, the listening position and the loudspeakers should form an equilateral triangle. -
Page 10: Plinth Fixing
Plinth FiXing (BX5 & BX6 only) The Bronze BX5 & BX6’s are provided with plinths to improve stability and acoustic response. The plinths are secured in place by using the supplied bolts. Before you fit the plinth ensure the floor area is clear of any hard/sharp objects. To fit the plinth turn the cabinet over so that the bottom is facing upwards. -
Page 11: Grilles
grilles All of the Bronze BX speakers come with grilles covered in acoustically transparent cloth. The grilles are held invisibly in place by magnets in both the grille and the cabinet (except BX-FX). They are contained within the separate card packaging. To fit them, firstly ensure they are the correct way up (badge at the bottom) and offer them up to the cabinet. -
Page 12: Port Bungs
Port Bungs WARNING: Care must be taken not to insert the port bungs too far into the port as this may result in the foam bung being lost inside the cabinet. If the loudspeaker is to be used in a small room, typically 9 sqM (80 sqFT) or a room that is known to reproduce accentuated bass response, it may be desirable to fit the port bungs. -
Page 13: Specifications
Bronze BX Manual.indd 11 10/03/2010 10:55:35... -
Page 14: Owner Information
............................e-mail address ........................Telephone Number ......................Monitor Audio reserves the right to alter specifications without notice. For the 5 years manufacturer’s warranty and to be entered into our monthly prize draw, please visit the online registration form at: www.monitoraudio.co.uk Bronze BX Bronze BX Manual.indd 12... - Page 15 Bronze BX Manual.indd 13 10/03/2010 10:55:35...
