4. Configure a HUI controller for each Artist control surface in your network
5. Select HUI from the Type drop-down box for each controller to configure.
6. Configure each controller to have the input and output MIDI ports set for Pro
28

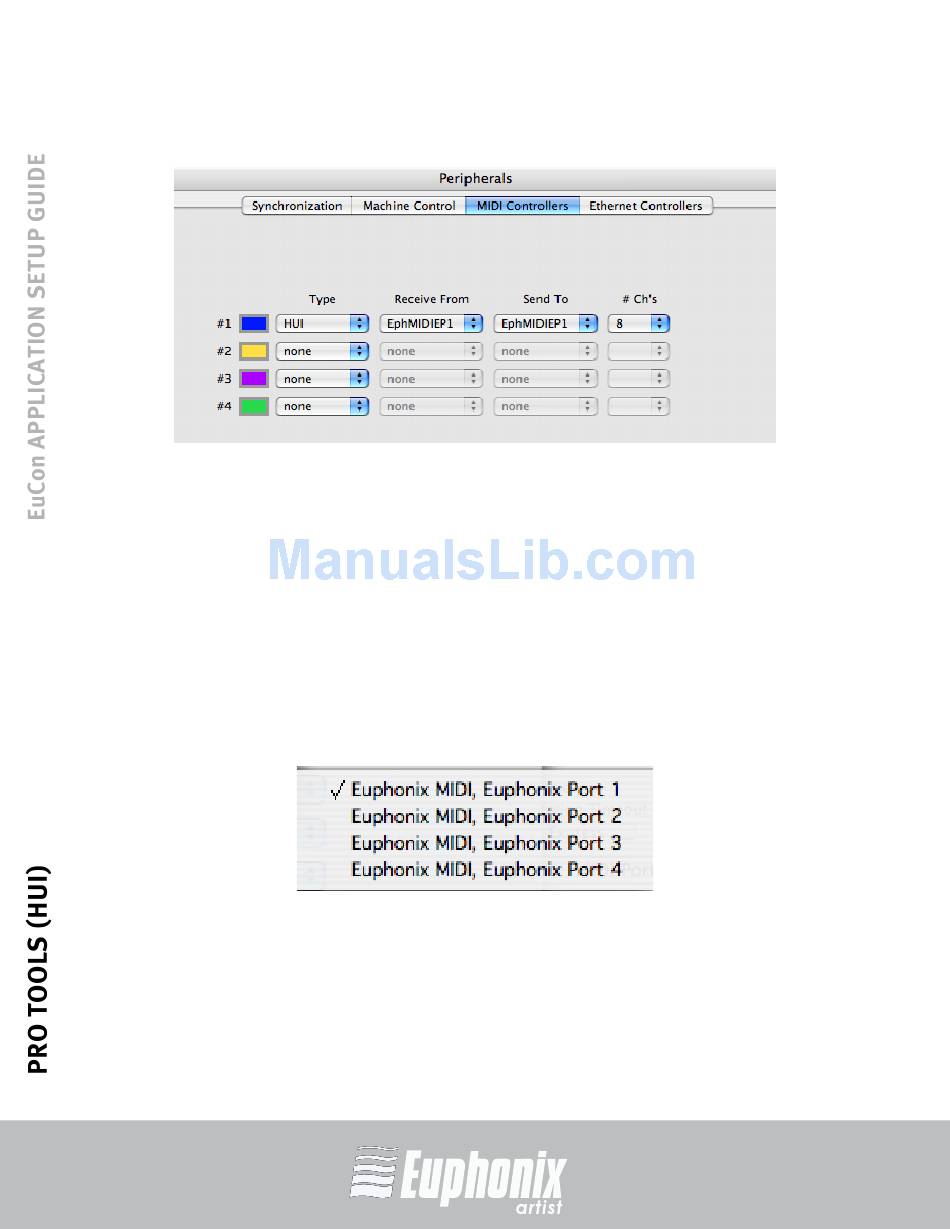

Figure 7-4 Pro Tools Peripherals dialog
(up to four).
Tools in the Euphonix Preferences Pane. Click on the Receive From and Send
To drop-down menus, hover over Predefined, then select from the Euphonix
MIDI ports.
For example, if you set Pro Tools to use MIDI ports 1–4, your first HUI con-
troller's receive and transmit ports should be set to EphMIDIEP1.
Figure 7-5 Excerpt from Pro Tools MIDI menu
