NMEA2000 REPEATER MESSAGES:
127250: Vessel Heading (Magnetic Heading, Correction, Deviation)
128259: Speed Water referenced (Speed Water, Speed Ground)
128267: Water Depth (Depth at transducer, transducer offset)
129025: Position Rapid Update (Latitude, Longitude)
129026: COG & SOG Rapid Update
129029: GNSS Position Data (Date, Time, Latitude, Longitude, Altitude)
130306: Wind Data (Speed, Direction, Reference)
130310: Environmental Parameters (Water Temperature, Outside Ambient Air Temp, Atmospheric
pressure)
130311: Environmental Parameters (Deprecated) (Temperature Instance, Humidity Instance,Temp,
Humidity, Atmospheric Pressure)
130312: Temperature (Instance, Source, Actual)
130314: Actual Pressure
130577: Direction Data (Course Over Ground, Speed Over Ground, Heading, Speed Through Water)
129284: Navigation Data (ETA)
MS-NRX200 Manual.indd 5

INSTALLATION

To complete the ultimate marine audio experience MS-NRX200 Marine Wired Remote Controls can be
installed throughout the vessel to provide full control of multiple FUSION Marine Stereos, creating flexible
zone control and NMEA2000 monitoring solutions.
The MS-NRX200 is a plug and play device with two connection options. Connect the remote control to
your FUSION Marine Stereo with the standard cable kit provided with your purchase or to a NMEA2000
network. Fusion NMEA2000 cable kits are available separately as a starter pack to create your own
NMEA2000 network or connection pack for connecting to an existing NMEA2000 network.
Refer to www.fusionelectronics.com for details
Note: If you install the remote control using the standard Fusion cable kit provided with the remote
control, NMEA2000 repeater functions are not available.

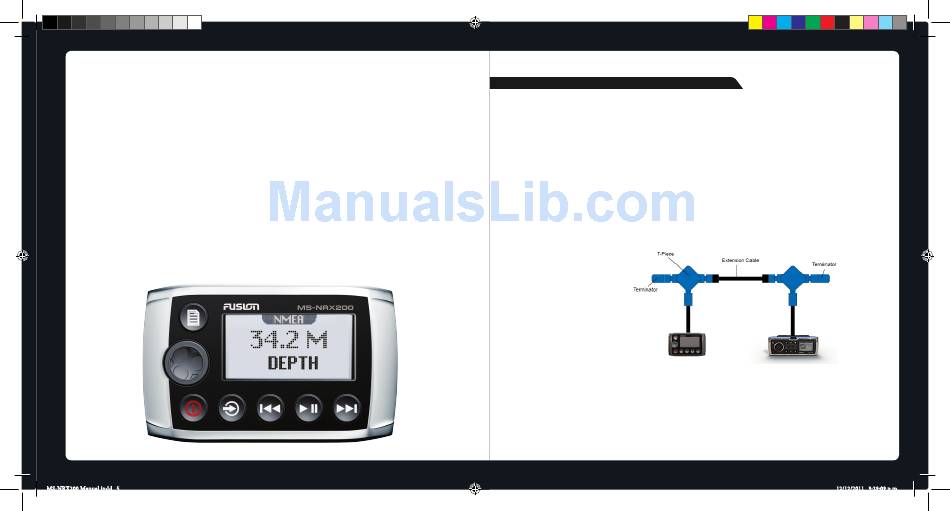

STANDARD FUSION INSTALLATION – USING THE CABLE KIT SUPPLIED WITH YOUR NRX200 REMOTE
CONTROL.
CONTENTS OF THE BOX
1 x 6M Extension Cable
2 x T-Connector
1 x Terminator (Male)
1 x Terminator (Female)
NOTE: The supplied Terminators must be fitted to the ends of the network as shown. Failure to do so will
affect operation.
Optional Accessory: MS-WR600EXT6 - 6M Extension lead
MS-WR600EXT20 - 20M Extension lead
