Careful acoustic design and advanced
materials have resulted in an exceptional full
range, full fidelity, self-contained sound system.
The ART400A provides an ideal combination of
high power, low distortion and wide bandwidth for
permanent installations.
The two-way design consists of a 15" woofer
that uses a massive magnet structure for accurate
bass reproduction and a CD horn loaded to a 2"
exit compression driver. The CD horn is a part of
the molded enclosure. Two discrete power ampli-
fiers and an electronic crossover are matched to
the two transducers and provide time correction,
CD horn compensation and peak-limiting, as well
as over-excursion and thermal protection.
The ART400A will accept a balanced or unbal-
anced (switch selected) microphone or line input,
adjusted by a single rotary control.
All components are housed in a lightweight,
vented enclosure formed from polypropylene that is
extremely rigid and is weather resistant. The woofer
is protected by a metal grille. All controls and con-
nectors are recessed on the rear. A 1-3/8" stand
socket and M10 threaded inserts are molded into
the cabinet to provide quick and easy installation
using specially designed accessory mounting hard-
ware.
This Mackie Industrial product is covered by
an exclusive, one-time NO FAULT repair policy in
addition to a five year, limited warranty.

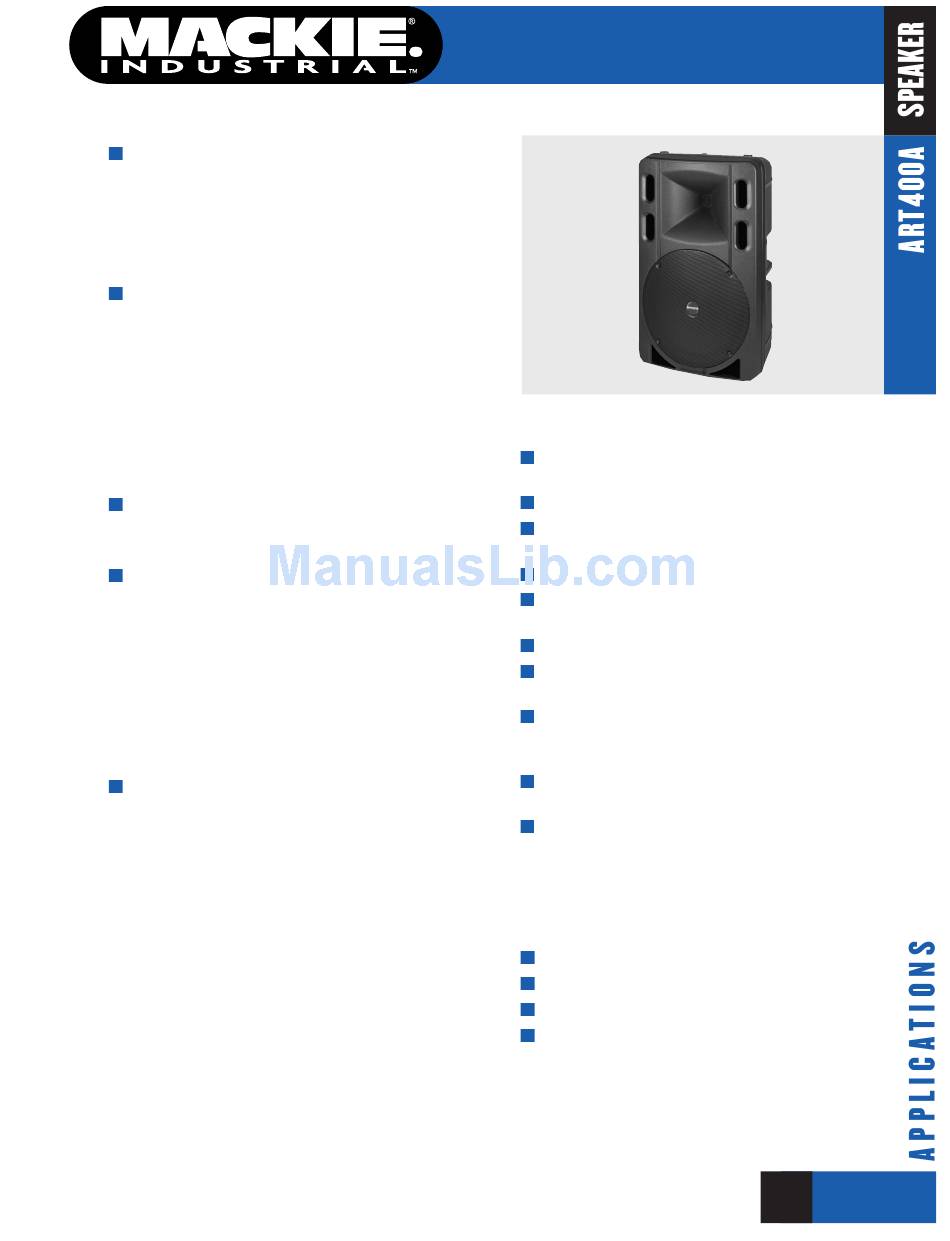

ART400A
Two-Way Active Speaker System
Features
80° x 60° constant-directivity horn with 2" exit
compression driver
15" high-efficiency woofer
Internal bi-amplifier: 300W LF, 50W HF, and
driver-optimized electronic crossover
Switchable balanced mic/line input
Total system protection: thermal, short circuit
and peak limiting
Compact, lightweight polypropylene enclosure
Built-in hand grips, M10 fly points and stand
socket
Optional installation accessories include hard-
ware for truss, grid, pipe and adjustable wall
mounts
Exclusive Mackie Industrial — one-time NO
FAULT repair policy
Five year, limited warranty
Live Sound/Music Reinforcement
High-Level AV Playback
Large Speech Systems
Active Floor Monitors
1
O F 6 P A G E S

Advertisement

   Related Manuals for Mackie ART400A

   Summary of Contents for Mackie ART400A

  • Page 1

    Exclusive Mackie Industrial — one-time NO This Mackie Industrial product is covered by FAULT repair policy an exclusive, one-time NO FAULT repair policy in Five year, limited warranty addition to a five year, limited warranty.

  • Page 2: Specifications

    ART400A Two-Way Active Speaker System Specifications System Acoustic Options Frequency Range (–10 dB): 55Hz–19kHz ART A-8 Full front metal grille, black Frequency Response (–3 dB): 75Hz–18kHz ART A-9 Horizontal, adjusting wall mount bracket Horz. Coverage Angle (–6 dB): 80°, nominal ART A-10 Vertical, adjusting wall Vert.

  • Page 3

    ART400A Two-Way Active Speaker System ART400A Vertical Polars 500Hz 200Hz 630Hz 250Hz 0˚ 0˚ 800Hz 315Hz 1kHz 400Hz 1.25kHz 3.15kHz 1.6kHz 4kHz 0˚ 0˚ 2kHz 5kHz 2.5kHz 6.3kHz Vertical Off-Axis Frequency Response (UP) 8kHz 10kHz 0˚ 12.5kHz Vertical Off-Axis Frequency Response (DOWN) 16kHz O F 6 P A G E S...

  • Page 4

    ART400A Two-Way Active Speaker System ART400A Horizontal Polars 0˚ 0˚ 200Hz 500Hz 250Hz 630Hz 315Hz 800Hz 400Hz 1kHz 0˚ 1.25kHz 3.15kHz 1.6kHz 4kHz 2kHz 5kHz 2.5kHz 6.3kHz Horizontal Off-Axis Frequency Response 0˚ 8kHz 10kHz 12.5kHz 16kHz O F 6 P A G E S...

  • Page 5

    17.28" (439mm) 10.47" (266mm) 14.77" (375mm) 14.77" (375mm) BOTTOM SIDE 17.88" (454mm) 8.26" (210mm) 17.88" (454mm) CONCEIVED, DESIGNED, AND MANUFACTURED BY MACKIE INDUSTRIAL • MADE IN ITALY • COPYRIGHT ©1999 INPUT OUTPUT LINE/MIC VOICE MUSIC LIMIT. OPERATE VOLUME ART 400A ACTIVE SPEAKER SYSTEM 20.35"...

  • Page 6

    Mackie Designs continually engages in research related to product improvement. New material, production methods, and design refinements are introduced into existing products without notice as a routine expression of that philosophy. For this reason, any current Mackie Industrial product www.mackieindustrial.com may differ in some respect from its published description, but will always equal or exceed the original design specifications unless otherwise stated.
