Art Series
I
The same careful acoustic design and advanced
materials used in the ART active speakers have been
utilized in the ART300 passive speaker. Combining
high efficiency, high power handling and excellent
sonic performance, the ART300 provides practical
solutions for permanent installation applications.
I
The two-way design consists of a 12" woofer that
uses a massive magnet structure for accurate bass
reproduction and a CD horn loaded to a 1" exit
compression driver. The CD horn is a part of the
molded enclosure.
I
The system includes a high-level crossover
network that features oversized inductors in series
with the woofer. The benefit is improved current
handling, reduced phase shift and superior transient
response. Dynamic high-frequency driver protection
is accomplished with a fast-response filament resistor,
chosen to compliment the power curve of the driver.
I
All components are housed in a lightweight,
vented enclosure formed from polypropylene that is
extremely rigid. The woofer is protected by a metal
grille. All controls and connectors are recessed on the
rear. A 1-3/8" stand socket and M10 threaded inserts
are molded into the cabinet to provide quick and easy
installation using specially designed accessory
mounting hardware.
I
This Mackie Industrial product is covered by an
exclusive, one-time, NO FAULT repair policy in addition
to a five year limited warranty.

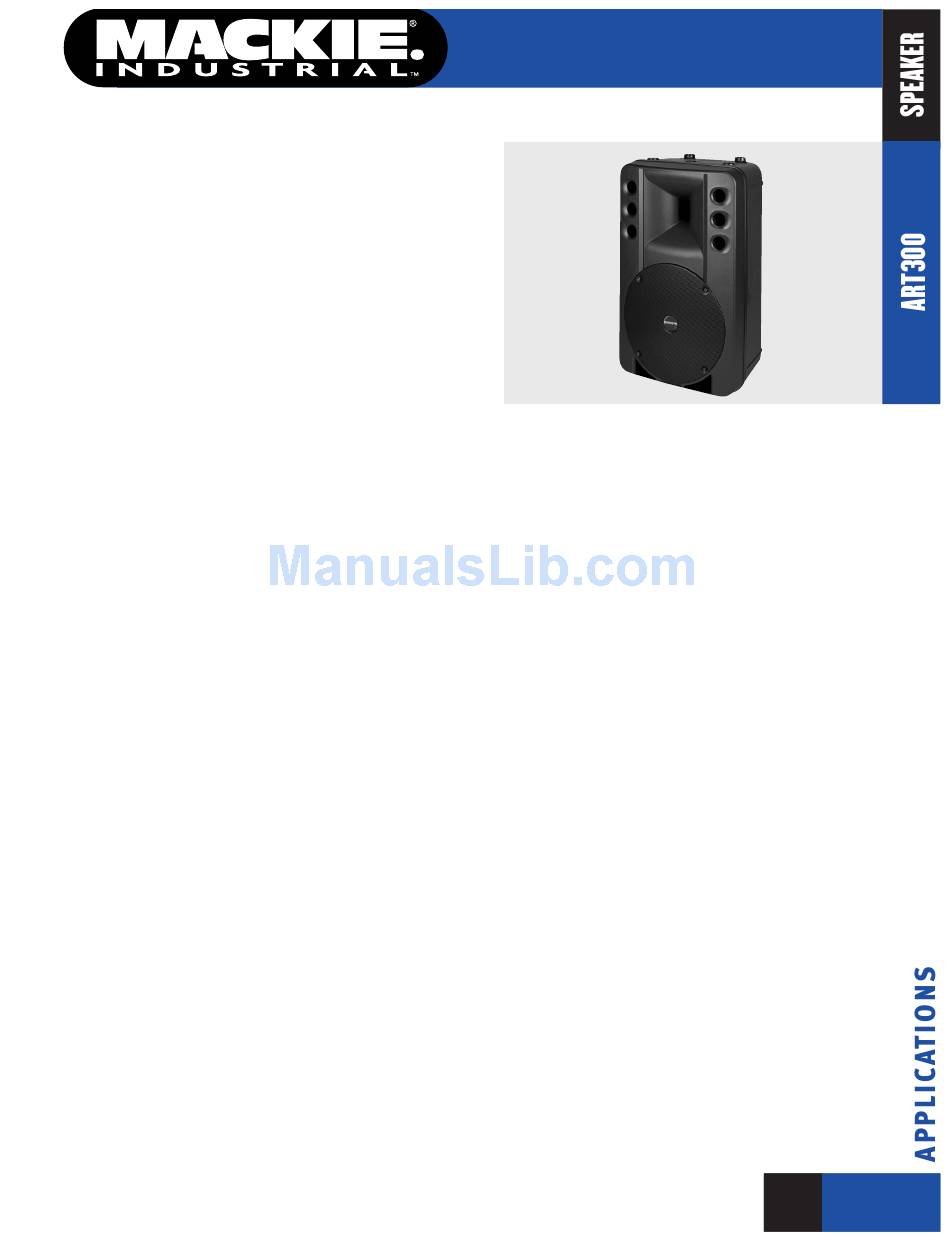

ART300
Two-Way Speaker System
Features
I
80° x 75° constant-directivity horn with 1" exit
compression driver
I
12" high-gauss woofer
I
Compact, semi-trapezoidal lightweight
polypropylene enclosure
I
Built-in hand grip, M10 fly points and stand socket
I
Optional installation accessories available
I
Exclusive Mackie Industrial — one-time, NO FAULT
repair policy
I
Five year limited warranty
I
Live Sound/Music Reinforcement
I
High-Level AV Playback
I
Large Speech Systems
I
High-Level Passive Systems
1
