Elmo Keyboard Controller ESD-CC1X Specification

X line keyboard controller for multi-platform use esd-cc2x

Advertisement

Quick Links

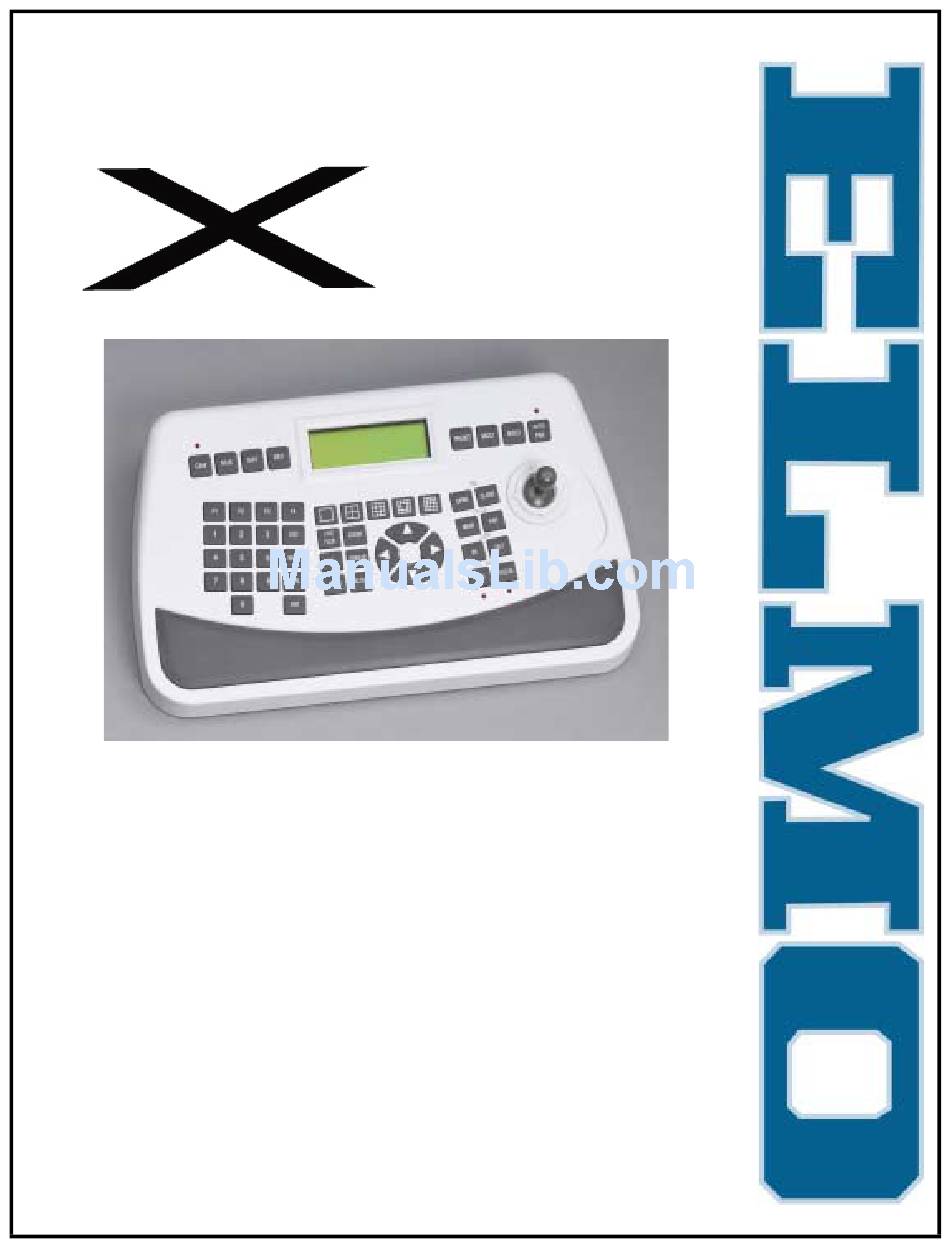

ELMO ESD-CC1X Keyboard Controller
! With supported 2400, 4800, & 9600 RS-232 baud rate, it controls
ELMO multiplexers only
! Allows RS-232 to download update software
20 x 4 back light functioned LCD display, and buzzer prompt support
for user friendly interface
! Time date display
! Joystick control dome's vertical/ horizontal sweep speed and
direction
! Password protection supported
! Preset point edit function
Line
FEATURES

Advertisement

loading
Need help?

Need help?

Do you have a question about the Keyboard Controller ESD-CC1X and is the answer not in the manual?

Questions and answers

Summary of Contents for Elmo Keyboard Controller ESD-CC1X

  • Page 1 ELMO ESD-CC1X Keyboard Controller ! With supported 2400, 4800, & 9600 RS-232 baud rate, it controls ELMO multiplexers only ! Allows RS-232 to download update software 20 x 4 back light functioned LCD display, and buzzer prompt support for user friendly interface ! Time date display ! Joystick control dome’s vertical/ horizontal sweep speed and...
  • Page 2 Power Source DC 12V 1A Power Consumption 300mA max Dimensions 326mm x 202mm x 80mm FOR USE WITH ELMO DOMES AND MULTIPLEXERS ONLY FOR MULTI-PLATFORM USE ESD-CC2X ELMO ECM-CC1X Keyboard Controller ELMO Mfg. Corp. 1478 Old Country Road Plainview, New York, 11803 Tel.
