Elmo ESD-CC1 User Manual

Multi-function cctv control keyboard
Hide thumbs Also See for ESD-CC1:
Table of Contents

Advertisement

Quick Links

Download this manual
Multi-function
CCTV control keyboard
ESD-CC1
Users' Manual
Version 3.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ESD-CC1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Elmo ESD-CC1

Summary of Contents for Elmo ESD-CC1

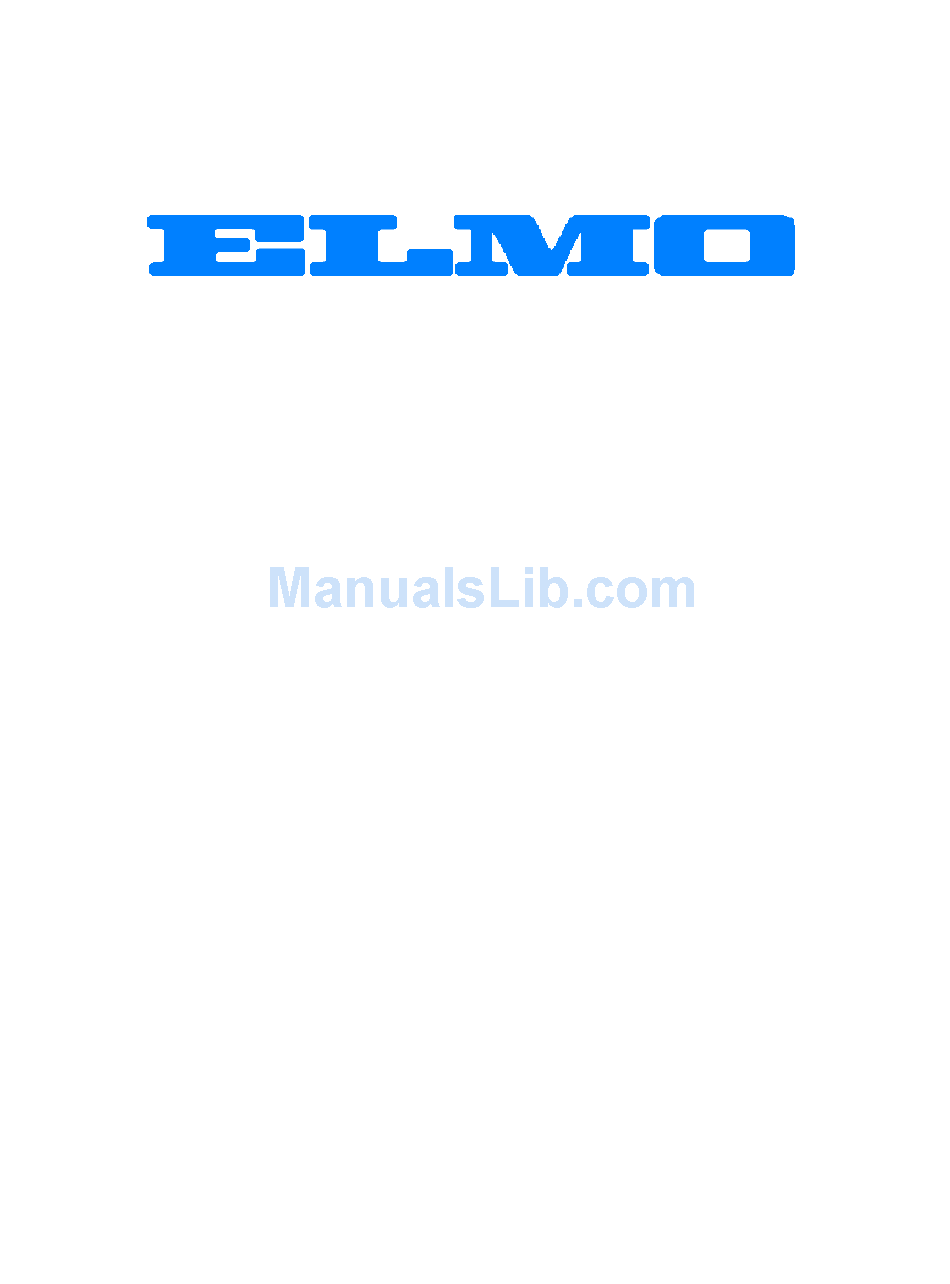

  • Page 1 Multi-function CCTV control keyboard ESD-CC1 Users’ Manual Version 3.0...
  • Page 2 WARNING! TO PREVENT FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. CAUTION! RISK OF ELECTRIC SHOCK DO NOT OPEN! The lightning flash with the arrowhead symbol, The exclamation point, within an equilateral within an equilateral triangle, is intended to alert the triangle, is intended to alert the user to the user to the presence of uninsulated ’’dangerous presence...

  • Page 3: Table Of Contents

    Table Of Contents 1. General Introduction……………………………………………………………………………4 2. Front Panel & Real Panel……………………………………………………………………….5 2.1 Front Panel………………………………………………………………………………….5 2.2 Rear Connector Panel……………………………………………………………………….6 2.3 Switch setting on rear connector PCB……………………………………………………... 6 3. Installation………………………………………………………………………………………7 3.1 RS485 cable………………………………………………………………………………...7 3.2 Cable connections…………………………………………………………………………..7 4. Operations………………………………………………………………………………………8 4.1 Power On…………………………………………………………………………………...8 4.2 Camera Control Mode……………………………………………………………………...8 4.2.1 OSD Camera Setting…………………………………………………………………..9 4.2.2 Joystick………………………………………………………………………………..9...

  • Page 4: General Introduction

    1. General Introduction This control keyboard is 100% integrated with our full range CCTV series, or other products that are compatible with the DSCP protocol. Equipped with the most sophisticated control protocols, this high-tech keyboard will greatly enhance the efficiency of the overall CCTV system. It also effectively integrates our Triplex Multiplexer, High Speed Dome Camera and other CCTV devices into one powerful yet user-friendly solution.

  • Page 5: Front Panel & Real Panel

    2. Front Panel & Real Panel 2.1 Front panel 1. Multiplexer mode. 2. Matrix mode.(Reserved) 3. Camera/Dome mode. 4. System Setup key. 5. Camera Function keys and Direction keys. 6. Camera Menu key /Enter key: in Camera Control mode, press for 2 seconds will get OSD menu. In Camera Setup mode it functions as Enter key.

  • Page 6: Rear Connector Panel

    2.2 Rear connector panel 1. RS-485 connector (please refer to Appendix A for detail definition). 2. Power jack (12Vdc). 3. RS232 9pin D-sub connector. 2.3 Switch setting on rear connector PCB Warning! This operation is available for system installers only. A.

  • Page 7: Installation

    3. Installation 3.1 RS485 cable Cable Recommendation; Connector: RJ-11 6P6C Cable: Category 5 Max. Length: 1200 Meters (Notice!! Detail Pin Definitions Please reference Appendix A.) 3.2 Cable connections Rs485 Rs485 Video Rs485 Video Control keyboard Rs485 Video Video DIGITAL MULTIPLEXER Monitor Dome/Camera Connect the RS-485 cables from cameras to keyboard.

  • Page 8: Operations

    4. Operations 4.1 Power On After connecting all necessary cables, turn on the peripheral devices, and then connect DC12V adapter to the keyboard. The LCD will display the following message: CCTV Controller Version x.xx Fig.4.1.1 Later, the keyboard will enter ‘Stand By Mode’. CCTV Keyboard Stand By Mode: 2000/10/28 12:00:00...

  • Page 9: Osd Camera Setting

    xxx P/T/Z/F/OSD Cam Camera Control Mode: Fig.4.2.2 The second row on the LCD allows users to input number 1~255, it’s used to specify preset point or the other camera parameters. Detail operation will be described in the following sections. Please refer to camera’s manual to understand the function of each camera.

  • Page 10: Auto-Pan

    xxx. PST SPD DWELL [001] [10] [000] Fig.4.2.4.2 A. The first three digit (xxx) indicate the step number. B. PST means ‘Preset Point’, it is the preset point used for this step, range from 1 to 128. C. SPD means ‘Speed’, it defines how fast the dome will move from previous step to this step, the number range from 1 to 15.

  • Page 11: Cruise

    3.2 AutoPan Setting Enter for End Pos. Fig.4.2.5.4 And then you have to decide the pan direction and the pan speed: 3.3 Pan Direction RIGHT/LEFT: LEFT Fig.4.2.5.5 3.4 AutoPan Speed (1-4) : _ Fig.4.2.5.6 4.2.6 Cruise Under Camera Control Mode, you can press “CRUISE” key to enter Cruise mode, the LCD will display: 4.0 Cruise select: Cruise mode: 1.

  • Page 12: Zoom/Focus Lens Control

    Then move the dome to the end point and press “Select Device/ Enter” key to confirm. 4.2 Cruise setting Enter for End Pos. Fig.4.2.6.4 And then you have to press “Select Device/ Enter” key to save it. 4.3 Cruise setting Enter for Saving.
  • Page 13 4.2.8.2 Zoom speed setting This item allows you to change the speed of zoom lens movement, use "◄"/"►" keys to select Slow or Fast speed. 2.2 Zoom Speed SLOW] FAST Fig.4.2.8.2 4.2.8.3 Digital Zoom ratio This item allows you to change the digital zoom ratio from OFF (no digital magnify) to 8X (8 times digital magnify). 2.3 Digital Zoom X Fig.4.2.8.3 4.2.8.4 Alarm Setup...
  • Page 14 Menu 2.4.2 is the entry point for parameters related to Alarm1 input: ON/OFF (detect alarm signal or not), NC/NO (alarm signal type) and correspondent preset point for each Alarm input: 2.4.2 Alarm1 Setting Press Enter to Setup Fig.4.2.8.4.2 2.4.2.1 Alarm1 Setup [OFF] Fig.4.2.8.4.3 2.4.2.2 Alarm1 Setup...

  • Page 15: System Setting Mode

    4.2.8.7 Set TILT bias 2.7 Set TILT bias [+1] Fig.4.2.8.7 4.2.8.8 Check Camera Version This item shows you the hardware and software version of the dome camera, it may be an useful information when you’re checking with the installer for trouble shooting. 2.8 Camera Version H/W:Vx.x S/W:Vx.x Fig.4.2.8.8...

  • Page 16: System Linking

    1.0 System Setting System Setting Mode: Enter password [____] Fig.4.3 4.3.1 System Linking Menu 1.1 allow you to search for active cameras on the RS485 control bus again, press "◄" or "►" key to start searching. 1.1 System Linking Press ◄► to search.. Fig.4.3.1 4.3.2 Set Keyboard ID Menu 1.2 allow you to set up the ID number of this keyboard, use "◄"...

  • Page 17: Rs-232 Baud Rate Setting

    1.3.b Matrix output Monitor No.:[xxx] Fig.4.3.3.5 4.3.4 RS-232 Baud rate setting To select Item 4 (as Fig.4.3.4.1) and you can set RS232 Baud rate. The RS-232 protocol of keyboard is the standard 8,N,1. It provides three Baud rate setting (9600 (default), 4800 and 2400 bps). It can be set on your request (as Fig.4.3.4.1, 4.3.4.2, 4.3.4.3).

  • Page 18: System Date/Time Correction

    4.3.7 System Date/Time Correction Select Item 8(as Fig.4.3.7.1) and hit “ENTER” key (as Fig.4.3.7.2), then you can adjust all the devices at same time. Before you adjust the system date/time. Please check the date/time of this keyboard and make sure it’s correct. Hit “ESC” to go back System mode.

  • Page 19: Key Press Beep

    4.3.10 Key Press Beep The built-in buzzer will beep when the user press any valid key, this item allow you to turn the beep on or off. Use "◄" or "►" key to change the setting. 1.10 Key Press Beep [OFF] Fig.4.3.10 4.3.11 Alarm Reaction...

  • Page 20: Troubleshooting

    5. Troubleshooting When you get trouble with using the keyboard, please follow the procedures below to isolate the problem before call back to the installer. A. Nothing or wrong text is displayed on LCD. Possible causes and countermeasures: a. No power or unstable power source: check the output of the DC12V adapter is correct or not. b.

  • Page 21: Appendix A. Rs485 Communication

    Appendix A. RS485 Communication A.1 Connector (RJ-11 6P6C) Pin No. Definition Direction +12V in Power Power *pin 3,4,5 are basic connection, pin 2 is optional. A.2 ID Address Mapping A. System ID setting Item ID address Device name Remark 00H,0 Host controller Keyboard or computer 01H–DFH, 1~223...

  • Page 22: Appendix B. Technical Specifications

    Appendix B. Technical Specifications The list is the specifications of CCTV control keyboard, our company reserve the right to modify the specifications. Item Description System Control Camera Speed Dome Camera all function OSD Camera all function Zoom Lens Camera all function Video Multiplexer All function Video Matrix...

  • Page 23: Appendix C. The Architecture Of Supermpx And Supermmx

    Appendix C. The Architecture of SuperMPX and SuperMMX C.1 SuperMPX mode DOME ID #1 #2 #3 …… #16 #17 #18 ..…. #32 …. #208 ……. #223 1 2 3 …….. 16 1 2 3 …….. 16 1 2 3 …….. 15 ….
  • Page 24 C.2 SuperMMX mode DOME ID #1 #2 #3 …. #17 #18 …. …. #208 ……. #223 1 2 3 …….. 16 1 2 3 …….. 16 1 2 3 …….. 15 …. MPX#1 MPX#2 MPX#14 (ID=224) (ID=225) (ID=237) CM(Call Monitor) ….

  • Page 25: Appendix D. Commands Tree Of Operating And Setting

    Appendix D. Commands Tree of Operating and Setting System Joystick PAN/TILT control + 1 ~ 223 Select Camera Lens Control Zoom Wide ZOOM WIDE Zoom Tele ZOOM TELE Focus near FOCUS NEAR Focus far FOCUS FAR Auto-focus/Manual-focus AUTO/FOCUS Brightness down BRIGHTNESS - Brightness up BRIGHTNESS +...
  • Page 26 Enter password 1. System Linking Scan the exist device System Setup 2. Set Keyboard ID Keyboard ID Setting 0,240-254 3. System Monitor MPX,MTX,SuperMPX,SuperMMX 4. RS232 Baud-rate set Use ◄ ► key to select 2400/4800/9600 5. Date setting Set Date: year, month, day 6.

  • Page 27: Appendix E. Software Upgrade

    Appendix E. Software upgrade The system installer can use a Personal Computer to download the upgrade software to the keyboard via RS-232 port. The download procedure is described below: Warning! This operation is available for system installers only. Step 1 Execute the Auto-unpack.exe on the computer The program will create a sub-directory called “Keyboard”...
  • Page 28 1478 Old Country Road Plainview, NY 11803 www.elmousa.com...
