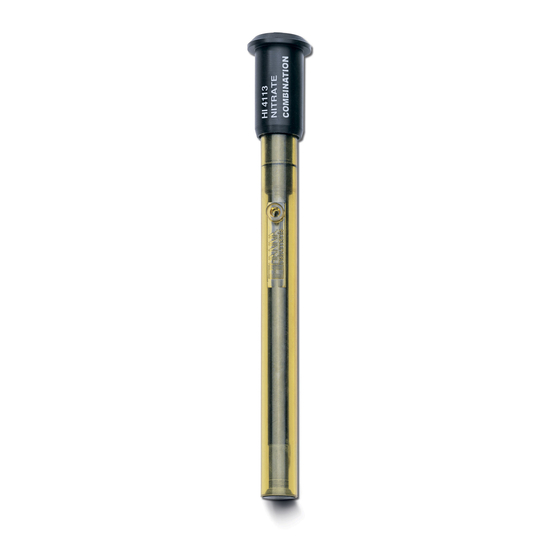

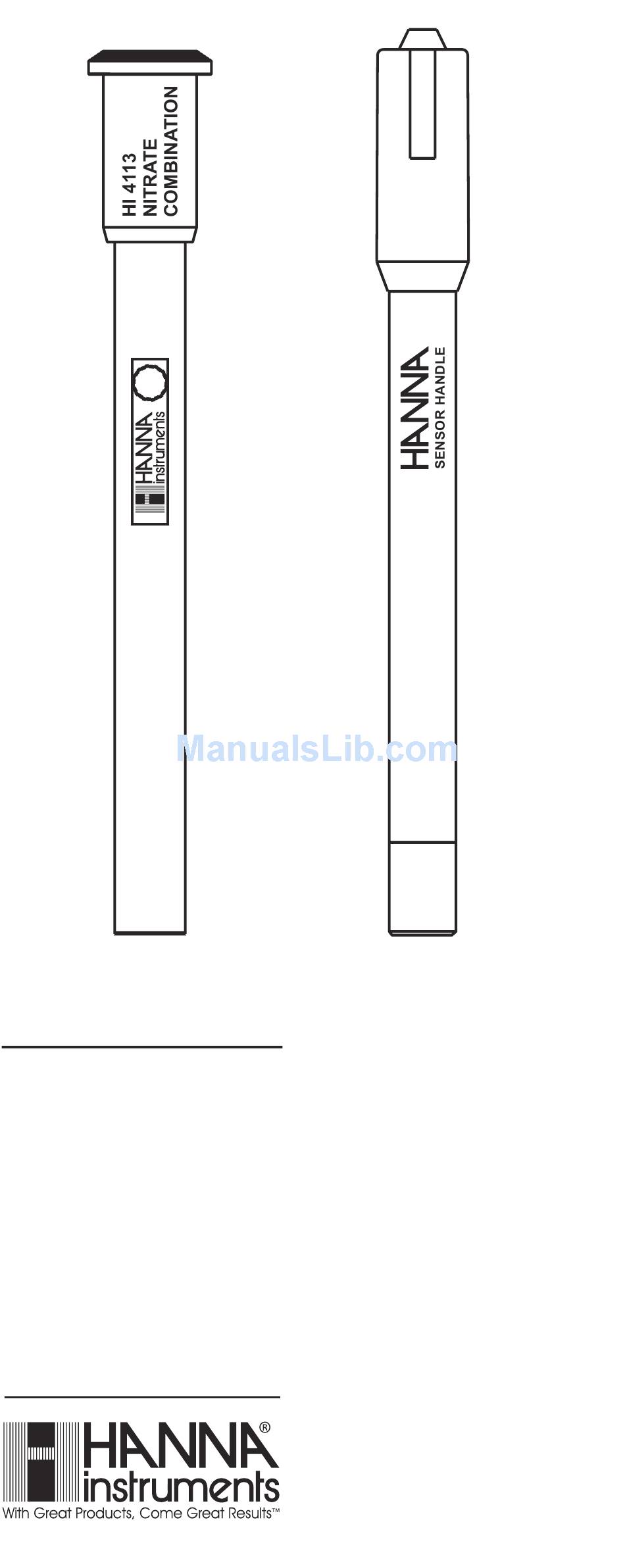

- Page 1 4000-50 Instruction Manual HI 4013 HI 4013 HI 4013 HI 4013 HI 4013 Half-cell HI 4113 HI 4113 HI 4113 HI 4113 HI 4113 Combination Nitrate Ion Selective Electrode...
- Page 2 HI 4013 Nitrate Half-cell HI 4013 Nitrate Half-cell HI 4013 Nitrate Half-cell HI 4013 Nitrate Half-cell HI 4013 Nitrate Half-cell HI 4113 Nitrate Combination Electrode HI 4113 Nitrate Combination Electrode HI 4113 Nitrate Combination Electrode HI 4113 Nitrate Combination Electrode HI 4113 Nitrate Combination Electrode I.
- Page 3 III. III. III. III. III. Theory of Operation Theory of Operation Theory of Operation : : : : : Theory of Operation Theory of Operation The HI 4013 and HI 4113 nitrate electrodes are potentio- metric devices used for the rapid determination of free ni- trate ions in water, emulsified foods and plant samples.
- Page 4 IV. IV. IV. IV. IV. Design elements of the HI 4013 and HI 4113 Design elements of the HI 4013 and HI 4113 Design elements of the HI 4013 and HI 4113 Design elements of the HI 4013 and HI 4113 Design elements of the HI 4013 and HI 4113 electrodes electrodes...
- Page 5 V. V. V. V. V. Equipment required: Equipment required: Equipment required: Equipment required: Equipment required: The HI 4013 requires the Hanna HI 5315 Double junction reference electrode with HI 7078 as external electrolyte. Hanna HI 4222 pH/ISE/mV meter or other suitable ion or pH/mV meter (Note: log/linear graph paper is useful if an ISE (ion) meter is not available).
- Page 6 O-Ring Due to shipping or storage the internal solution inside the PVC modules may have developed an air pocket near the membrane. Gently shaking the sensor down (like the old style mercury thermometer) will place the internal solution next to the membrane. Presoaking the Nitrate sensor in a 10 M standard without ISA for at least half-hour before calibration...
- Page 7 Additional HI 4113 guidelines Remove the protective plastic wrap that covers the ceramic junction before assembling sensor for the first time. Add reference HI 7078 fill solution to bottom of fill hole or empty and refill fill solution daily before us- ing.
- Page 8 4000-50 3. Holding the assembled electrode at the cable end, shake the sensor to ensure internal fill solution that may have separated during shipping is in contact with inner membrane surface. 4. Prepare HI 5315 reference electrode by filling electro- lyte reservoir with HI 7078 fill solution.
- Page 9 Remove Parafilm Install sensing module 4. Rinse inner stem with deionized water making certain to wet o-ring found on the inner stem. 5. Reassemble electrode by gently pushing the inner assembly into the outer body, sliding spring down cable, and screwing cap into place. 6.
- Page 10 7. Holding the body of the electrode gently press upper cap with your thumb. This permits the fill solution to drain out of the body. Release cap and verify elec- trode returns to its original position. (You may need to gently assist for this to occur).
- Page 11 stabilized. This value should be less than the previous value noted (more negative). Determine the difference between the two mV values. An acceptable value for this slope is 56 ± 4 mV (20-25°C) X. X. X. X. X. Corrective action Corrective action Corrective action Corrective action...
- Page 12 2. Unscrew upper cap and slide down cable toward con- nector. 3. Move spring and outer body down cable also. 4. Dry off inner stem and module with a soft tissue. 5. Hold inner stem and unscrew module and replace with a new one.
- Page 13 Procedure: Follow sections VIII and IX to prepare electrodes for mea- surement. 1) Follow section VI to prepare standards/ solution. Stan- dards should bracket and fall within the range of interest. Standards and solutions should be at the same temperature. 2 mL of HI 4013-00 is added to 100 mL of both samples and standards.
- Page 14 XII. XII. XII. XII. Other Measurement T Other Measurement T Other Measurement T echniques echniques Other Measurement T echniques echniques XII. Other Measurement T echniques Known addition Known addition Known addition Known addition Known addition An unknown concentration can be determined by adding a known volume and concentration of NO standard to the sample.
- Page 15 XIII XIII XIII pH and Interferents pH and Interferents XIII. pH and Interferents pH and Interferents XIII pH and Interferents HI 4013/ HI4113 Nitrate electrodes can operate over a pH range of 3 to 8 but better results are found if pH is kept constant throughout calibration and test.
-
Page 16: Warranty
Damage due to accidents, misuse, misapplication, tampering or lack of prescribed maintenance is not covered. Hanna Instruments reserves the right to modify the design, construction or appearance of its products without advance notice.
