Summary of Contents for Hanna Instruments HI 121

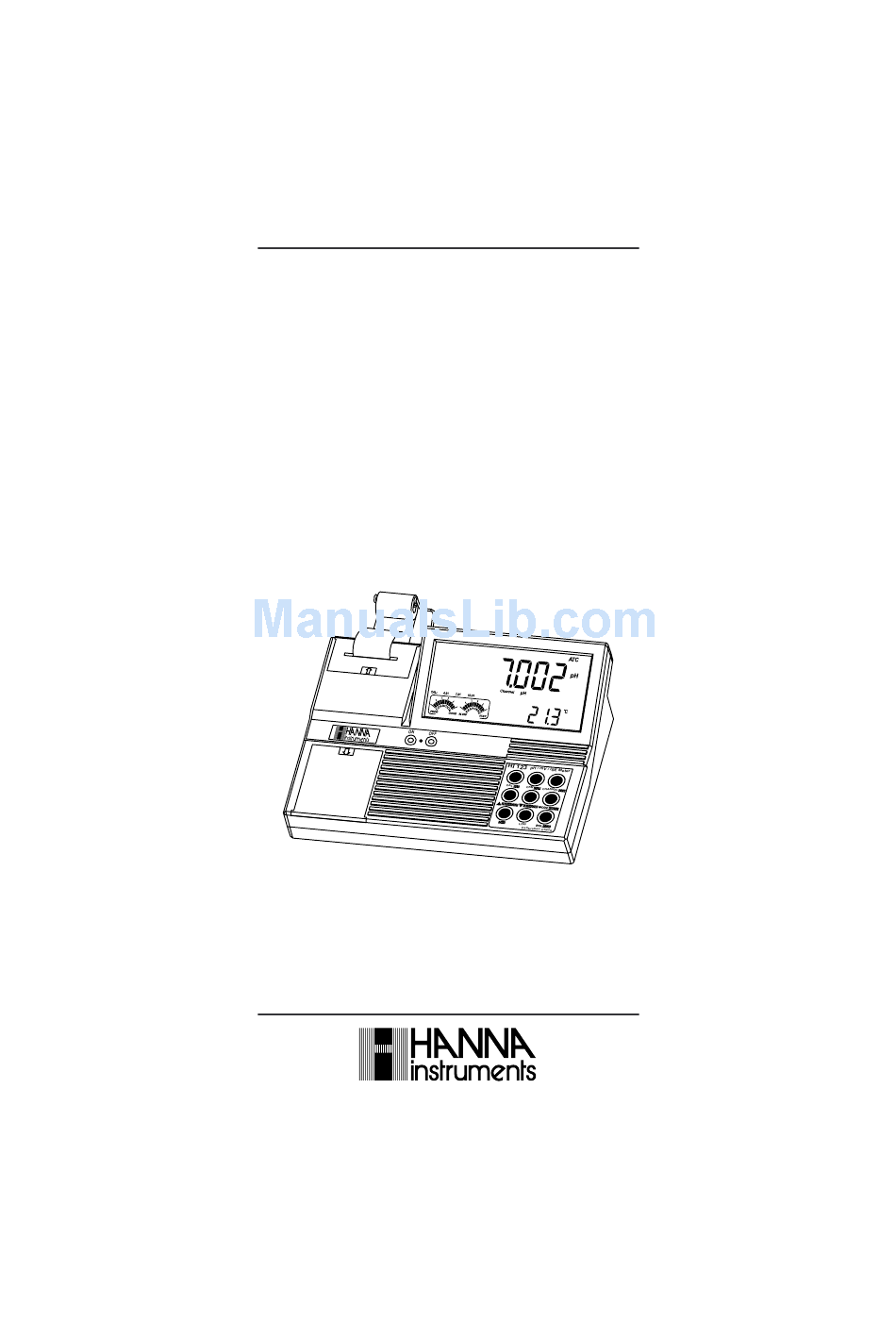

- Page 1 Instruction Manual HI 121 & HI 123 pH/mV/ISE/Temperature Bench Meters with Calibration Check w w w. h a n n a i n s t . c o m...
-
Page 2: Table Of Contents
If the repair is not covered by the warranty, you will be notified of the charges incurred. If the instrument is to be returned to Hanna Instruments, first obtain a Returned Goods Authorization number from the Technical Service department and then send it with shipping costs prepaid. -
Page 3: Preliminary Examination
PRELIMINARY EXAMINATION Remove the instrument from the packing material and examine it carefully to make sure that no damage has occurred during shipping. If there is any damage, notify your Dealer or the nearest Hanna Service Center. Each instrument is supplied with: •... -
Page 4: Functional Description Hi 121
FUNCTIONAL DESCRIPTION HI 121 Front Panel Electrode Condition Primary LCD Electrode Response Secondary LCD HI 121 pH / mV / ISE Meter AutoHOLD CHANNEL AutoLOG MODE RelmV Calibration Check Reso Rear Panel pH/ORP TEMP POWER RS232 1) Left Keyboard 2) ON switch 3) OFF switch 4) Right Keyboard 5) Reference input socket for ISE channel... -
Page 5: Functional Description Hi 123
FUNCTIONAL DESCRIPTION HI 123 Front Panel Paper Roll Electrode Condition Primary LCD Electrode Response Secondary LCD HI 123 pH / mV / ISE Meter AutoHOLD Print Paper CHANNEL AutoLOG RelmV Calibration Check Reso Rear Panel pH/ORP TEMP POWER RS232 1) Left Keyboard 2) ON switch 3) OFF switch 4) Right Keyboard... - Page 6 HI 121 KEYBOARD ON THE LEFT AutoHOLD AutoLOG RelmV Resolution Shortcuts to alternate functions 1) AutoHOLD key, to freeze the first stable reading on the LCD. 2) GLP key, to display Good Laboratory Practice Information. 3) SET key, to enter/exit SETUP mode. key, to toggle between parameters while in RECALL or SETUP modifying mode (backwards), to toggle between absolute mV and temperature while in Relative mV mode and between pH buffer and...
- Page 7 HI 121 MAIN KEYBOARD ON THE RIGHT HI 121 pH / mV / ISE Meter CHANNEL MODE Calibration Check 1) CAL key, to enter and exit/escape calibration mode. SET key (second function), to enter/exit SETUP mode. 2) CFM key, to confirm different values. GLP key (second function), to display Good Laboratory Practice Information.
- Page 8 HI 123 KEYBOARD ON THE LEFT AutoHOLD Print Paper AutoLOG RelmV Resolution Shortcuts to alternate functions 1) AutoHOLD key, to freeze the first stable reading on the LCD. 2) Print key, to obtain a printout or to cancel printing. 3) Paper key, to pull out the paper. key, to toggle between parameters while in RECALL or SETUP modifying mode (backwards), to toggle between absolute mV and temperature while in Relative mV mode and between pH buffer and...
- Page 9 HI 123 MAIN KEYBOARD ON THE RIGHT HI 123 pH / mV / ISE Meter CHANNEL Calibration Check 1) CAL key, to enter and exit/escape calibration mode. SET key (second function), to enter/exit SETUP mode. 2) CFM key, to confirm different values. GLP key (second function), to display Good Laboratory Practice Information.
-
Page 10: Hi 121 And Hi 123 Specifications
H I 1 2 1 A N D H I 1 2 3 SPECIFICATIONS – – ± ± – C º – ( ) F º r f ( r f ( r f ( ) 9 . r f ( C º... -
Page 11: Operational Guide
OPERATIONAL GUIDE POWER CONNECTION Plug the 12 VDC adapter into the power supply socket. Notes: • These instruments use non volatile memory to retain the pH, mV, Ion, temperature calibrations and all other settings, even when unplugged. • Make sure a fuse protects the main line. ELECTRODE AND PROBE CONNECTIONS For HANNA P type pH or ORP electrodes (with internal reference) connect the electrode’s BNC to the socket on the back of the instrument (#8 on page 4... - Page 12 • The instrument automatically defaults to pH or mV measurement mode, if a HANNA P type pH or ORP electrode is detected. • If no HANNA P type electrode is detected, the instrument starts in the same range as it was at power off. pH MEASUREMENTS Make sure the instrument has been calibrated before taking pH measurements.
- Page 13 The temperature can be adjusted with the ARROW keys or the numerical keypad (from –20.0 ºC to 120.0 ºC or from –4.0 ºF to 248.0 ºF). Press NUM to change the temperature value with the numerical keys. The “2nd” tag will blink. Press CLR or 2nd then CLR if you want to delete digits of the displayed value.
-
Page 14: Temperature Measurements
Note: Press from the left keypad to toggle between temperature and absolute mV reading on the secondary LCD. The Relative mV reading is equal to the difference between the absolute mV input value and relative mV offset established in the relative mV calibration. -
Page 15: Ph Calibration
pH CALIBRATION Calibrate the instrument often, especially if high accuracy is required. The instrument should be recalibrated: • Whenever the pH electrode is replaced. • At least once a week. • After testing aggressive chemicals. • If “CAL DUE” tags are blinking during measurement. •... - Page 16 All new calibrations will override existing stored calibration data, in a ±0.2 pH window, at these calibration points. The slopes adjacent to the calibration points will be reevaluated. If the new calibration point has no correspondence in the existing stored calibration data, it is added to it if this is not full, or the instrument will ask which buffer will be replaced by the current buffer.
- Page 17 • The “ ” tag will blink on the LCD until the reading is stable. • When the reading is stable and close to the selected buffer, “CFM” tag blinks. • Press CFM to confirm calibration. • The calibrated value is then displayed on the primary LCD and the secondary LCD will display the second expected buffer value, together with “CAL”, “Cal Point 2”...
- Page 18 • After the third calibration point is confirmed, immerse the pH electrode and the temperature probe approximately 4 cm (1½”) into the fourth buffer solution and stir gently. The temperature probe should be close to the pH electrode. • If necessary, press the ARROW keys to select a different buffer value. •...
- Page 19 If the existing stored calibration is full (five calibration points), the instrument asks which buffer will be replaced by current buffer. Press the ARROW keys to select another buffer to be replaced. Press CFM to confirm the buffer that will be replaced. Press CAL to leave calibration without replacing.
-
Page 20: Enhanced Calibration Messages
ENHANCED CALIBRATION MESSAGES The stored calibration history to used issue error and warning messages during calibration to help ensure the highest accuracy. As electrode aging is normally a slow process, substantial changes from previous calibrations are likely due to a temporary problem with the electrode or buffers. -
Page 21: Electrode Condition & Electrode Response Time
CLEAN ELECTRODE This warning message appears in order to alert the user that some dirt or deposits could be on the electrode. Refer to the electrode Cleaning Procedure. This ensures the removal of film, dirt or deposits on the glass bulb and reference junction. -
Page 22: Relative Mv Calibration
The electrode response is evaluated only when calibration has been performed using pH 7.01 or pH 6.86, pH 4.01 and pH 10.01 or pH 9.18 buffers. When the instrument cannot evaluate the electrode response or pH 1.68/12.45 buffer was used as calibration buffer, the response gauge will be empty. -
Page 23: Ise Calibration
ISE CALIBRATION For greatest accuracy, it is recommended to calibrate the instrument frequently. Due to electrode conditioning time, the electrode must be kept immersed a few seconds to stabilize. The user will be guided step by step during calibration with easy to follow tags on the display. This will make the calibration a simple and error-free procedure. - Page 24 • The calibrated value will be displayed on the primary LCD and the second expected standard solution on the secondary LCD. Note: The instrument will automatically skip the standard used for the first point. • After the first calibration point is confirmed, immerse the ISE electrode approximately 4 cm (1½”) into the second standard solution.
-
Page 25: Good Laboratory Practice (Glp)
GOOD LABORATORY PRACTICE (GLP) GLP is a set of functions that allows storage and retrival of data regarding the maintenance and status of the electrode. All data regarding pH, Rel mV and ISE calibration is stored for the user to review when necessary. CALIBRATION ALARM TIME OUT For pH calibration, all the instruments allow the user to set the number of days before the next required pH calibration. - Page 26 • The pH calibration offset. • The pH calibration slope (the GLP slope is the average of the calibration slopes; the percentage is referred to the ideal value of 59.16 mV/pH). • The calibration buffers in calibrating order, with the corresponding warnings.
- Page 27 The fourth pH calibration buffer: The fifth pH calibration buffer: Notes: • The “OLd” message displayed beside the pH value means that this buffer was not used during last calibration. Press 2nd then SET key if you want to see calibration date (or time, if old calibration was performed in the same day with current calibration).
- Page 28 LAST ISE CALIBRATION DATA Last ISE calibration data is stored automatically after a successful calibration. To view the ISE calibration data, press 2nd then GLP key while in ISE measurement mode. The instrument will display the date (yyyy.mm.dd) of the last calibration as in pH GLP mode.
- Page 29 LAST RELATIVE mV CALIBRATION DATA Last Relative mV calibration data is stored automatically after a successful calibration. To view the Relative mV calibration data, press 2nd then GLP key or simply GLP from the left keyboard (HI 121) while in Relative mV measurement mode. The instrument will display the Relative mV GLP information.
-
Page 30: Setup
S E T U P Setup mode allows viewing and modifying the following parameters: • Calibration Alarm Time Out (pH channel only) • One-point calibration behaviour (pH channel only) • Custom buffer 1 (pH channel only) • Custom buffer 2 (pH channel only) •... - Page 31 If there is another item to be set (e.g. minutes), press MODE or from the left keyboard. The other item will start blinking. Press the ARROW keys to change the displayed value or simply use the numerical keys for all numerical parameters. Press CFM to confirm or CAL to escape.
- Page 32 Notes: • The custom buffers can be set only with 0.001 pH resolution. If 0.01 pH resolution is selected during calibration, the displayed custom buffer value will be a rounded one. • For calibration alarm time out, custom buffers, alarm limits, start and stop condition items, if pressing CLR or 2nd then CLR while in changing mode, the selected item will be set to default.
- Page 33 When in normal measurement mode: • If only “AL.LO” item is set, the instrument will beep when the reading is below alarm low value. • If only “AL.HI” item is set, the instrument will beep when the reading is above alarm high value. •...
-
Page 34: Logging
The AutoLOG will be started in according with “Strt” item, from button (“btn”) by pressing AutoLOG or when the starting time condition is reached. The AutoLOG will stop in according with the selected option for “AutoLOG End Condition” item or when AutoLOG is pressed. L O G G I N G This feature allows the user to log pH and Rel mV or ISE and Rel mV measurements, together with temperature automatically. - Page 35 If the LOG space is full, “FULL LOC” message will be displayed on the LCD for a few seconds with “LOG” tag blinking, and then ”FrEE 0” message. The instrument returns to normal measurement mode. AutoLOGGING The setable AutoLOG modes make these instruments very useful in a wide range of applications: •...
- Page 36 To stop autologging, press 2nd then AutoLOG key again, or simply TEMPERATURE CALIBRATION AutoLOG from the left keyboard. (for technical personnel only) The instrument will display for a few seconds the lot number on the primary LCD and the sample number on the secondary LCD, together with “AutoLOG”...
- Page 37 • If RCL mode was invoked while the instrument was in ISE channel: the last ppm or Rel mV memorized reading on the primary LCD and the lot number on the secondary LCD. Note: If LOG mode was invoked while the instrument was in mV/Relative mV measurement range, the corresponding memorized reading will be displayed on the primary LCD, along with “RelmV”...
-
Page 38: Autohold
Notes: • The “LdM” message on the secondary LCD shows that data has been stored in Log on demand mode. • Pressing 2nd then SET key, the instrument toggles between lot number, record number (Log on demand only) or all lots. •... -
Page 39: Printing (Hi 123 Only)
PRINTING (HI 123 only) A complete set of information based on the measured, set or recorded data can be printed. Data can be printed on demand (for current reading in measurement mode, GLP and SETUP modes) by pressing 2nd then Print key, or simply Print from the left keyboard, or automatic (for AutoLOG and Log on demand modes). - Page 40 • For ISE range: GLP Ion Instr ID 0002 Date 2004/10/15 Time 14:25:05 Slope -59.3 Ion Charge Cal Buffers -312.8 -134.8 When in SETUP mode, the following information can be printed: • If 2nd then Print key are the first INSTRUMENT SETUP keys pressed after entering SETUP Ion Charge...
- Page 41 • Press CFM to print the SETUP SETUP REPORT REPORT or CAL to escape without Instr ID 0002 printing. Ion Charge Date 2004/10/15 Time 16:25:31 Printer Language Beep ALARM HIGH LIMIT Rel mV ALARM LOW LIMIT Rel mV AUTOLOG: Interval 00:30 START Condition: Date...
- Page 42 • For AutoLOG mode: START AUTOLOG Instr ID 0002 Date 2004/10/15 Time 18:05:01 Interval 00:30 Slope 99.7% Offset 0.1mV Sample No 7.02 -0.5 °C 25.0 Sample No 7.01 -0.2 °C 25.0 Sample No 6.97 °C 24.9 STOP AUTOLOG Date 2004/10/15 Time 18:06:51 Note: If selecting a different printing language, all data will be printed in...
-
Page 43: Temperature Calibration (For Technical Personnel Only)
TEMPERATURE CALIBRATION ( f o r t e c h n i c a l p e r s o n n e l o n l y ) All the instruments are factory calibrated for temperature. Hanna’s temperature probes are interchangeable and no temperature calibration is needed when they are replaced. -
Page 44: Mv Calibration (For Technical Personnel Only)
• Press CFM to confirm. The instrument returns to measurement mode. Note: If the reading is not close to the selected calibration point, “WRONG” tag will blink. Change the temperature probe and restart calibration. mV CALIBRATION ( f o r t e c h n i c a l p e r s o n n e l o n l y ) All the instruments are factory calibrated for mV. -
Page 45: Pc Interface
Notes: • Other cables than HI 920010 may use a different configuration. In this case, communication between instrument and PC may not be possible. • If you are not using Hanna Instruments HI 92000 software, please see the following instructions. SENDING COMMANDS FROM PC It is also possible to remotely control the instrument with any terminal program. - Page 46 Is equivalent to pressing SET Is equivalent to pressing PRINT (HI 123 only) Is equivalent to pressing CLR Is equivalent to pressing OFF Is equivalent to pressing AutoHOLD CHR xx Change the instrument range according with the parameter value (xx): •...
- Page 47 /MLPxxx Selects lot on pH channel. /MLIxxx Selects lot on ISE channel. Downloads the selected AutoLOG. LODPxxx Requests the xxx pH record logged data. LODIxxx Requests the xxx ISE record logged data. LODPALL Requests all pH Log on demand. LODIALL Requests all ISE Log on demand. Notes: •...
-
Page 48: Ph Buffer Temperature Dependence
pH BUFFER TEMPERATURE D E P E N D E N C E Temperature has an effect on pH. The calibration buffer solutions are affected by temperature changes to a lesser degree than normal solutions. During calibration the instrument will automatically calibrate to the pH value corresponding to the measured or set temperature. -
Page 49: Electrode Conditioning & Maintenance
E L E C T R O D E C O N D I T I O N I N G & MAINTENANCE PREPARATION PROCEDURE Remove the protective cap of the pH electrode. DO NOT BE ALARMED IF SALT DEPOSITS ARE PRESENT. This is normal with electrodes. - Page 50 For refillable electrodes: If the filling solution (electrolyte) is more than 2½ cm (1”) below the fill hole, add HI 7082 or HI 8082 3.5M KCl Electrolyte Solution for double junction or HI 7071 or HI 8071 3.5M KCl+AgCl Electrolyte Solution for single junction electrodes.
- Page 51 pH CLEANING PROCEDURE • General Soak in Hanna HI 7061 or HI 8061 General Cleaning Solution for approximately ½ hour. • Protein Soak in Hanna HI 7073 or HI 8073 Protein Cleaning Solution for 15 minutes. • Inorganic Soak in Hanna HI 7074 Inorganic Cleaning Solution for 15 minutes.
-
Page 52: Printer Maintenance (Hi 123 Only)
PRINTER MAINTENANCE (HI 123 only) HI 123 instrument uses plain paper rolls 44 mm width. To insert a new paper roll, follow the procedure below: • For an easier insertion, cut the paper edge as shown in the next figure: •... -
Page 53: Troubleshooting Guide
T R O U B L E S H O O T I N G G U I D E o l S p s e / e s c x e s s e e v i y t r i c e l o r t . - Page 54 T R O U B L E S H O O T I N G G U I D E ( c o n t . ) r e t s i d a l p a t a t a e b i l t a r n o i...
-
Page 55: Temperature Correlation For Ph Sensitive Glass
TEMPERATURE CORRELATION FOR pH SENSITIVE GLASS The resistance of glass electrodes partially depends on the temperature. The lower the temperature, the higher the resistance. It takes more time for the reading to stabilize if the resistance is higher. In addition, the response time will suffer to a greater degree at temperatures below 25 ºC (77 ºF). -
Page 56: Accessories
A C C E S S O R I E S pH BUFFER SOLUTIONS HI 5016 pH 1.68 Buffer Solution, 500 mL bottle HI 5004 pH 4.01 Buffer Solution, 500 mL bottle HI 5068 pH 6.86 Buffer Solution, 500 mL bottle HI 5007 pH 7.01 Buffer Solution, 500 mL bottle HI 5091... - Page 57 ORP PRETREATMENT SOLUTIONS HI 7091L Reducing Pretreatment Solution, 500 mL bottle HI 7092L Oxidizing Pretreatment Solution, 500 mL bottle pH ELECTRODES All electrodes with code ending with P are supplied with BNC & pin connectors and 1 m (3.3') cable, as shown below: HI 1043P Glass-body, double junction, refillable, combination pH electrode.
- Page 58 HI 1330P Glass-body, semimicro, single junction, refillable, combination pH electrode. Use: laboratory, vials. HI 1332P Plastic-body (Ultem ® ), double junction, refillable, combination pH electrode. Use: general purpose. ORP ELECTRODES HI 3131P Glass-body, refillable, combination platinum ORP electrode. Use: titration. Consult the Hanna General Catalog for more electrodes with BNC and pin connectors.
- Page 59 24 VAC or 60 VDC. To avoid damage or burns, do not perform any measurements in microwave ovens. Hanna Instruments reserves the right to modify the design, construction and appearance of its products without advance notice.
- Page 60 SALES AND TECHNICAL SERVICE CONTACTS Australia: Tel. (03) 9769.0666 • Fax (03) 9769.0699 China: Tel. (10) 88570068 • Fax (10) 88570060 Egypt: Tel. & Fax (02) 2758.683 Germany: Tel. (07851) 9129-0 • Fax (07851) 9129-99 Greece: Tel. (210) 823.5192 • Fax (210) 884.0210 Indonesia: Tel.
