INSTRUCTION MANUAL
HI1006-18
HI1016-18
•
HI1006-38
HI1016-38
•
HI1006-48
HI1016-48
•
pH and Temperature
Industrial Smart Probes
HI510 Compatible
®
Hanna
is committed to developing and deploying digital solutions
with a positive impact on the environment and climate.
Please scan the QR code or follow the link
to download the
HI510
https://manuals.hannainst.com/HI510
Hanna Instruments Inc., 584 Park East Drive, Woonsocket, RI 02895 USA
controller user manual.
www.hannainst.com
Advertisement
Table of Contents
Related Manuals for Hanna Instruments HI1006-18
Summary of Contents for Hanna Instruments HI1006-18
- Page 1 Please scan the QR code or follow the link to download the HI510 controller user manual. https://manuals.hannainst.com/HI510 Hanna Instruments Inc., 584 Park East Drive, Woonsocket, RI 02895 USA www.hannainst.com...
-
Page 2: Table Of Contents
All rights are reserved. Reproduction in whole or in part is prohibited without the written consent of the copyright owner, Hanna Instruments Inc., Woonsocket, Rhode Island, 02895, USA. Hanna Instruments reserves the right to modify the design, construction, or appearance of its products without advance notice. -
Page 3: Preliminary Examination
• Before powering the controller, verify the probe wiring has been done following the instructions detailed in this manual. 3. GENERAL DESCRIPTION & INTENDED USE ® Hanna Instruments has designed an extensive range of flat surface, industrial pH probes intended for industrial process control when teamed up with the HI510 Universal Process Controller. -
Page 4: Main Features
Main Features 4. MAIN FEATURES • Rugged, chemically-resistant PVDF body • Specialized glass sensor for fast stabilization and accurate results • 3/4” NPT external thread for mounting • Built-in temperature sensor for measurement and compensation • Matching pin helps avoid typical problems caused by grounding loop current •... -
Page 5: Specifications
5 Specifications 6. SPECIFICATIONS HI1006-18zz Range 0.00 to 12.00 pH Resolution 0.1 pH or 0.01 pH Accuracy ± 0.02 pH Calibration Up to three-points (option to select from five standard buffers) Range –5.0 to 80.0 °C (23.0 to 176.0 °F) Resolution 0.1 °C;... -

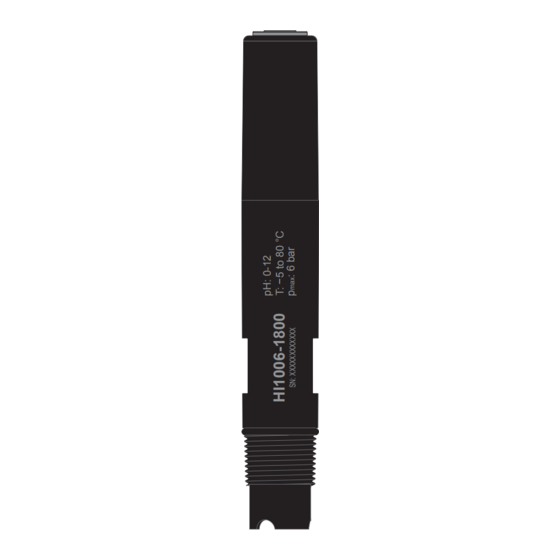

Page 6: Probe Dimensions & Cable Connection
Probe Dimensions & Cable Connection 7. PROBE DIMENSIONS & CABLE CONNECTION Ø 22 mm (0.9”) 3/4’’ NPT Ø 28 mm (1.1”) 17 mm (0.7") 38 mm (1.5") 182 mm (7.1") 183 mm (7.2") Align the pins and key then push the plug into the socket. Rotate the collar to lock in place. - Page 7 Installation Typical installation examples with mounting accessories Accessories are sold separately. In-line mounting and flow-cell installation require that saddle and flow cell are completely filled with water. In-line mounting with probe saddle 1 Probe 2 Probe fitting kit 3 Saddle 4 Sensor tip 5 Pipe Note: Probe can be rotated to prevent air entrapment inside the electrode.
- Page 8 Installation Tank immersion with submersible electrode holder 1 Probe cable 2 Cable gland 3 Electrode holder cap 4 Adjustable immersion level 5 Electrode holder 6 Probe body 7 O-ring, Ø 22.2 mm (0.87”) 8 Sensor tip 9 Protective end cap HI60501 HI60503 (PVC / PVDF submersible holders) and...
- Page 9 Installation Flow-cell installation Do not allow deposits of sediment or other foreign material to accumulate within the sensing area. 1 Process controller 2 Wiring cable 3 pH probe 4 Flow-cell adapter 5 Flow cell FLOW CELL 6 Flow-cell valves 7 Saddle EXIT FLOW VALVE 2 VALVE 1...
-
Page 10: Wiring The Probe To The Controller
Controller allows two types of pH calibration procedures: • Standard calibration performed in standard buffer solutions ® Hanna Instruments : 1.68, 4.01, 7.01, 10.01, 12.45 pH NIST: 1.68, 4.01, 6.86, 9.18, 12.45 pH • Process calibration performed with probes calibrated in standards and installed in the process... - Page 11 Calibration Standard Calibration Preparation • On the controller, go to Channel setup, Probe settings to select required buffer group. • Up to three pH buffers may be used for a calibration. At least two buffers are required to determine a pH slope. Note: It is recommended to select buffers that bracket the expected process pH.
-
Page 12: Maintenance & Conditioning
Maintenance & Conditioning Procedure 1. Press the key then CAL virtual key to enter calibration mode. 2. Press Process, to enter process calibration. 3. Use the keys to adjust the value to the one determined with the calibrated portable meter. 4. -
Page 13: Accessories
Accessories 12. ACCESSORIES Ordering Information Product Description pH Calibration Solutions HI7004M or HI7004L 4.01 pH buffer solution, 230 or 500 mL HI7006M or HI7006L 6.86 pH buffer solution, 230 or 500 mL HI7007M or HI7007L 7.01 pH buffer solution, 230 or 500 mL HI7009M or HI7009L 9.18 pH buffer solution, 230 or 500 mL HI7010M or HI7010L... -
Page 14: Abbreviations
If the repair is not covered by the warranty, you will be notified of the charges incurred. If the instrument is to be returned to Hanna Instruments, first obtain a Returned Goods Authorization (RGA) number from the Technical Service department and then send it with shipping costs prepaid.
