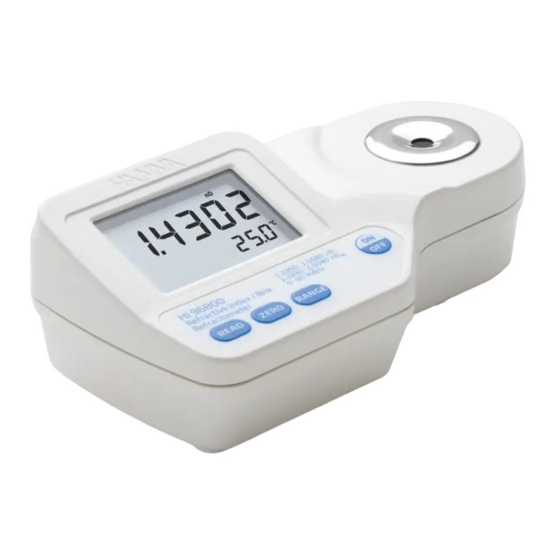

Instruction Manual
HI 96811, HI 96812
HI 96813, HI 96814
Refractometers for Wine and Grape
Product Measurements
w w w. h a n n a i n s t . c o m
1
QAQC LAB WHITE STONE VA 22578
TEL (804) 318-3686

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HI 96811 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Hanna Instruments HI 96811

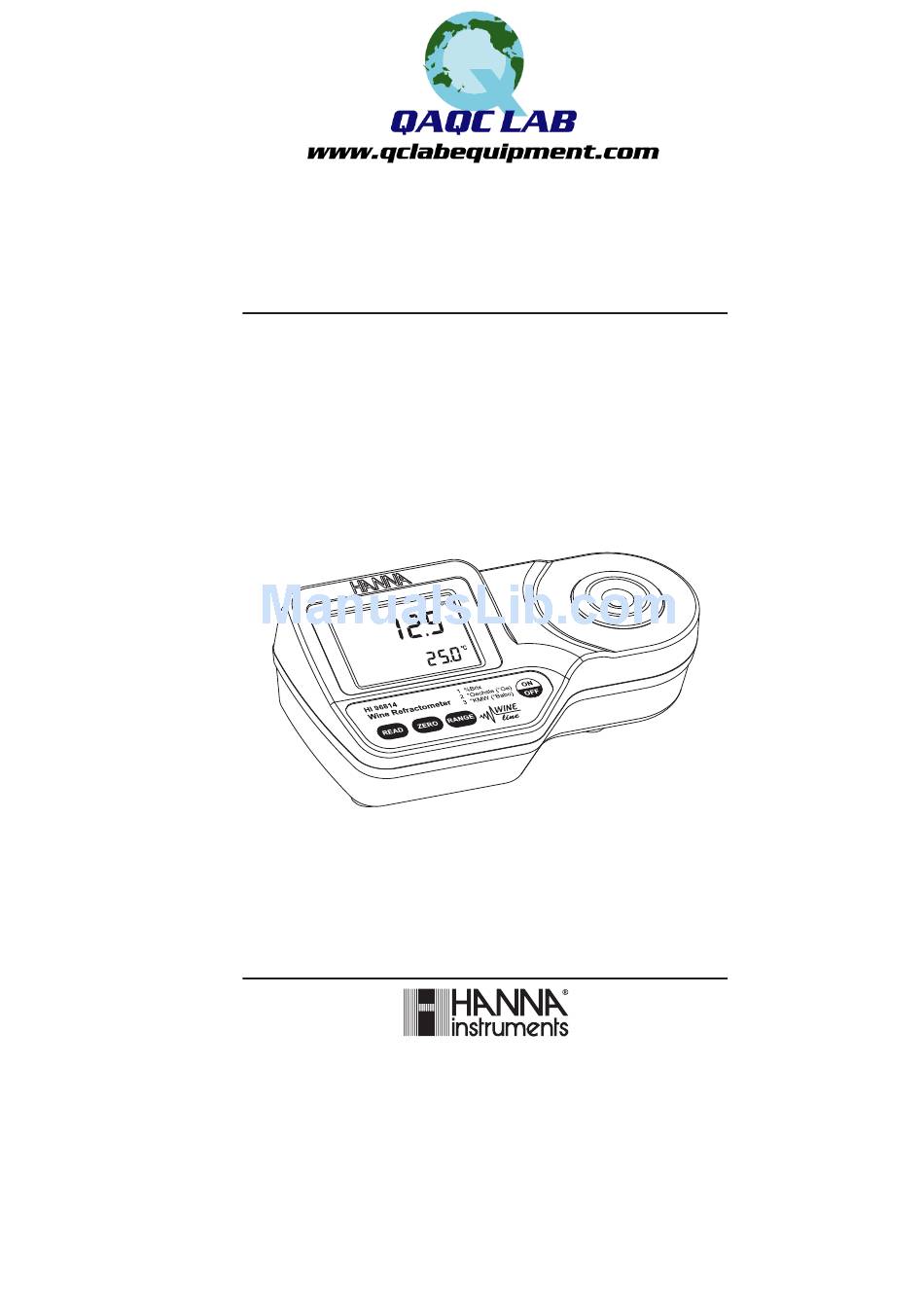

  • Page 1 Instruction Manual HI 96811, HI 96812 HI 96813, HI 96814 Refractometers for Wine and Grape Product Measurements w w w. h a n n a i n s t . c o m QAQC LAB WHITE STONE VA 22578 TEL (804) 318-3686...
  • Page 2: Table Of Contents

    A defective instrument must be returned in its original packing. All rights are reserved. Reproduction in whole or in part is prohibited without the written consent of the copyright owner, Hanna Instruments Inc., Woonsocket, Rhode Island, 02895, USA. QAQC LAB WHITE STONE VA 22578...
  • Page 3: General Description

    All are equally valid ways to measure the sugar content of grape or must samples in the field or winery. The HI 96811, HI 96812, HI 96813 and HI 96814 are optical instruments that are based on the measurement of the refractive index of a solution. The measurement of refractive index is simple and quick and provides the vintner a standard accepted method for sugar content analysis.
  • Page 4: Specifications

    SPECIFICATIONS HI 96811 Range: 0 to 50 %Brix / 0 to 80°C (32 to 176°F) Resolution: %Brix / 0.1°C (0.1°F) Accuracy: ±0.2 %Brix / ±0.3°C (±0.5°F) HI 96812 Range: 0 to 28 °Baumé / 0 to 80°C (32 to 176°F) Resolution: °Baumé...
  • Page 5: Principle Of Operation

    PRINCIPLE OF OPERATION %Brix, °Baumé, °Oechsle, °KMW and % potential alcohol determinations are made by measuring the refractive index of a solution. Refractive Index is an optical characteristic of a substance and the number of dissolved particles in it. Refractive Index is defined as the ratio of the speed of light in empty space to the speed of light in the substance.
  • Page 6: Measurement Units

    MEASUREMENT UNITS MEASUREMENT UNITS HI 96811, HI 96812, HI 96813 and HI 96814 measure sugar content in several units to meet the differing requirements found in the wine industry. HI 96811, HI 96813 and HI 96814 convert the refractive index of the sample to sucrose concentration in units of percent by weight, %Brix (also referred to as °Brix).
  • Page 7: Functional Description

    FUNCTIONAL DESCRIPTION FUNCTIONAL DESCRIPTION FUNCTIONAL DESCRIPTION FUNCTIONAL DESCRIPTION FUNCTIONAL DESCRIPTION TOP VIEW 1. Liquid Crystal Display (LCD) 2. READ Key (User Measurement) 3. ZERO Key (User Calibration) 4. ON/OFF 5. Primary Display 6. Secondary Display 7. Stainless Steel Sample Well and Prism 8.
  • Page 8: Display Elements

    DISPLAY ELEMENTS DISPLAY ELEMENTS DISPLAY ELEMENTS DISPLAY ELEMENTS DISPLAY ELEMENTS 1. SETUP: Factory Calibration Tag 2. Measurement in Progress Tag 3. Battery (blinks when low battery condition detected) 4. CAL: Calibration Tag 5. Automatic Temperature Compensation (blinks when temperature exceeds 10-40°C / 50-104°F range) 6 Primary Display (displays measurement and error messages) 7.
  • Page 9: Measurement Guidelines

    MEASUREMENT GUIDELINES MEASUREMENT GUIDELINES MEASUREMENT GUIDELINES MEASUREMENT GUIDELINES MEASUREMENT GUIDELINES • Handle instrument carefully. Do not drop. • Do not immerse instrument under water. • Do not spray water to any part of instrument except the “sample well” located over the prism. •...
  • Page 10: Measurement Procedure

    3. Press the ZERO key. If no error messages appear, your unit is calibrated. (For a description of ERROR MESSAGES see page 14). Note: The 0.0 screen will remain until a sample is measured or the instrument is turned off. 4.
  • Page 11: To Change Measurement Unit (Hi 96813, Hi 96814)

    Note: The last measurement value will be displayed until the next sample is measured or the instrument is turned off. Temperature will be continuously updated. Note: The ”ATC” tag blinks and automatic temperature compensation is disabled if the temperature exceeds the 10-40 °C / 50-104 °F range. 4.
  • Page 12: To Change Temperature Unit

    For HI 96814 only: 1. Press the RANGE key to select measurement units %Brix, °Oechsle (°Oe) or °KMW (°Babo). The instrument toggles between the three scales each time the key is pressed and the primary display indicates “bri” for %Brix, “OE” for °Oechsle or “bAbo” for °KMW. When the instrument displays the screen with 4 dashes the instrument is ready for measurement.
  • Page 13: To Change Potential Alcohol Conversion Factor (Hi 96813 Only)

    TO CHANGE POTEN TO CHANGE POTENT T T T T IAL ALCOHOL CONVERSION FACTOR (HI 96813 TO CHANGE POTEN IAL ALCOHOL CONVERSION FACTOR (HI 96813 IAL ALCOHOL CONVERSION FACTOR (HI 96813 IAL ALCOHOL CONVERSION FACTOR (HI 96813 only only only only) ) ) ) ) TO CHANGE POTEN TO CHANGE POTEN...
  • Page 14: Error Messages

    ERROR MESSAGES ERROR MESSAGES ERROR MESSAGES ERROR MESSAGES ERROR MESSAGES r c s . e r “ “ r u r t . t n r o r s i s , s t L “ “ l p s b i l o i t H “...
  • Page 15: Battery Replacement

    WARRANTY WARRANTY WARRANTY HI 96811, HI 96812, HI 96813 and HI 96814 are warranted for two years against defects in workmanship and materials when used for its intended purpose and maintained according to the instructions. This warranty is limited to repair or replacement free of charge.
  • Page 16 SALES AND TECHNICAL SERVICE CONTACTS SALES AND TECHNICAL SERVICE CONTACTS SALES AND TECHNICAL SERVICE CONTACTS SALES AND TECHNICAL SERVICE CONTACTS SALES AND TECHNICAL SERVICE CONTACTS Australia: Tel. (03) 9769.0666 • Fax (03) 9769.0699 China: Tel. (10) 88570068 • Fax (10) 88570060 Egypt: Tel.
