Specifications - Gallien-Krueger Backline 112 Owner's Manual

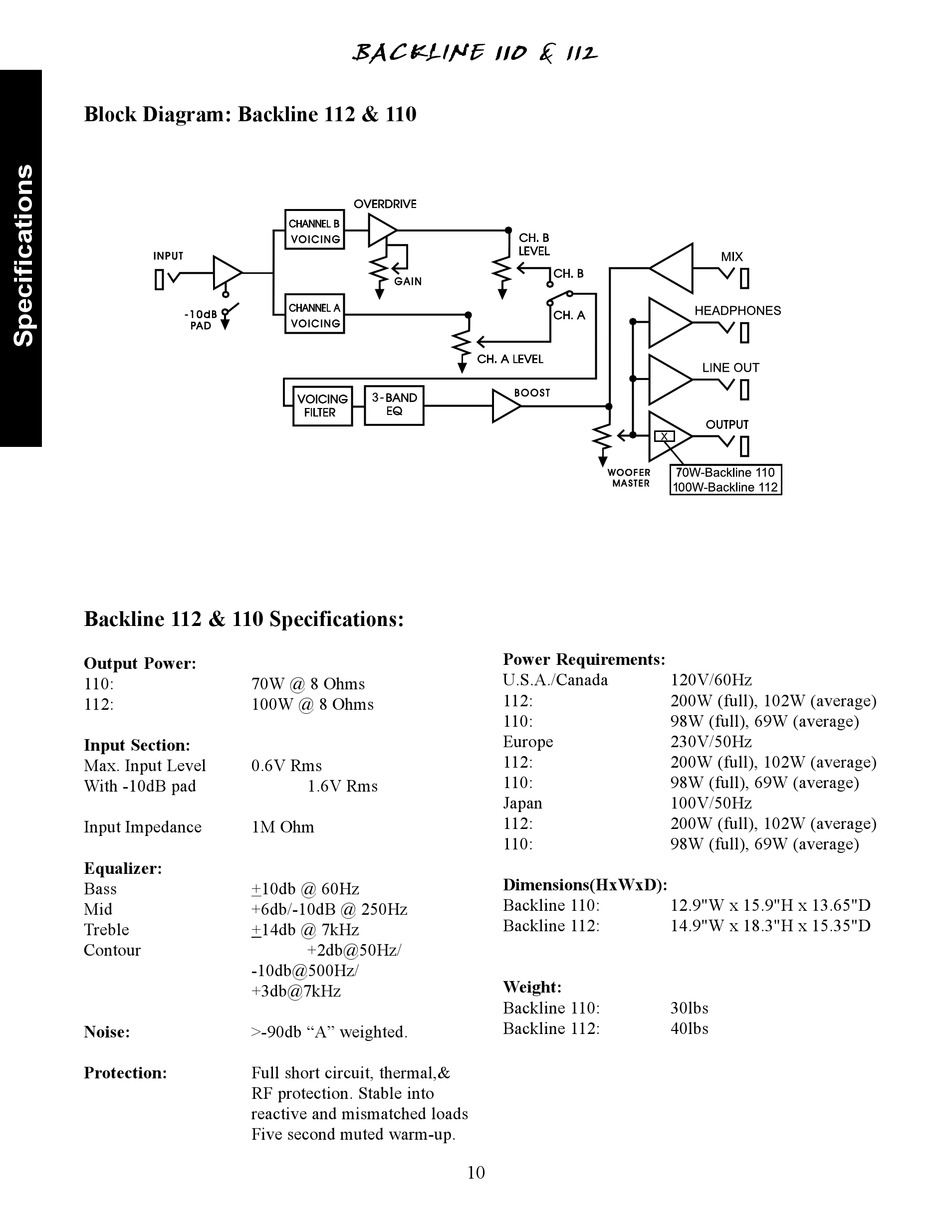

Block Diagram: Backline 112 & 110
Backline 112 & 110 Specifications:
Output Power:
110: 70W @ 8 Ohms
112: 100W @ 8 Ohms
Input Section:
Max. Input Level 0.6V Rms
With -10dB pad
Input Impedance 1M Ohm
Equalizer:
Bass +10db @ 60Hz
Mid +6db/-10dB @ 250Hz
Treble +14db @ 7kHz
Contour
-10db@500Hz/
+3db@7kHz
Noise: >-90db "A" weighted.
Protection: Full short circuit, thermal,&
RF protection. Stable into
reactive and mismatched loads
Five second muted warm-up.
B B B B B A C K A C K A C KLINE 110 & 112 A C K LINE 110 & 112 LINE 110 & 112 LINE 110 & 112
A C K LINE 110 & 112
1.6V Rms
+2db@50Hz/
10
Power Requirements:
U.S.A./Canada 120V/60Hz
112: 200W (full), 102W (average)
110: 98W (full), 69W (average)
Europe 230V/50Hz
112: 200W (full), 102W (average)
110: 98W (full), 69W (average)
Japan 100V/50Hz
112: 200W (full), 102W (average)
110: 98W (full), 69W (average)
Dimensions(HxWxD):
Backline 110: 12.9"W x 15.9"H x 13.65"D
Backline 112: 14.9"W x 18.3"H x 15.35"D
Weight:
Backline 110: 30lbs
Backline 112: 40lbs
