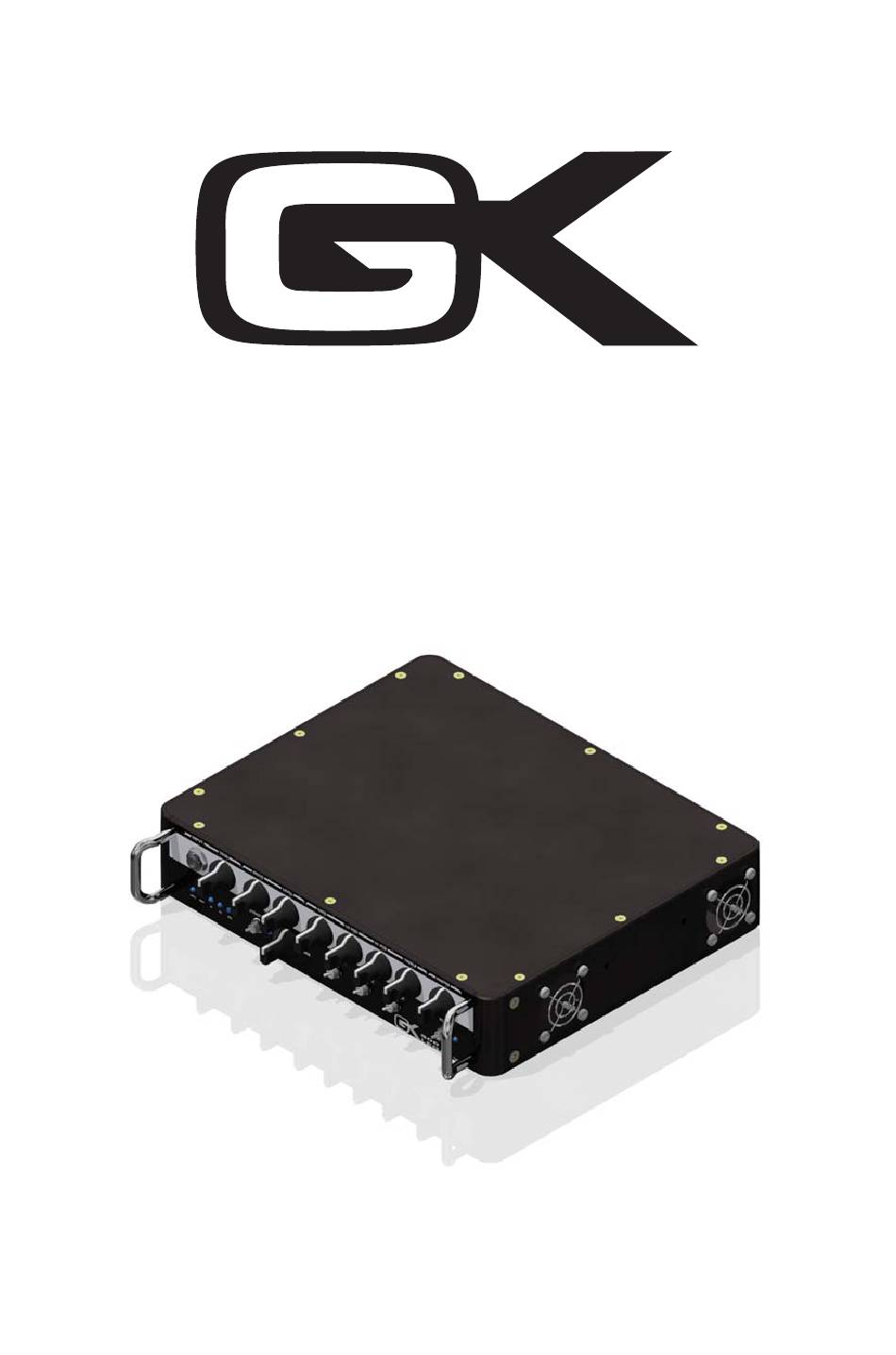

- Page 1 LEGACY SERIES OWNER’S MANUAL PART # 160-0960-A...
- Page 2 Instead, I believe new and old problems are If your Legacy Series amplifier did not come best solved with new solutions. Having taken with all the items listed, or if you encounter our own path, GK products enjoy a unique,...
- Page 3 LEGACY SERIES Table Of Contents Safety Instructions __________________________ 4 Safety Information __________________________ 5 Quick Start ________________________________ 6 Front Panel Features ________________________7 Rear Panel Features _________________________8 Installation and Maintenance __________________9 Specifications ______________________________10 *All Features and specifications are subject to change without notice Please read the Safety Information section on page 4 and installation instructions on page 9 before continuing.
- Page 4 L E G A C Y S E R I E S L E G A C Y S E R I E S trim / voice trim / voice comp / on comp / on out / release out / release drive / on drive / on level / body...
-
Page 5: Safety Information
LEGACY SERIES Safety Information accessible. If you do not intend to use the Please read all enclosed safety precautions amplifier for a considerable length of time, disconnect the plug from the AC mains before connecting or operating this product. socket. Do not use an extension cord. -
Page 6: Front Panel Features
L E G A C Y S E R I E S L E G A C Y S E R I E S 10 11 12 13 14 Front Panel Features Input: ¼” analog input to receive OC: Indicates unit is experiencing a fault instrument signal. -
Page 7: Rear Panel Features
L E G A C Y S E R I E S L E G A C Y S E R I E S AC INPUT BALANCE OUT PATCH BAY SPEAKER TUNER RETURN 100 - 240, 60/50 Hz PHONES DIRECT OUT POWER PIN 1 SOURCE... - Page 8 Place the Mute in the up position. marked SPEAKER using a standard two Turn the Master up as you play until the conductor speakon cable or Gallien-Krueger desired volume is reached. If distortion is four conductor speaker cable. Using the...
- Page 9 LEGACY SERIES Installation Packaging: The carton and packing To insure proper operation and to avoid materials used in shipping your new potential safety hazards, place the unit on a firm, level surface. amplifier were specifically designed to cushion it from the shocks and vibration that occur during transport.
- Page 10 LEGACY SERIES Output Power: Cooling: Two 40X40X20 mm Variable Speed Fan Legacy 500: 12Vdc, 1.6Watt Per Fan 190W @ 1% THD+N, 8Ω 8500 RPM 10.91 CFM / FAN 300W @ 1% THD+N, 4Ω 450W @ 1% THD+N, 2.7Ω Dimensions: (HxWxD): 300W @ 1% THD+N, 2Ω...
