FUSION S SERIES
OWNER'S MANUAL
FUSION 500S
FUSION 800S
FUSION 1200S
PART # 160-1210-A

Advertisement

loading
Need help?

Need help?

Do you have a question about the FUSION S Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Gallien-Krueger FUSION S Series

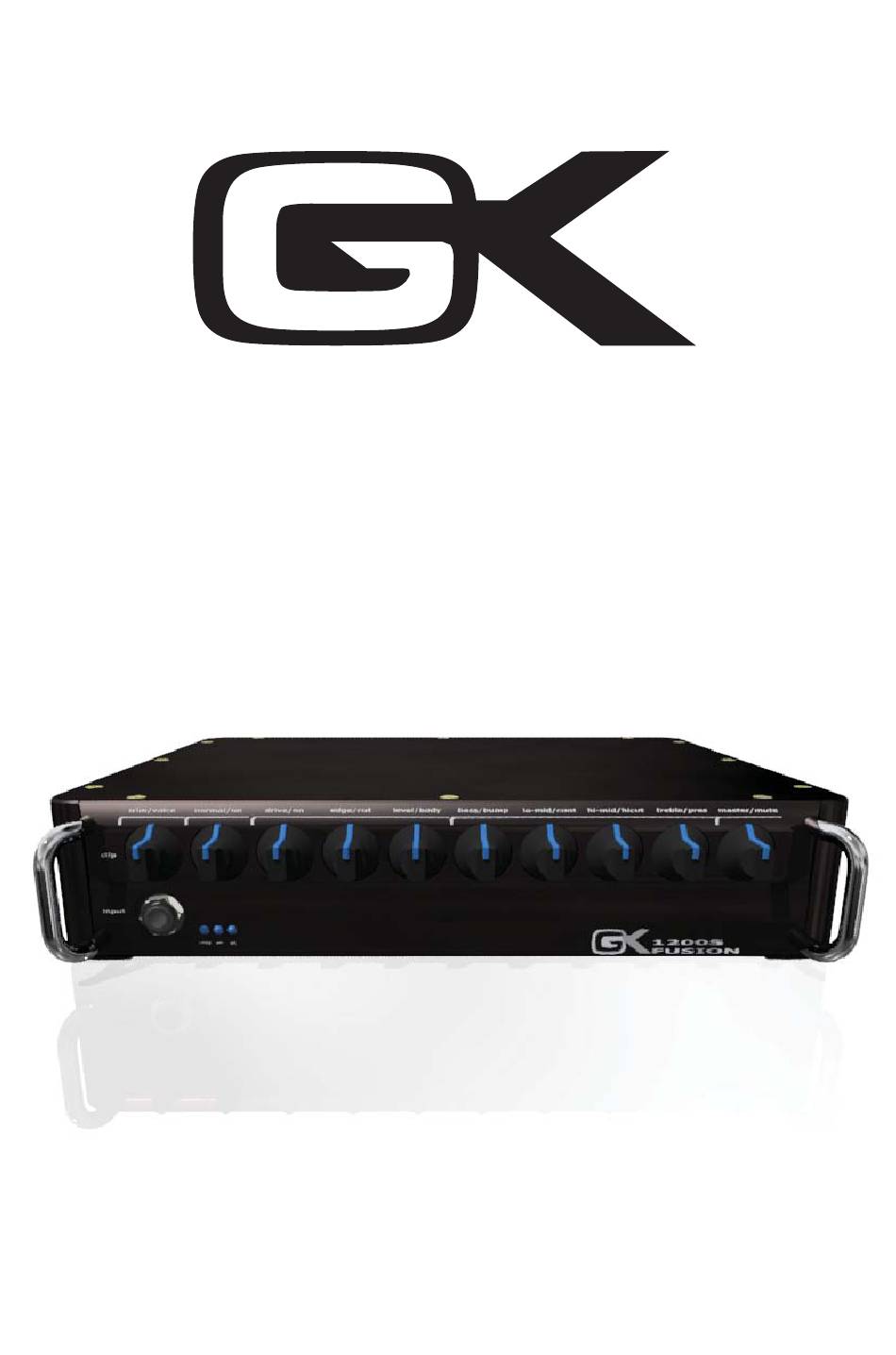

  • Page 1 FUSION S SERIES OWNER’S MANUAL FUSION 500S FUSION 800S FUSION 1200S PART # 160-1210-A...
  • Page 2 Foot Switch Cable Having supported my products for over fifty years, I have learned from the story If your Fusion S Series amplifier did not come they tell. Gallien-Krueger is a reflection of with all the items listed, or if you encounter...
  • Page 3 FUSION S SERIES Table Of Contents Safety Instructions __________________________ 4 Safety Information__________________________ 5 Front Panel Features ________________________ 6 Rear Panel Features ________________________7 Quick Start _______________________________8 Installation and Maintenance __________________9 Specifications _____________________________10 *All Features and specifications are subject to change without notice Please read the Safety Information section on page 4 and installation instructions on page 9 before continuing.
  • Page 4 F U S I O N S S E R I E S F U S I O N S S E R I E S trim / voice trim / voice comp / on comp / on out / release out / release drive / on drive / on...
  • Page 5 FUSION S SERIES Safety Information accessible. If you do not intend to use the Please read all enclosed safety precautions amplifier for a considerable length of time, disconnect the plug from the AC mains before connecting or operating this product.
  • Page 6 F U S I O N S S E R I E S F U S I O N S S E R I E S Trim/Voice: Adjusts the level of signal Lo-Mid/Cont: Boosts or cuts low-mid from the 1/4” input. The knob indicator frequencies.
  • Page 7 F U S I O N S S E R I E S F U S I O N S S E R I E S 05 06 AC INPUT BALANCE OUT PATCH BAY SPEAKER TUNER RETURN OUTPUTS IN PARALLEL 100 - 240, 60/50 Hz PHONES DIRECT OUT...
  • Page 8 FUSION S SERIES Quick Start: These directions will take turn tone and volume controls all the way you through the basics and give you a good start for setting up your sound. Connect your speakers: Connect your Level and Master Volume settings:...
  • Page 9 FUSION S SERIES Installation Packaging: The carton and packing To insure proper operation and to avoid potential safety hazards, place the unit on a materials used in shipping your new firm, level surface. amplifier were specifically designed to cushion it from the shocks and vibration that occur during transport.
  • Page 10 FUSION S SERIES Output Power: Amplifier Protection: Full short circuit, Fusion 500S: thermal and RF protection. Stable into reactive 180W @ 1% THD+N, 8Ω and mismatch loads. 15 seconds muted warm-up. 300W @ 1% THD+N, 4Ω Cooling: Two 40X40X20 mm Variable Speed Fans 450W @ 1% THD+N, 2.7Ω...
