Mount the stud bolt to the main unit.
Insert the main unit into the mounting sleeve until it
locks in place.
Fasten the rear of the main unit using either method [A]
or [B].
Some automobiles may be equipped to secure the back of the main
unit using the stud bolt and supplied rubber support.
Select method [A] or [B] to suit the interior configuration of the
vehicle.
Install the bezel on the main unit.

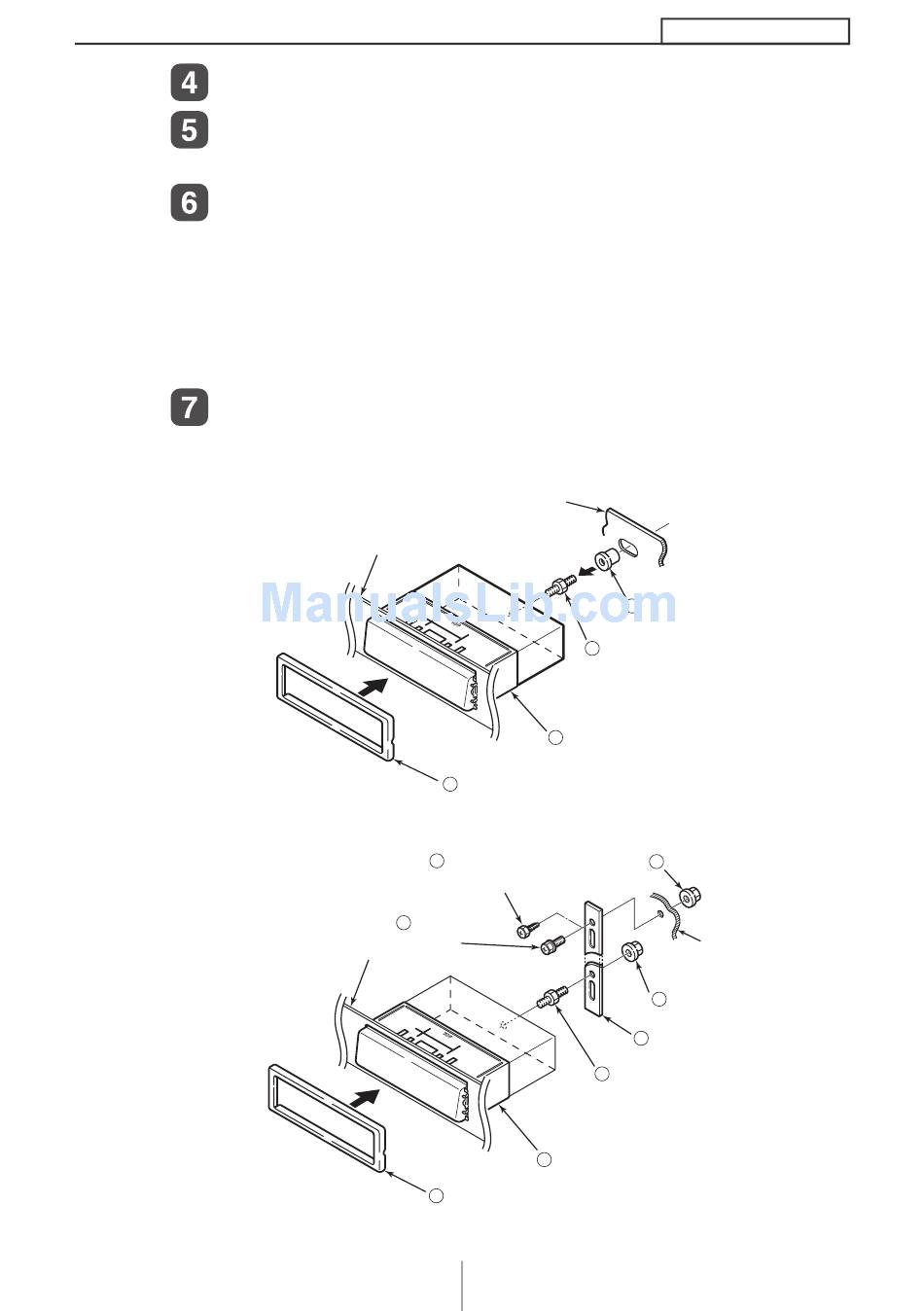

[A]
DASH BOARD
OR CONSOLE BOX
[B]
DASH BOARD
OR CONSOLE BOX
METAL OF
VEHICLE
2 MOUNTING SLEEVE
BEZEL
5
SELF TAPPING
7
SCREW (6 x 16mm)
HEX-HEAD
11
BOLT
(6 x 20mm)
2
MOUNTING SLEEVE
5
BEZEL
111
Mounting instruction
6 BUSHING
STUD BOLT
8
NUT (6mm)
13
METAL OF
VEHICLE
NUT (5mm)
12
REAR BRACKET
4
STUD BOLT
8
