Eclipse CD7100 Installation Manual page 9

System connection e
System connection e
• • Never cut the insulation on the power wire or use it to power any other equipment. If the rated current
capacity of the power wire is exceeded, fire and electric shocks may result.
• • The wires should be secured with tape or a similar securing method to prevent any obstructions while
driving. If they get wound or entangled around components such as the steering wheel, shifting lever,
or brake pedal, accidents may result.
• • If removing the end of the wire to connect to another wire, be sure to wrap PVC tape or a similar wire
insulating method around the connection to insulate it. If the connection is not insulated, fire or
accidents may result.
Tip
• • Install and connect all of the peripheral equipment before connecting them to the main unit.
• • Do not remove any of the protective caps (RCA, etc.) unless in use.
• • Be sure to wrap the connection wires with tape (PVC tape) to insulate them.
• • Adjust the external amplifier's input level.

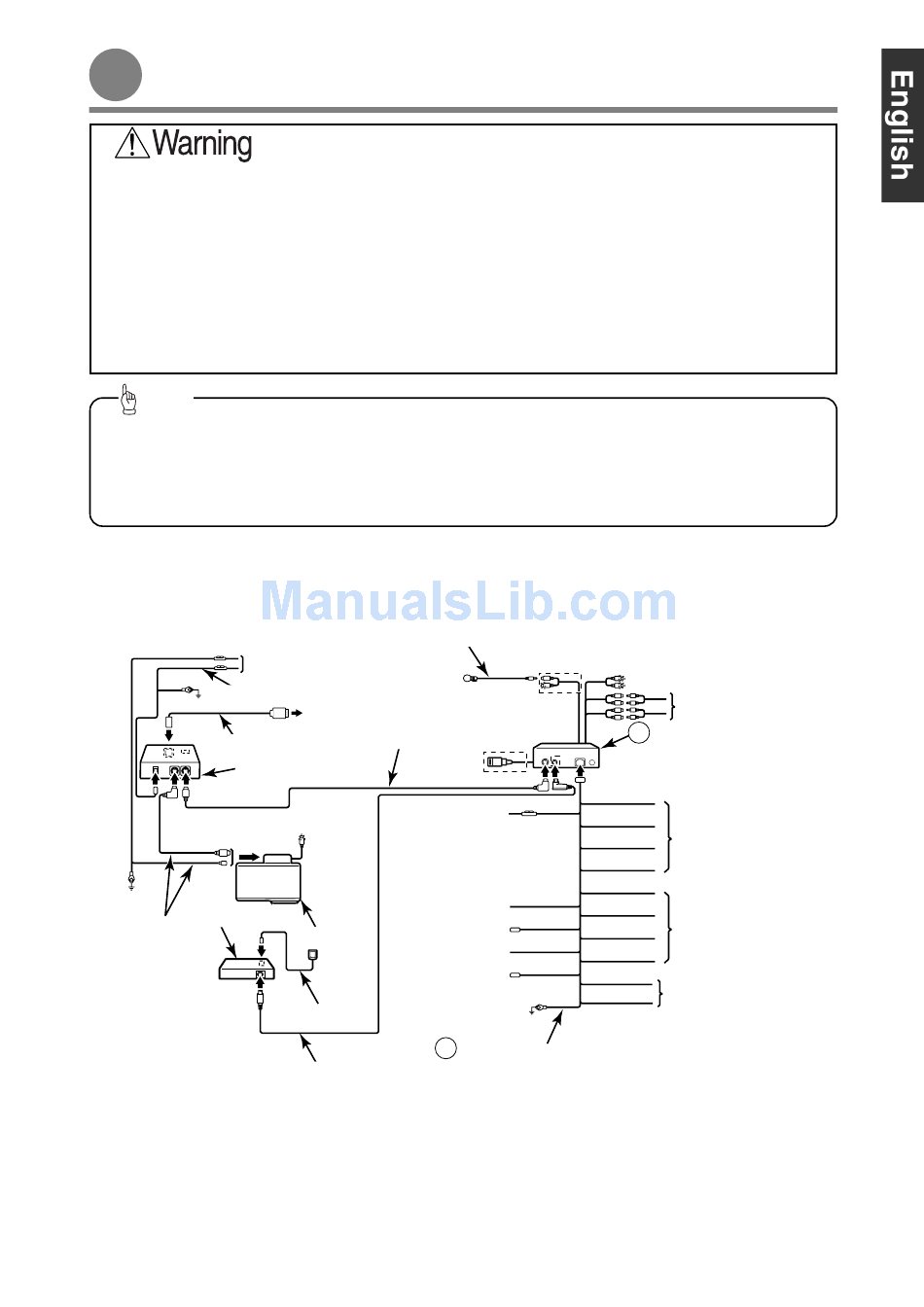

1) CD7100 (CD5100 or CD3100) + iPC106 + CH3083 + MEI100 + GPS105 + Power Amplifer
TO BATTERY+12V
(Permanent Supply)
INTERCONNECTING WIRES
(supplied with iPC106)
TO GROUND
INTERCONNECTING WIRES
(supplied with iPC106)
iPC106
(sold separately)
2P
13P
13P
NO CONNECTION
(Do not remove cap)
13P
2P
TO GROUND
GPS105
(sold separately)
INTERCONNECTING
WIRES
(supplied with CH3083)
• • THE CD3100 IS NOT EQUIPPED WITH THE CONNECTORS INDICATED BY
MEI100 : The MEI100 cannot be connected to the CD5100.
(sold separately)
To iPod
INTERCONNECTING WIRES
(supplied with iPC106)
TO USB DEVICE
TO BATTERY+12V
(Permanent Supply)
TO ACC (Power Supply)
TO POWER ANTENNA
CH3083 RELAY (Supply)
(sold separately)
TO HEAD LIGHT SWITCH
(Illumination (+) )
TO TURN-ON WIRE OF
EXTERNAL EQUIPMENT
GPS ANTENNA
(supplied with GPS105)
2
INTERCONNECTING WIRES
(supplied with GPS105)
xample
xample
L SIDE
*
NO CONNECTION
(Do not remove cap)
*
*
8P
13P
16P
White
Yellow
White/Black
Gray
Gray/Black
Green
Red
Green/Black
Blue
Purple
Orange/White
Purple/Black
Blue/White
Brown
(Supply)
Brown/Black
Black
TO GROUND
INTERCONNECTING WIRES
(Power and speaker connector)
*
.
- 9 -
NO CONNECTION (Do not remove cap)
TO SIGNAL INPUT OF AUXLIARY
POWER AMPLIFIER
1 MAIN UNIT
INSULATE EACH WIRE WITH NONE
CONDUCTING TAPE SUCH AS
PLASTIC TAPE OR ANOTHER
INSULATING METHOD
INSULATE EACH WIRE WITH NONE
CONDUCTING TAPE SUCH AS
PLASTIC TAPE OR ANOTHER
INSULATING METHOD
TO STEERING REMOTE CONTROL
